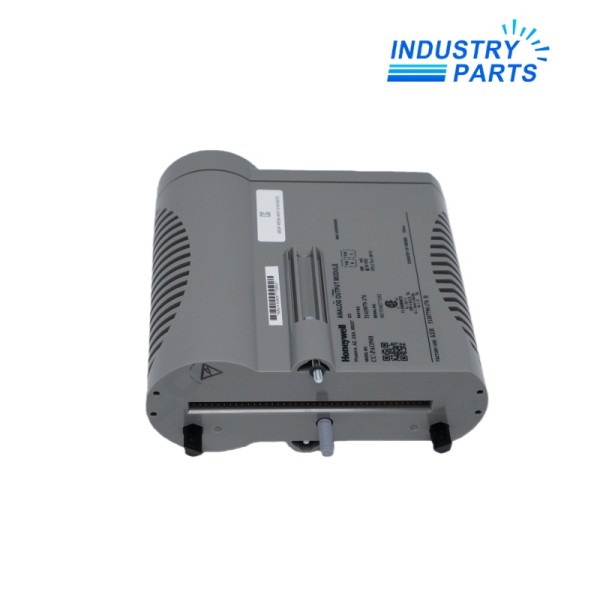

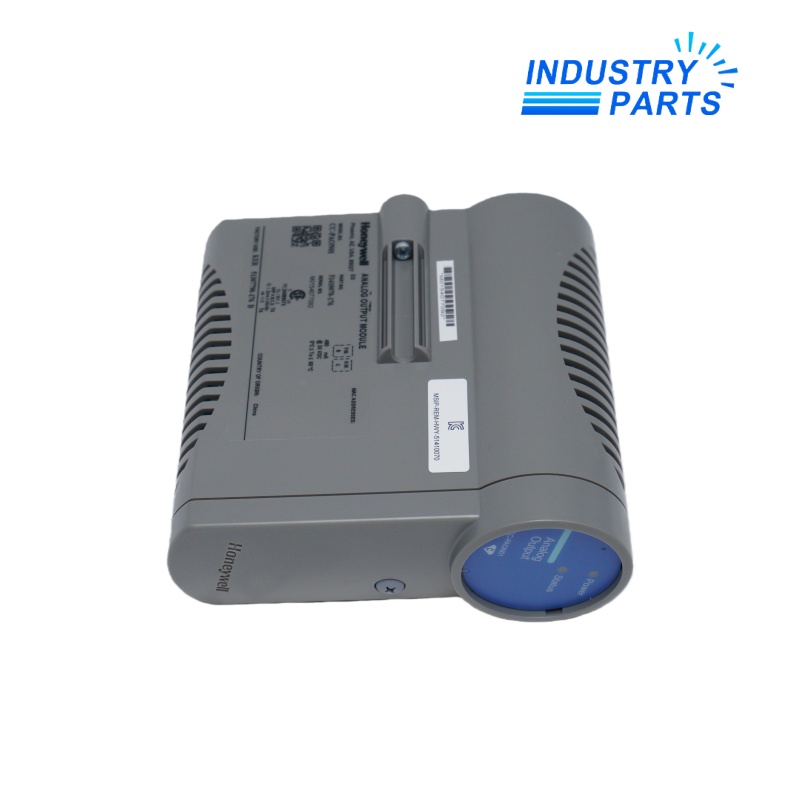

Honeywell CC-PAON01 51410070-176 Analog Output Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-PAON01 51410070-176 Analog Output Module
- Item NO.3537518
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-02-06
- Honeywell Analog Output Module
51410070-176
Key Information
51410070-176 is the part number for the Honeywell CC-PAON01 High-Level Analog Output Module, designed for the Experion PKS C300 Series C control platform. It provides 16 independent output channels, converting digital control signals into precise 4‑20 mA current signals for field actuators such as control valves, positioners, and variable speed drives.
The module supports 16-bit D/A conversion with a calibrated accuracy of ±0.35% of full scale at 25°C, ensuring precise control of critical process loops. It features extensive self-diagnostics, output readback capability, per-channel open-circuit detection, and configurable fail-safe behavior.
The CC-PAON01 is a non-HART analog output module (N = Non-HART), distinguishing it from the HART-enabled CC-PAOH01 variant. It is compatible with the C300 controller and requires a dedicated IOTA such as CC-TAON01 or CC-TAON11.
- Honeywell Experion PKS Series C
- 16-channel analog output
- Non-HART variant
- 16-bit D/A conversion
- CC-TAON01/11 IOTA required
Functions
Signal conversion & control
- Digital-to-analog conversion — Receives digital control signals from the C300 controller and converts them to precise 4‑20 mA analog outputs using 16-bit D/A conversion technology.
- 16-channel high-density output — Provides 16 independent output channels in a compact module, optimizing rack space for large I/O configurations.
- Output readback — Monitors actual output current and reports back to the control system for verification and diagnostics, improving control loop reliability.
Diagnostics & protection
- Extensive self-diagnostics — Built-in diagnostic capabilities continuously monitor module health and channel status for proactive maintenance.
- Open-wire detection — Each output channel includes open-circuit detection to identify field wiring faults, reducing troubleshooting time.
- Configurable fail-safe behavior — Per-channel FAILOPT configuration allows HOLD LAST VALUE or SHED to SAFE VALUE on failure, ensuring process safety.
Specifications
Electrical & performance
| Manufacturer | Honeywell Process Solutions |
| Model | CC-PAON01 |
| Part Number | 51410070-176 |
| Product type | Analog Output Module (Non-HART) |
| Output channels | 16 |
| Output type | 4-20 mA (current) |
| Resolution | 16-bit |
| Calibrated accuracy (25°C) | ±0.35% of full scale |
| Output current linearity | ±0.05% of full scale (nominal) |
| Output current range | 0 mA, 2.9 mA to 21.1 mA |
| Max resistive load | 800 Ω @ 24V |
| Max open circuit voltage | 22 V |
| Output ripple | < 100 mV p-p |
| Temperature drift | 0.005% of full scale per °C |
| Response time | Settles within 1% in < 80 ms |
| Power supply | 24 V DC |
Physical & environmental
| Mounting | Series C I/O rack / IOTA |
| IOTA (non-redundant) | CC-TAON01 |
| IOTA (redundant) | CC-TAON11 |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Hot-swap | Supported |
| Certifications | CE, UL, CSA |
| Country of origin | USA |
Installation
Proper installation of the CC-PAON01 analog output module ensures reliable signal generation and system stability.
Mounting & wiring guidelines
| Mounting position | Series C I/O rack |
| IOTA (non-redundant) | CC-TAON01 (required) |
| IOTA (redundant) | CC-TAON11 |
| Field wiring | Shielded twisted-pair cable recommended |
| Wire size | Up to 2.5 mm² (14 AWG) |
| Grounding | Single-point ground for cable shield |
| Power supply | 24 V DC (22-28 V DC recommended) |
- Install the CC-PAON01 in a clean, ventilated control cabinet (IP20) with ambient temperature within the specified operating range (0°C to +60°C).
- Use the appropriate IOTA (CC-TAON01 for non-redundant, CC-TAON11 for redundant configurations). The module plugs directly into the IOTA, which provides the terminal connections.
- When wiring field devices, ensure correct polarity for 4-20 mA current loops. The module provides terminals for each output channel.
- Verify total load resistance is within the specified range (max 800 Ω for current output at 24V).
- Observe proper cable shielding and single-point grounding to prevent EMI interference on analog signals.
Lifecycle
Active currently in production — fully supported
Product status: The CC-PAON01 (51410070-176) remains an active, supported product in Honeywell's Series C I/O portfolio. It continues to be the recommended non-HART analog output solution for new Experion PKS installations and system expansions.
Spare parts & support: Replacement units and accessories are available through Honeywell's standard support channels and authorized distributors. The Series C I/O family is designed for long‑term availability.
Replacement & migration:
- 16-channel high-density output
- Improved accuracy (±0.35% full scale)
- Enhanced diagnostics and open-wire detection
- Hot-swap support and redundant configuration options
Recommendation: For new Experion PKS analog output applications without HART requirement, the CC-PAON01 remains the recommended solution.
