Honeywell CC-PDIH01 51405041-176 Digital Input Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail

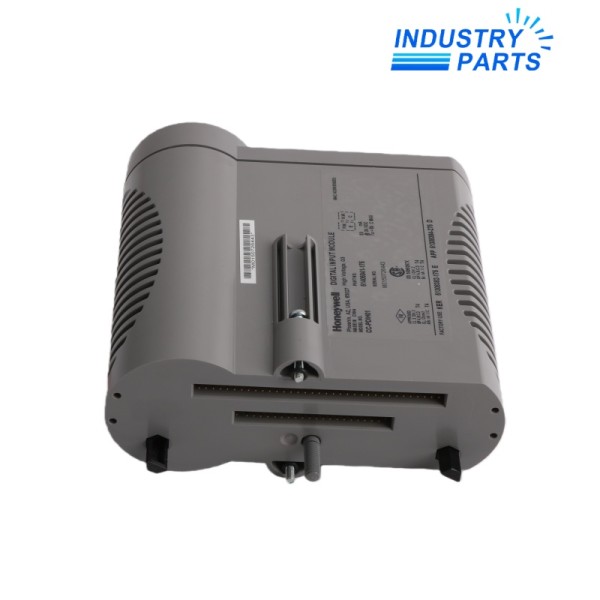

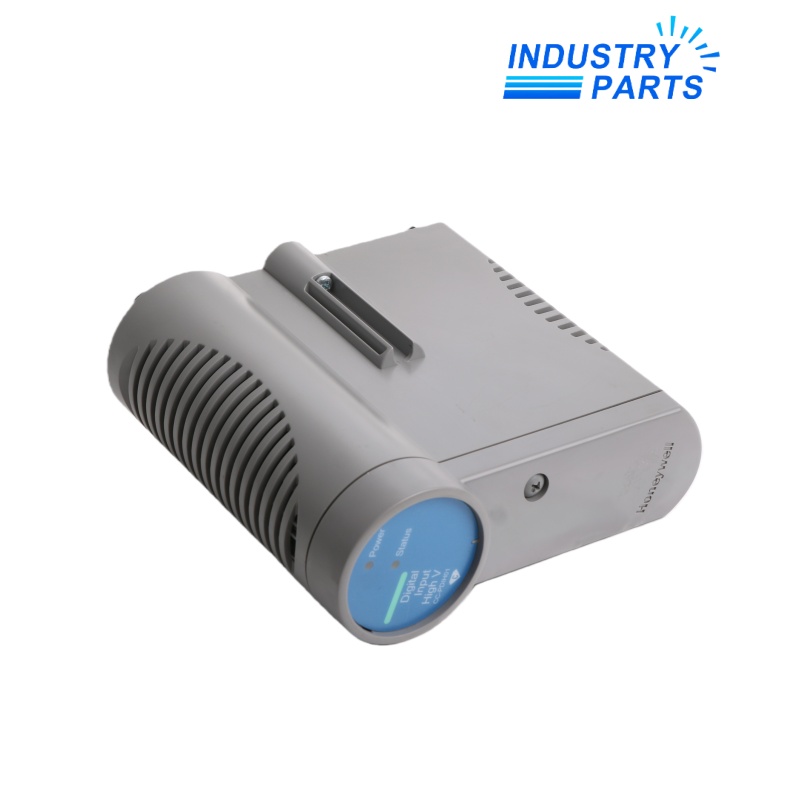

- Product NameHoneywell CC-PDIH01 51405041-176 Digital Input Module
- Item NO.CC-PDIH01
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-01-13
- 32-channel Honeywell Series C high-voltage digital input module for supported AC and DC IOTAs.
CC-PDIH01
32-channel Honeywell Series C high-voltage digital input module for supported AC and DC IOTAs.
Technical Summary
CC-PDIH01 is Honeywell's Series C high-voltage digital input module. It provides 32 input channels and uses different IOTAs to support 120 VAC, 125 VDC, proximity-input and 250 VAC applications.
The same IOM is paired with the appropriate IOTA for the required field-voltage arrangement.
Specifications
| Manufacturer | Honeywell |
|---|---|
| Model | CC-PDIH01 |
| I/O type | High-voltage digital input |
| Channels | 32 |
| 120 VAC / 125 VDC IOTAs | CC-TDI110 or CC-TDI120 |
| 120 VAC proximity IOTA | CC-TDI151 |
| 250 VAC IOTAs | CC-TDI220 or CC-TDI230 |
| AC frequency | 47 to 63 Hz |
| Input filter delay | 25 ms maximum; 10 ms for 125 VDC |
| Field-to-logic isolation | 1500 VAC RMS or ±1500 VDC |
| Isolation method | Optical |
| Weight | 0 (no public model-specific official value) |
Features
Honeywell documentation includes extensive diagnostics, direct or reverse input sense, galvanic isolation and optional redundancy for supported IOTAs. The CC-TDI151 proximity configuration is non-redundant.
Compatibility
Select the IOTA by field voltage and redundancy requirement. Honeywell lists CC-TDI110 as non-redundant 9-inch, CC-TDI120 as redundant 12-inch, CC-TDI151 as non-redundant 12-inch, CC-TDI220 as non-redundant 9-inch and CC-TDI230 as redundant 12-inch.
Replacement
Match CC-PDIH01 with the installed IOTA and system release. Verify field voltage, wiring, input sense, filter settings and redundancy configuration before returning the channel group to service.
FAQ
How many channels does CC-PDIH01 provide? Honeywell specifies 32 channels.
Can one IOTA cover all voltage types? No. The correct Honeywell IOTA must be selected for 120 VAC, 125 VDC, proximity or 250 VAC service.
