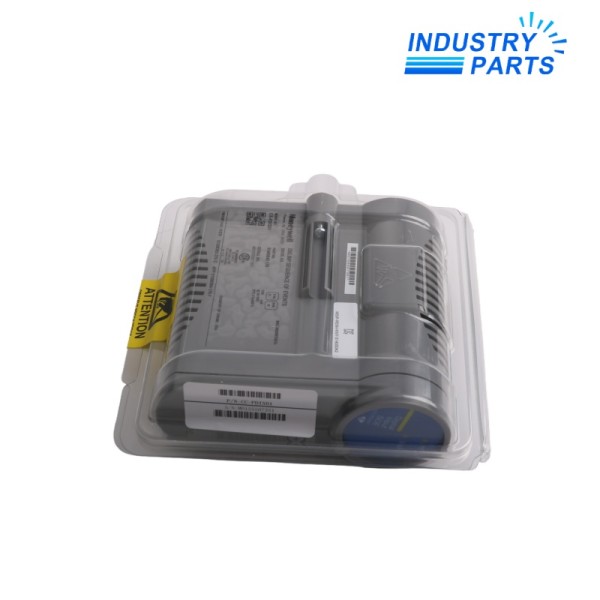

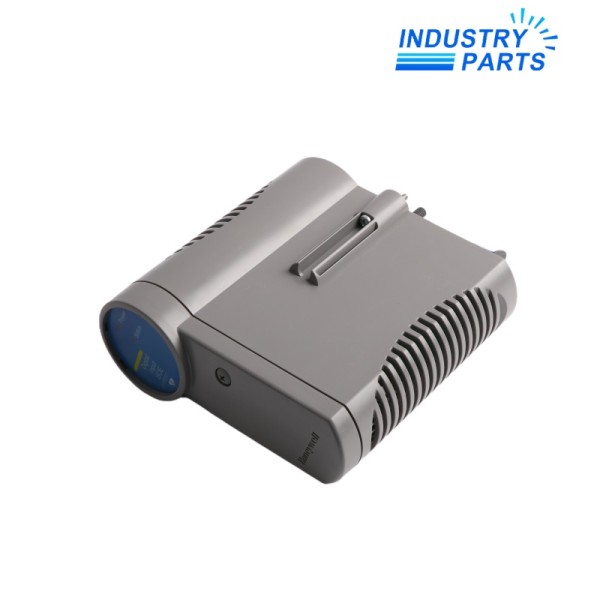

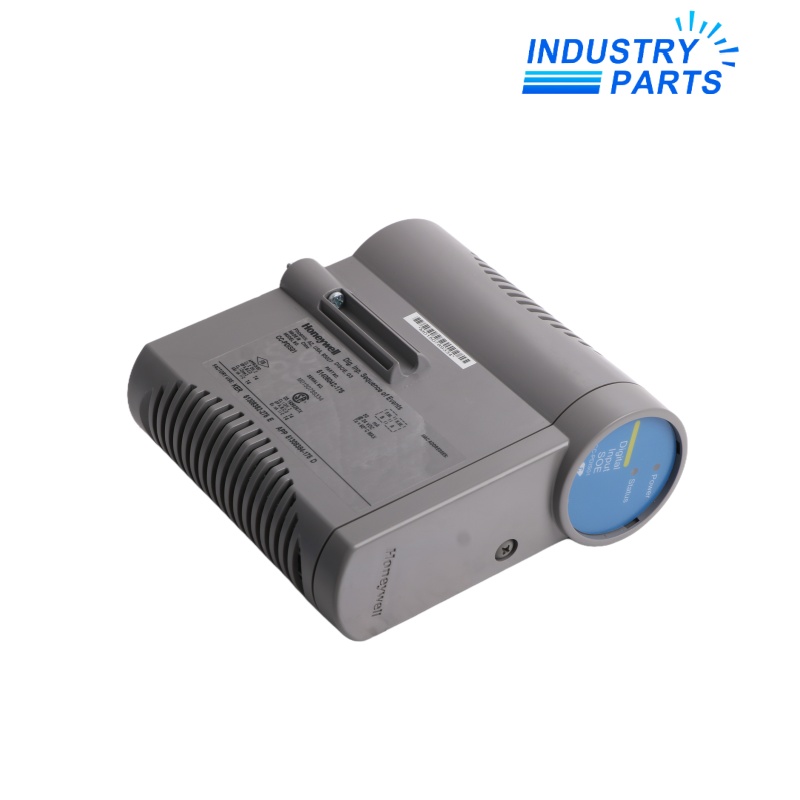

Honeywell CC-PDIS01 51405042-176 Digital Input Sequence of Events Module
A Series C digital input module that time-tags discrete events while maintaining the process-value scan required by the Experion control strategy.
Overview
Honeywell CC-PDIS01 51405042-176 is a Series C Digital Input Sequence of Events module for accepting 24 VDC discrete field signals in an Experion PKS architecture.
Its three documented modes separate normal acquisition, event recording and low-latency service: Normal uses a 20 ms PV scan, SOE adds 1 ms event resolution while retaining the 20 ms PV scan, and Low Latency uses a 5 ms PV scan.
The module also provides internal diagnostics, direct or reverse input indication, galvanic isolation and optional redundant operation. Open-wire detection is available in Normal mode only, so the configured mode belongs in the replacement record.
Specifications
Features
Event chronology
One-millisecond SOE resolution supports ordered review of fast discrete transitions.
Selectable acquisition behavior
Normal, SOE and Low Latency modes let the configured duty determine scanning behavior.
Input integrity diagnostics
Normal mode can detect an open field wire and mark the affected process value invalid.
Power and isolation choices
Internal or external field power selection, onboard excitation and optical galvanic isolation support the documented Series C installation.
Applications
Sequence-of-events capture
Time-ordering trip, permissive and equipment-state contacts within an Experion event record.
Fast discrete monitoring
Using the 5 ms PV scan where the approved control design requires lower input latency.
Redundant Series C I/O
Deploying the module with the specific redundant IOTA and system configuration named in the project.
Lifecycle
Capture
Record CC-PDIS01 51405042-176, IOTA model, slot assignment, configured operating mode and every channel label.
Control
Preserve field-power selection, direct or reverse indication, open-wire settings and the approved Experion database.
Verify
Inject documented OFF and ON states, then confirm channel status, scan behavior, SOE timestamps and controller alarms.
About IndustryParts
https://www.industryparts.com/Documented handling for CC-PDIS01 51405042-176
IndustryParts keeps the exact model, requested quantity, installed-system evidence and delivery record together so the proposed supply can be checked against the real application before dispatch.
FAQ
Which project records should accompany a CC-PDIS01 51405042-176 enquiry?
Include the IOTA identity, module revision, configured operating mode, channel list, field-power arrangement, controller release and clear label photographs.
Can CC-PDIS01 51405042-176 provide open-wire diagnostics while running in SOE mode?
Honeywell specifies open-wire detection for Normal mode only. Confirm the actual mode before treating open-wire annunciation as an acceptance requirement.
What timing evidence should be retained after replacing CC-PDIS01 51405042-176?
Keep the event-source test, controller timestamp comparison, observed 1 ms event ordering and the process-value scan mode used during verification.
How should a redundant CC-PDIS01 51405042-176 position be reviewed?
Match the IOTA, primary and secondary slot identities, redundancy configuration, firmware context and switchover test defined by the Experion project.
What prevents a standard 24 VDC input module from being treated as CC-PDIS01 51405042-176?
The SOE function, operating modes, diagnostic behavior and exact module identity must all be present; channel count and voltage alone do not establish equivalence.
