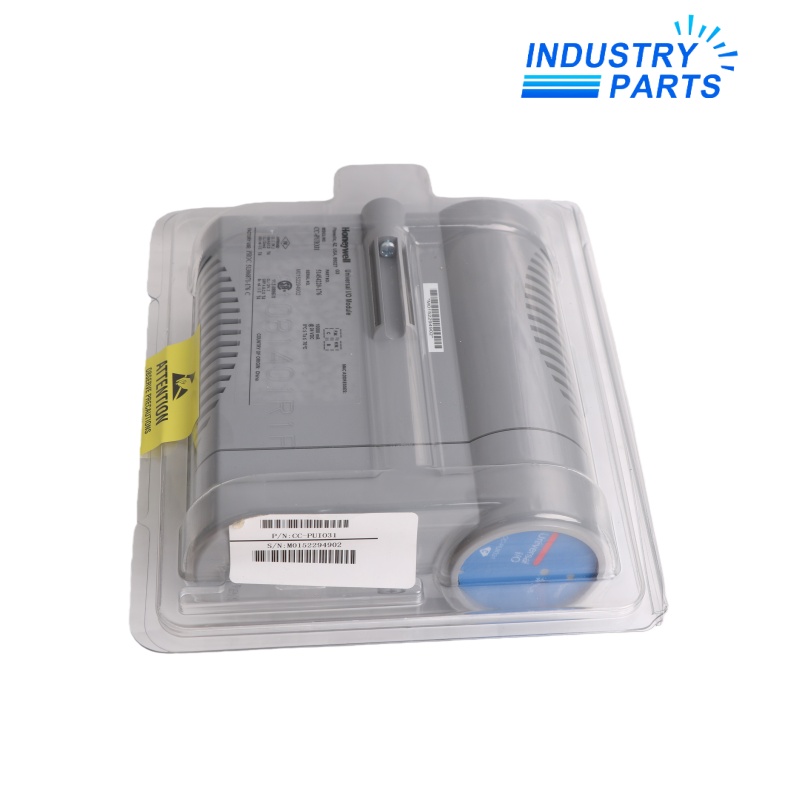

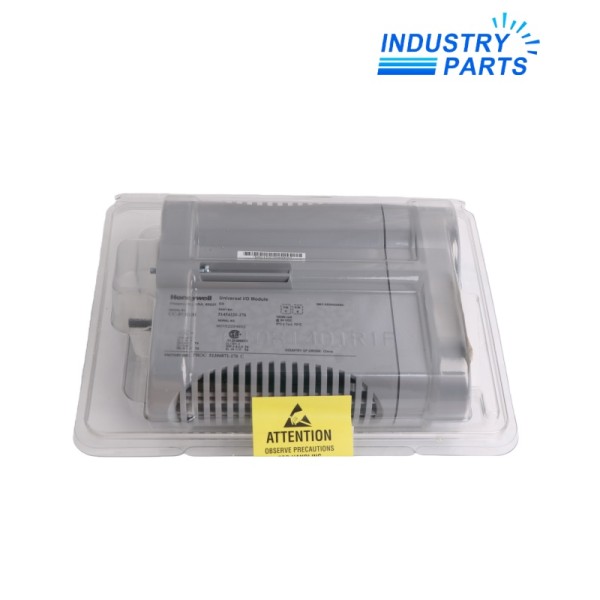

Honeywell CC-PUI031 Universal I/O Module

Honeywell CC-PUI031 Universal I/O Module

Item NO.: CC-PUI031
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-PUI031 Universal I/O Module
  • Item NO.CC-PUI031
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-12-01
  • Honeywell CC-PUI031 catalog page for the official CC-PUIO31 Series C Universal Process I/O Module.
Honeywell Universal Process I/O

CC-PUI031 · Universal Process I/O Module

Existing catalog title retained for Honeywell's software-configurable Series C Universal Process I/O module.

Product Identification

The existing website title uses CC-PUI031. Honeywell's official specification identifies the hardware as CC-PUIO31, with the letter O before 31.

Catalog field Identification
Existing page title Honeywell CC-PUI031 Universal I/O Module
Official Honeywell model CC-PUIO31
Manufacturer Honeywell
System family Experion Series C Universal Process I/O

Engineering Data

Parameter Official specification
Maximum channels 32
IOTAs CC-TUIO31 non-redundant 9-inch; CC-TUIO41 redundant 12-inch
Analog input 0-20 or 4-20 mA, 16 bit, 250-ohm input, 10 ms scan
AI accuracy 0.1% FS at 23.5±2°C; 0.175% from 0 to 70°C; 0.25% from -40 to 70°C
Analog output 4-20 mA, 12 bit, maximum 825-ohm load at 20 mA
AO accuracy Less than 0.35% FS at 25°C
AO response 80 ms with HART; 0.25 ms without HART
Digital input SOE 1 ms event resolution; 20 ms process-value update
Digital output Source type, electronically short-circuit protected, 1 mA-0.5 A per channel
Pulse input Any four channels; 0-15 kHz; 25 µs minimum pulse width
HART HART 7 on analog input and output, with one modem per channel
Module ambient -40 to +70°C

Functions

  • Assigns analog, digital or pulse behavior by software at the channel level.
  • Supports field-device diagnostics and open-wire detection where applicable.
  • Provides per-channel safe-state handling for output functions.
  • Enables late channel binding in Universal Process I/O cabinet designs.

Applications

Used where a common Series C hardware platform must accommodate mixed process signals and HART devices without fixing every channel type during early cabinet design.

Lifecycle

The backend model code is corrected to the existing catalog spelling without changing the page title. Verify the nameplate, IOTA, firmware, Experion release and channel configuration before replacement.
