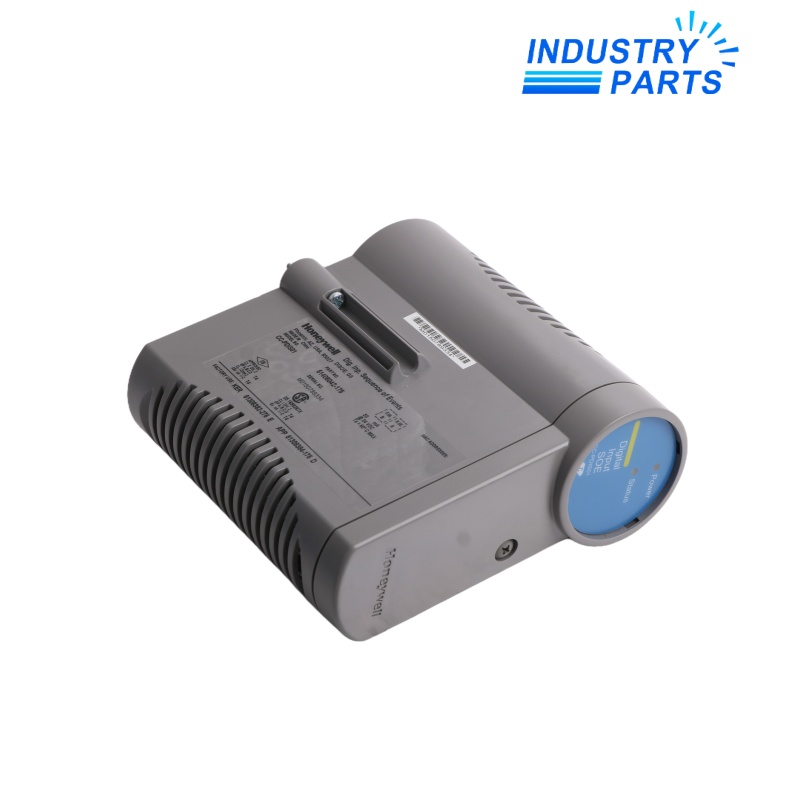

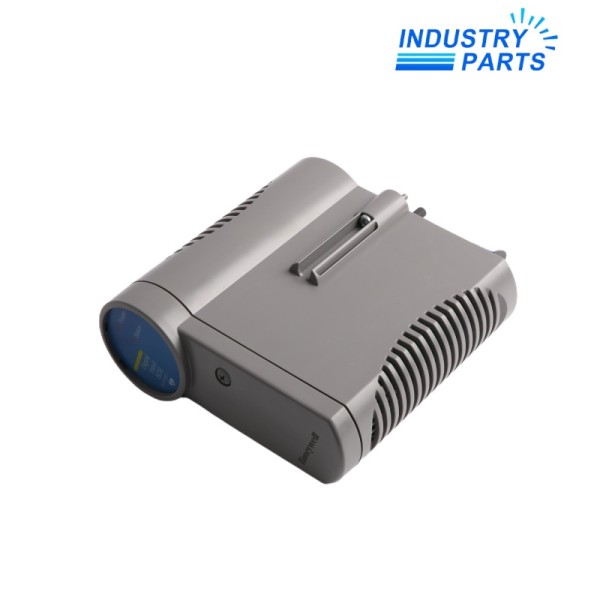

Honeywell CC-PUIO01 51454205-175 Universal Input Output Module

Honeywell CC-PUIO01 51454205-175 Universal Input Output Module

Item NO.: CC-PUIO01 51454205-175
Inquiry

Warranty: 1 year

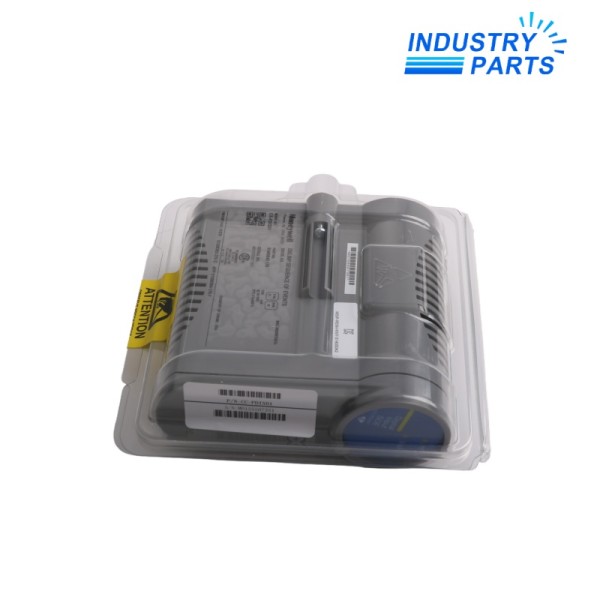

Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-PUIO01 51454205-175 Universal Input Output Module
  • Item NO.CC-PUIO01 51454205-175
  • Weight2.0000 kg = 4.4092 lb = 70.5479 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-10-28
  • Honeywell Universal Input Output Module

CC-PUIO01 | Honeywell Series-C Universal IO

Honeywell Honeywell Series-C Universal IO module with configurable AI/AO/DI/DO channels and 32-channel digital diagnostics.

Product Overview

  • Manufacturer: Honeywell
  • Model: CC-PUIO01
  • Reference document: Experion Series-C I/O Specification EP03-490-520, Revision 1.5
  • Function: Universal I/O; channel-level configurable AI, AO, DI, DO
  • Certified for non-incendive wiring in Zone 2 / Division 2 for protected channels

Performance

  • 32 configurable channels with channel roles selectable as AI, AO, DI, DO and pulse input channels 15-18.
  • Open Wire Detection for all channels where supported.
  • Fast Scan priority I/O mode.
  • Electronic short-circuit protection with per-channel Safe-state (FAILOPT) policy.
  • HART7 support for analog channels.
  • Extended temperature range: -40°C to +70°C.

Technical Details

Item Specification
Model capacity 32 channels per module.
Analog input 4-20 mA or 0-20 mA, 16-bit A/D, 50 ms input scan, input impedance 250 Ω.
Analog output 4-20 mA current loop; response time 2 ms DAC-to-output; max open-circuit 24 VDC.
Pulse input Channels 15–18, frequency 0-10 kHz, minimum pulse width 50 µs.
Digital input Typical OWD open-contact behavior with open-wire diagnostics in Series-C IO matrix.
IOTA compatibility CC-TUIO01 (12-inch) / CC-TUIO11 (18-inch).
Hazardous area support AI/AO/DI channels documented as suitable for non-incendive/wire-limited design in Z2/D2 conditions.
Use the full Honeywell model matrix and exact signal assignment from the official Series-C I/O user guide during configuration.

System Integration

  • Deploy in Series-C I/O cabinets in environments aligned with Honeywell Series-C sizing and topology rules.
  • Apply channel role allocation and FAILOPT settings in project-level configuration tools.
  • If replacing legacy channel types, validate system mapping and sequence of events for alarm behavior.

Applications

  • Analog and digital mixed I/O retrofits.
  • Plants needing flexible signal function conversion without changing racks.
  • Projects needing priority scans and diagnostics on channel health.
  • Instrumentation modernization for mixed I/O networks.

FAQ

What is the function of CC-PUIO01?

It is a configurable Series-C I/O module where each of 32 channels can be assigned as AI, AO, DI, or DO and supports pulse inputs.

Can CC-PUIO01 be used as a direct replacement for fixed AI/AO modules?

Only after end-to-end project-level revalidation. Function, scan class, and fail-safe behavior must be preserved.

Is HART supported?

Yes, HART7 support is listed for analog channel operation in this official specification.

Can I mix channel types in one module?

Yes; that is the core concept of CC-PUIO01: single-module mixed configuration per channel.

What is the best typo control for ordering?

Use exact code CC-PUIO01.
