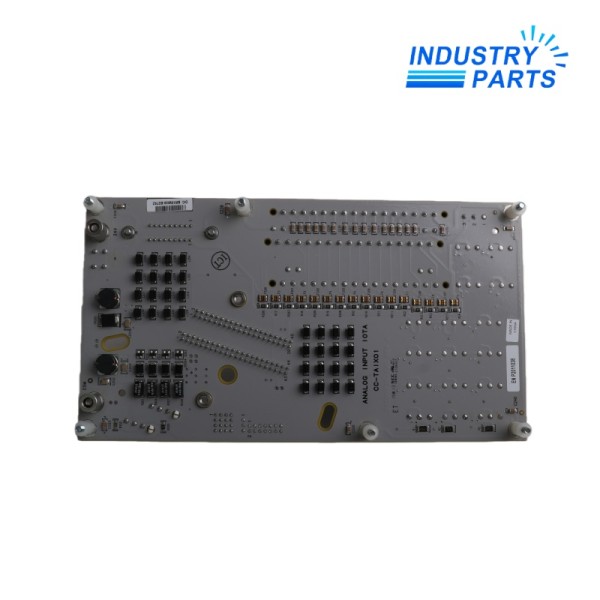

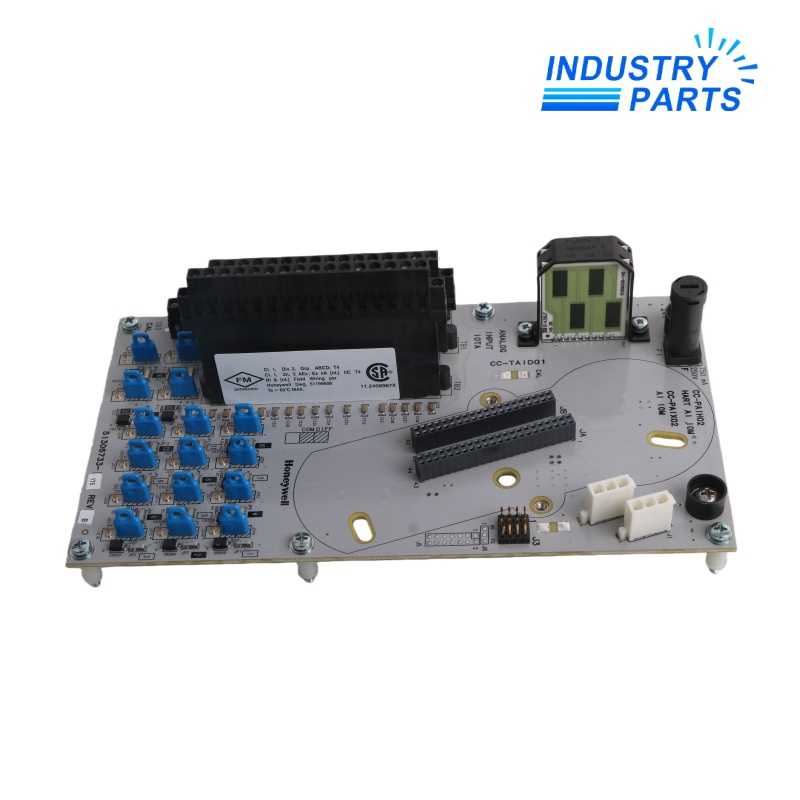

Honeywell CC-TAID01 51306733-175 Analog Input Module

Honeywell CC-TAID01 51306733-175 Analog Input Module

Item NO.: CC-TAID01
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-TAID01 51306733-175 Analog Input Module
  • Item NO.CC-TAID01
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-10-27
  • Honeywell CC-TAID01 non-redundant differential analog input IOTA for 16-channel Series C input configurations.
Honeywell Experion Series C I/O

Honeywell CC-TAID01 Non-Redundant Differential Analog Input IOTA

Honeywell CC-TAID01 non-redundant differential analog input IOTA for 16-channel Series C input configurations.

Product Profile

CC-TAID01 is a non-redundant Series C differential analog input IOTA. Its internal wiring arrangement supports differential measurement across channels 1 through 16 without custom field-side rewiring.

The IOTA can be paired with supported high-level analog input modules, with HART capability determined by the installed I/O module rather than by the termination assembly alone.

Technical Data

Manufacturer Honeywell
Model CC-TAID01
Component type Differential analog input IOTA
Configuration Non-redundant
Mechanical format 9-inch IOTA
Supported I/O modules CC-PAIH02 and CC-PAIX02
Differential inputs Channels 1 through 16
Supported signal families 4-20 mA, 1-5 V and 0-5 V by paired module
HART support Available with CC-PAIH02
Differential wiring Implemented internally by the IOTA

System Role

The assembly terminates analog field signals and presents the differential channel arrangement required by the Series C input module. It separates field wiring responsibilities from signal conversion and diagnostics performed in the I/O module.

Compatibility

  • Use CC-PAIH02 where HART communication is required
  • Use CC-PAIX02 for supported non-HART differential analog input applications
  • Do not substitute a standard current-input IOTA when all sixteen channels require differential wiring
  • Match the terminal plug-in assembly and cabinet design to the IOTA

Applications

Applied to process transmitters and voltage signals that require differential measurement within Experion PKS Series C cabinets. The selected input range, transmitter power arrangement and grounding practice must follow the project I/O design.

FAQ

Does CC-TAID01 provide HART by itself?
No. HART availability depends on the paired CC-PAIH02 module.
How many differential inputs are supported?
The IOTA supports differential wiring for channels 1 through 16.
Is this the redundant IOTA?
No. CC-TAID01 is the non-redundant 9-inch version.
