Honeywell CC-TAIN01 51306513-175 Analog Input I/O Module

Honeywell CC-TAIN01 51306513-175 Analog Input I/O Module

Item NO.: CC-TAIN01
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-TAIN01 51306513-175 Analog Input I/O Module
  • Item NO.CC-TAIN01
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2026-02-06

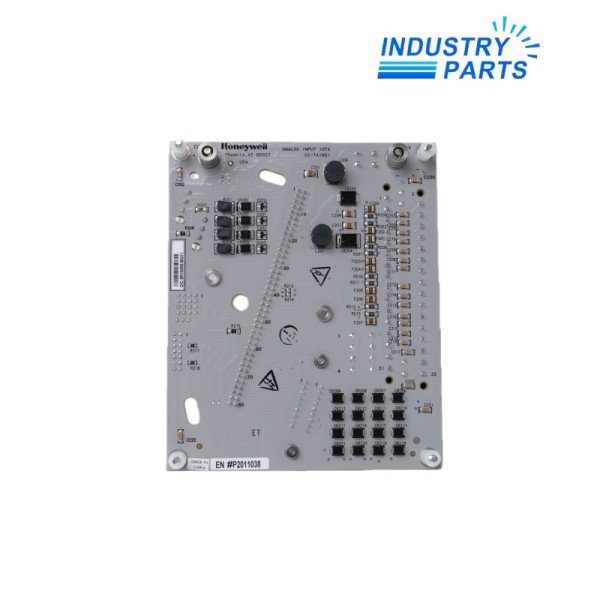

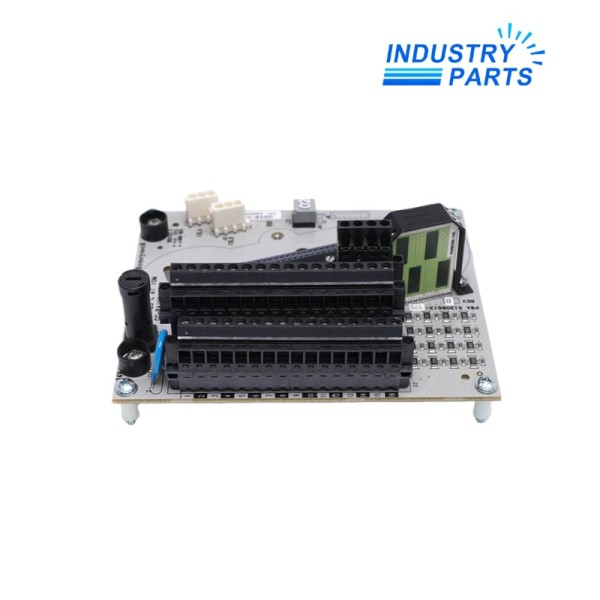

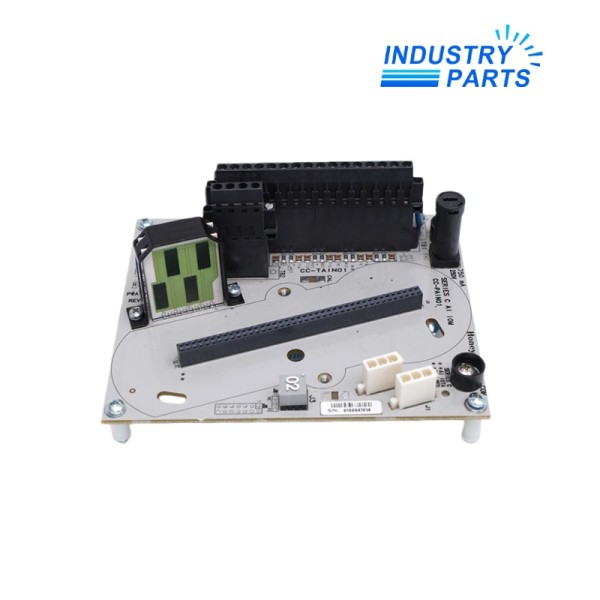

  • Honeywell Series C non-redundant 6-inch analog input IOTA for CC-PAIN01.
Honeywell Series C Analog Input IOTA

Honeywell CC-TAIN01 51306513-175 Analog Input I/O Module

A non-redundant 6-inch Series C IOTA used with the CC-PAIN01 high-level analog input module without HART.

Product Overview

CC-TAIN01 is the non-redundant 6-inch I/O Termination Assembly for Honeywell’s CC-PAIN01 Series C High-Level Analog Input module without HART.

The paired CC-PAIN01 / CC-TAIN01 assembly accepts high-level current inputs from two-wire or self-powered transmitters and provides sixteen single-ended channels.

Performance

  • Provides field termination for the CC-PAIN01 high-level analog input IOM.
  • Supports sixteen single-ended 4–20 mA channels in the documented assembly.
  • Supplies non-incendive field power without external marshalling power for the supported configuration.
  • Uses individually protected current-limiting circuits documented for Class I, Division 2 non-incendive use.
  • Supports a documented 50 ms scan time with the paired input module.

Technical Details

Parameter Official value
Model / part number CC-TAIN01 / 51306513-175
Assembly type Non-redundant 6-inch Analog Input IOTA
Paired IOM CC-PAIN01 High-Level Analog Input without HART
Input channels 16, all single-ended
Input type Current; 2-wire or self-powered transmitters
Input range 4–20 mA through 200 Ω
A/D resolution 16 bits in the paired IOM
Scan time 50 ms
Accuracy at 23.5 ± 2 °C ±0.075% of full scale for the paired input assembly
Accuracy from 0 to 60 °C ±0.15% of full scale for the paired input assembly
Common-mode rejection 70 dB, DC to 60 Hz with 500 Ω source imbalance
Normal-mode rejection at 60 Hz 20 dB
Input filter Single-pole RC, −3 dB at 6.0 Hz
Maximum normal-mode input ±30 V
Channel-to-channel crosstalk −60 dB

System Integration

Component Role
CC-TAIN01 Non-redundant 6-inch IOTA
CC-PAIN01 High-Level Analog Input IOM without HART
CC-TAIN11 12-inch IOTA used for the redundant arrangement

Do not substitute CC-TAIN01 for the HART IOTA used with CC-PAIH51. Confirm the exact IOM/IOTA pairing and terminal assignments before installation.

Applications

  • Non-redundant Series C 4–20 mA transmitter input cabinets.
  • Process measurements using two-wire or self-powered transmitters.
  • Replacement of a verified CC-TAIN01 / 51306513-175 termination assembly.
  • Projects requiring the CC-PAIN01 non-HART analog input path.

FAQ

Question Answer
Is CC-TAIN01 an IOM or an IOTA? It is the non-redundant 6-inch Analog Input IOTA; the paired IOM is CC-PAIN01.
How many channels does the paired assembly support? Sixteen single-ended 4–20 mA channels.
Does this pairing provide HART? No. CC-PAIN01 is the High-Level Analog Input without HART.
Which IOTA is used for the redundant arrangement? CC-TAIN11, the 12-inch IOTA.
Can it be paired with CC-PAIH51? No. CC-PAIH51 uses CC-TAIX51 or CC-TAIX61.
