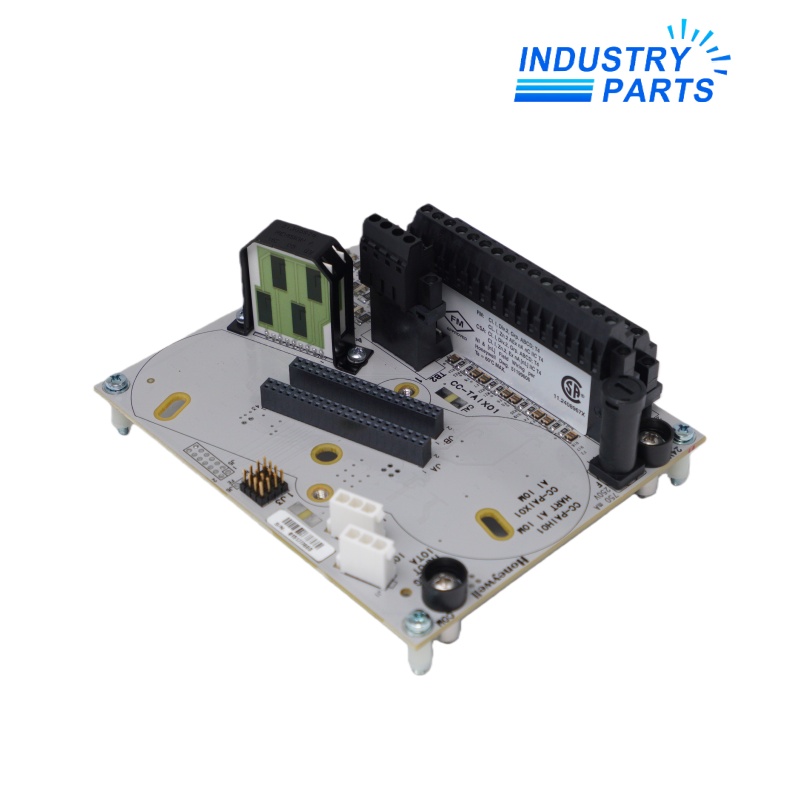

Honeywell CC-TAIX01 51308363-175 Analog Input Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-TAIX01 51308363-175 Analog Input Module
- Item NO.3491362
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-12-19
- Honeywell CC-TAIX01 51308363-175 six-inch non-redundant Series C analog-input IOTA for approved HART or non-HART analog-input modules.
Honeywell CC-TAIX01 51308363-175 Analog Input Module
Honeywell CC-TAIX01 51308363-175 six-inch non-redundant Series C analog-input IOTA for approved HART or non-HART analog-input modules.
Product Overview
Honeywell CC-TAIX01 is the six-inch, non-redundant Series C Analog Input I/O Termination Assembly. It provides the field termination and physical interface for approved high-level analog-input IOMs.
Honeywell lists CC-TAIX01 with CC-PAIH01 and CC-PAIH02 for HART-capable analog input, and with CC-PAIX01 and CC-PAIX02 for analog input without HART. HART and signal-processing capability come from the installed IOM rather than the IOTA alone.
The IOTA supports current and voltage field wiring arrangements defined for the paired module family. Jumper configuration, the input resistance path and differential-channel wiring must follow the selected IOM and project loop drawings.
Performance
- Provides a six-inch non-redundant termination platform for sixteen high-level analog-input circuits.
- Supports both HART-capable and non-HART IOM families through approved module pairing.
- Accommodates two-wire and self-powered transmitter wiring in the documented Series C arrangement.
- Supports voltage and current input wiring when the paired IOM and jumper configuration permit it.
- Carries the field-power conditioning and termination paths used by the complete analog-input assembly.
- Supports Series C diagnostics and fast scanning through the installed analog-input IOM.
Technical Details
| Model | CC-TAIX01 |
| Honeywell part number in existing title | 51308363-175 |
| Product form | Analog Input I/O Termination Assembly (IOTA) |
| Series | Experion Series C |
| Nominal IOTA size | 6 inches / 152 mm |
| Redundancy | Non-redundant |
| Redundant counterpart | CC-TAIX11, 12-inch redundant AI IOTA |
| Compatible HART IOMs | CC-PAIH01 and CC-PAIH02 |
| Compatible non-HART IOMs | CC-PAIX01 and CC-PAIX02 |
| System channel count with paired IOM | 16 total: 12 single-ended and 4 differential-capable |
| Supported system signal types | High-level voltage and current, subject to the installed IOM |
| Typical paired-IOM ranges | 0–5 V, 1–5 V, 0.4–2 V and 4–20 mA through the documented resistance path |
| Paired-IOM scan rate | 50 ms |
| Field connector capacity | Up to 12 AWG / 2.5 mm stranded wire |
| Critical wiring controls | Jumpers, resistance path, system common, differential wiring, shielding and field-power arrangement |
System Integration
Select the IOM according to the required communication and signal functions. CC-PAIH modules add HART capability, while CC-PAIX modules provide the non-HART high-level analog-input function.
Current and voltage service depend on the IOM configuration and IOTA jumper arrangement. For applicable voltage channels, the documented resistance-path jumper and low-side connection must be handled exactly as shown in the project wiring.
Commission the complete IOM-and-IOTA assembly in Experion. Validate channel range, engineering scaling, HART settings where applicable, diagnostic state, open-wire behavior and input quality.
Applications
- Termination for two-wire four-to-twenty-milliamp transmitters.
- Connections for self-powered current transmitters.
- High-level voltage inputs within the range supported by the installed IOM.
- HART analog-input loops when paired with a CC-PAIH module.
- Non-HART analog-input loops when paired with a CC-PAIX module.
- Non-redundant Series C cabinets requiring the six-inch analog-input IOTA.
Installation & Service
Mount and ground CC-TAIX01 according to the Series C IOTA procedure. Verify the IOM model, IOTA marking, field connector and cabinet location before landing any conductor.
Configure jumpers for the intended current, voltage or differential arrangement. Check system common, shield termination, loop power and field-wire polarity against the approved loop drawings.
After installing the IOM, verify module recognition and diagnostics. Inject or apply a traceable test signal to every commissioned channel and confirm range, scaling, alarms and communication where HART is used.
Lifecycle Planning
Record the CC-TAIX01 revision together with the installed IOM and loop-wiring configuration. The IOTA may remain in place during some module maintenance, but compatibility must always be confirmed before substitution.
For redundancy changes or module-family migration, review the physical IOTA, wiring, Experion release, HART requirements and required outage. CC-TAIX11 is the documented redundant counterpart rather than a direct drop-in change without engineering review.
FAQ
What is CC-TAIX01?
It is the six-inch non-redundant Series C analog-input I/O Termination Assembly.
Which IOMs can be installed?
Honeywell lists CC-PAIH01/02 for HART input and CC-PAIX01/02 for non-HART input.
Does the IOTA determine whether HART is available?
No. HART capability follows the installed CC-PAIH IOM and its channel configuration.
Can the assembly accept voltage and current signals?
Yes, when the paired IOM supports the selected range and the IOTA jumpers and wiring are configured correctly.
What is the redundant counterpart?
CC-TAIX11 is the documented twelve-inch redundant analog-input IOTA.
What should be checked after replacement?
Verify the IOM pair, jumpers, field wiring, loop power, signal range, scaling, diagnostics and HART behavior where applicable.
