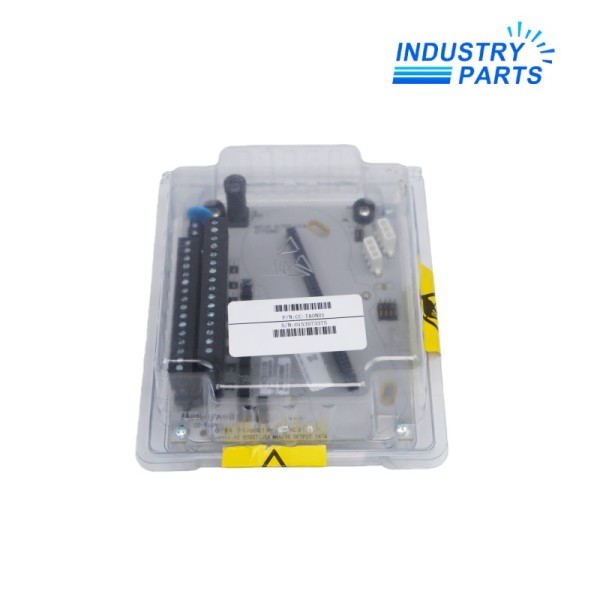

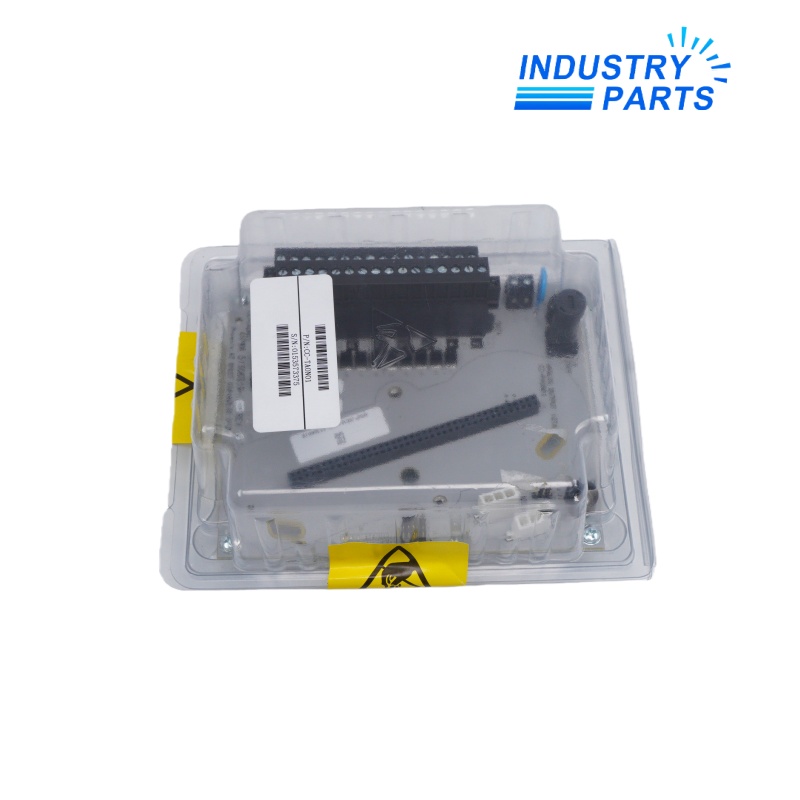

Honeywell CC-TAON01 51306519-175 Analog Output Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-TAON01 51306519-175 Analog Output Module
- Item NO.3535889
- Weight0.8000 kg = 1.7637 lb = 28.2192 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-02-03
- Honeywell Analog Output IOTA
- Experion PKS · C300 Series
CC-TAON01
Key Information
CC-TAON01 (Part No. 51306519-175) is an analog output IOTA from Honeywell's Experion PKS C300 Series I/O family. It provides the physical termination and interface for analog output signals, converting digital control commands from the C300 controller into precise analog signals for field actuators such as control valves, variable frequency drives, and positioners.
The CC-TAON01 is typically associated with the CC-PAON01 analog output module, acting as the termination assembly (IOTA) that provides the physical connection points for field wiring. It supports 4-20 mA current output with HART communication capability, enabling two-way digital communication with smart field devices.
As part of the C300 Series I/O architecture, the CC-TAON01 is designed for high-density installations, offering 8 channels of analog output in a compact form factor. It integrates seamlessly with Experion PKS systems via the C300 controller and Control Builder engineering tools.
- Analog output termination assembly
- 8 independent output channels
- 4-20 mA DC with HART support
- 16-bit resolution
- Non-redundant 6" module
Functions
Signal conversion & control
- Digital-to-analog conversion — Receives digital control signals from the C300 controller and converts them to precise 4‑20 mA analog outputs using 16‑bit D/A conversion technology.
- Multiple output ranges — Supports configurable 4‑20 mA and 0‑20 mA current outputs, with voltage output options available (0‑10V, ±10V) depending on configuration.
- HART protocol support — Enables digital communication with smart field devices over the same 4‑20 mA wiring for configuration, diagnostics, and process data retrieval.
Diagnostics & protection
- Open-circuit detection — Monitors output loop integrity and reports open-circuit conditions to the controller for rapid fault identification.
- Output value monitoring — Provides real‑time output value supervision with alarm capability for out-of-range conditions.
- Channel isolation — Features channel-to-channel and channel-to-system isolation to protect against electrical interference and ground loops.
Specifications
Electrical specifications
| Manufacturer | Honeywell Process Solutions |
| Model | CC-TAON01 |
| Part Number | 51306519-175 |
| Product type | Analog Output IOTA / Termination Assembly |
| System compatibility | Experion PKS C300 Series |
| Output channels | 8 |
| Output signal | 4-20 mA DC (HART compatible) |
| Output range (current) | 4-20 mA, 0-20 mA |
| Output range (voltage) | 0-10V, ±10V, 0-5V, ±5V |
| Resolution | 16‑bit |
| Accuracy | ±0.1% of span (typical) |
| Load capacity | Up to 1050Ω (at 24V DC) |
| Update rate | Configurable, up to 1 ms per channel |
| Isolation voltage | 500-1500 VDC (per configuration) |
Physical & environmental
| Mounting | Series C I/O rack / Carrier |
| Dimensions (approx.) | 6" module |
| Operating temperature | ‑40°C to +70°C |
| Storage temperature | ‑40°C to +85°C |
| Relative humidity | 5% – 95% RH (non‑condensing) |
| Protection rating | IP20 |
| Power consumption | Typical 3W |
| Certifications | CE, UL, CSA |
| Status indicators | Channel status LEDs, module status LED |
Installation
Proper installation of the CC-TAON01 IOTA ensures reliable analog output signal generation and system stability.
Mounting & wiring guidelines
| Mounting position | Series C I/O rack / Carrier |
| Carrier module | CC-ATX01 (required) |
| Field wiring | Shielded twisted-pair cable recommended |
| Wire size | Up to 2.5 mm² (14 AWG) |
| Grounding | Single-point ground for cable shield |
| Power supply | External 24V DC for field loop power |
| Load connection | Connect to output terminals per wiring diagram |
- Install the CC-TAON01 in a clean, ventilated control cabinet (IP20) with ambient temperature within the specified operating range (−40°C to +70°C).
- Use the appropriate carrier module (CC-ATX01) to mount the IOTA in the Series C rack.
- When wiring field devices, ensure correct polarity for 4‑20 mA current loops. The module provides terminals for each output channel.
- For HART communication, ensure loop resistance is between 250Ω and 1100Ω to enable proper HART signal modulation.
- Observe proper cable shielding and single‑point grounding to prevent EMI interference on analog signals.
- When connecting to inductive loads (e.g., solenoid valves), use appropriate flyback suppression diodes.
Lifecycle
Active currently in production — fully supported
Product status: The CC-TAON01 remains an active, supported product in Honeywell's Experion PKS C300 Series I/O portfolio. It continues to be the recommended analog output termination assembly for new installations and system expansions.
Spare parts & support: Replacement units and accessories are available through Honeywell's standard support channels and authorized distributors. The C300 Series I/O family is designed for long‑term availability.
Replacement & migration:
- For migration from older Honeywell I/O systems (e.g., TDC 3000 or Series C legacy modules), the CC-TAON01 provides a modern termination interface with improved wiring clarity and diagnostic capabilities.
- When upgrading from non-HART analog output systems, the CC-TAON01/CC-PAON01 combination enables HART communication for improved device diagnostics.
- Field wiring can typically be reused with the CC-TAON01, minimizing migration cost and downtime.
- For high‑redundancy applications, consider CC-TAOX61 (redundant AO IOTA) or CC-TAON61 for redundant configurations.
Recommendation: For new Experion PKS analog output applications, the CC-TAON01 remains the recommended termination assembly solution.
