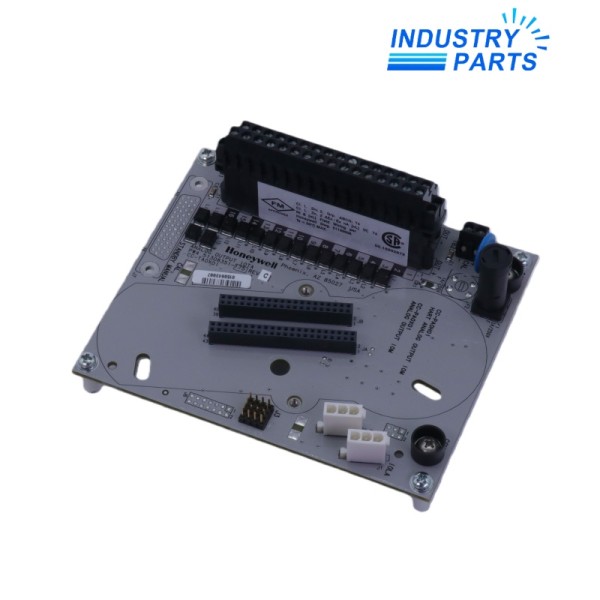

Honeywell CC-TAOX01 Analog Output Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-TAOX01 Analog Output Module
- Item NO.3499855
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-12-26
- Honeywell CC-TAOX01 six-inch non-redundant Series C analog-output IOTA for CC-PAOH01 or CC-PAOX01 modules.
Honeywell CC-TAOX01 Analog Output Module
Honeywell CC-TAOX01 six-inch non-redundant Series C analog-output IOTA for CC-PAOH01 or CC-PAOX01 modules.
Product Overview
Honeywell CC-TAOX01 is the six-inch, non-redundant Series C Analog Output I/O Termination Assembly. It provides the physical termination and interface between the installed analog-output IOM and field devices.
The approved IOM pairings are CC-PAOH01 for HART-capable analog output and CC-PAOX01 for analog output without HART. The IOTA does not create HART functionality by itself; communication capability follows the installed IOM and the configured field device.
The existing page title is retained unchanged, while the product description distinguishes the CC-TAOX01 IOTA from the removable signal-processing IOM. This distinction is important for spare selection and troubleshooting.
Performance
- Provides a six-inch non-redundant termination platform for sixteen analog-output circuits.
- Supports the CC-PAOH01 HART-capable IOM and the CC-PAOX01 non-HART IOM.
- Carries the field termination and module interface used by the Series C analog-output assembly.
- Supports output readback, diagnostics, safe-state behavior and open-wire indication through the installed IOM.
- Works with the documented four-to-twenty-milliamp output architecture of the paired IOM.
- Uses the Series C mechanical and wiring design for orderly module replacement and field termination.
Technical Details
| Model | CC-TAOX01 |
| Honeywell part number in related product records | 51308351-175 |
| Product form | Analog Output I/O Termination Assembly (IOTA) |
| Series | Experion Series C |
| Nominal IOTA size | 6 inches / 152 mm |
| Redundancy | Non-redundant |
| Redundant counterpart | CC-TAOX11, 12-inch redundant AO IOTA |
| Compatible IOMs | CC-PAOH01 and CC-PAOX01 |
| System channel count with paired IOM | 16 analog-output channels |
| System output type with paired IOM | 4–20 mA |
| HART capability | Available with CC-PAOH01; not provided by the IOTA alone |
| Paired-IOM maximum resistive load | 800 ohms with the documented 24 V supply range |
| Paired-IOM response | Settles within 1% of final value within 80 ms |
| Field connector capacity | Up to 12 AWG / 2.5 mm stranded wire |
| Critical configuration checks | IOM model, field wiring, power, safe-state settings and cabinet layout |
System Integration
Use CC-TAOX01 only with an approved Series C analog-output IOM. Pairing it with CC-PAOH01 supports the HART-capable architecture; pairing it with CC-PAOX01 supports the non-HART architecture.
System performance values such as output accuracy, load capability and response time belong to the installed IOM-and-IOTA assembly. When troubleshooting, separate IOM diagnostics from terminal, wiring and field-load checks on the IOTA.
Confirm cabinet power, field termination, channel assignment and grounding before commissioning. The redundant CC-TAOX11 is a different physical arrangement and should not be substituted without an approved redundancy design.
Applications
- Termination for sixteen-channel Series C analog-output modules.
- Four-to-twenty-milliamp commands to valve positioners and process actuators.
- Output connections to recording or indicating devices.
- HART-capable output loops when CC-PAOH01 is installed.
- Non-HART analog-output loops when CC-PAOX01 is installed.
- Non-redundant Series C cabinet configurations requiring the six-inch AO IOTA.
Installation & Service
Mount and ground the IOTA according to the Series C cabinet procedure, then verify power before installing the IOM. Confirm that the complete CC-TAOX01 marking matches the project bill of materials.
Land field conductors according to the channel wiring drawings. Check polarity, shield practice, field-load resistance and the availability of the required loop power before enabling outputs.
After fitting the IOM, verify recognition, diagnostics, output readback, safe-state configuration and open-wire behavior. Commission the loop through the full required operating range and record the result.
Lifecycle Planning
Treat the IOTA and IOM as related but separately replaceable assets. Record both model numbers, revisions, terminal assignments and field wiring so that future maintenance does not confuse the termination assembly with the electronics module.
Before converting to redundancy or a later analog-output family, review the IOTA footprint, wiring, HART requirements, Experion release and shutdown plan.
FAQ
Is CC-TAOX01 the removable analog-output electronics module?
No. It is the six-inch non-redundant I/O Termination Assembly that accepts a compatible analog-output IOM.
Which IOMs are compatible?
Honeywell lists CC-PAOH01 and CC-PAOX01 for this IOTA.
Does CC-TAOX01 itself provide HART?
No. HART capability is available when the HART-capable CC-PAOH01 IOM is installed and configured.
How many loops does the complete assembly support?
The approved paired IOM architecture provides sixteen analog-output channels.
What is the redundant alternative?
CC-TAOX11 is the documented twelve-inch redundant analog-output IOTA.
What must be verified during commissioning?
Check IOM pairing, channel wiring, polarity, field load, power, diagnostics, readback and safe-state behavior.
