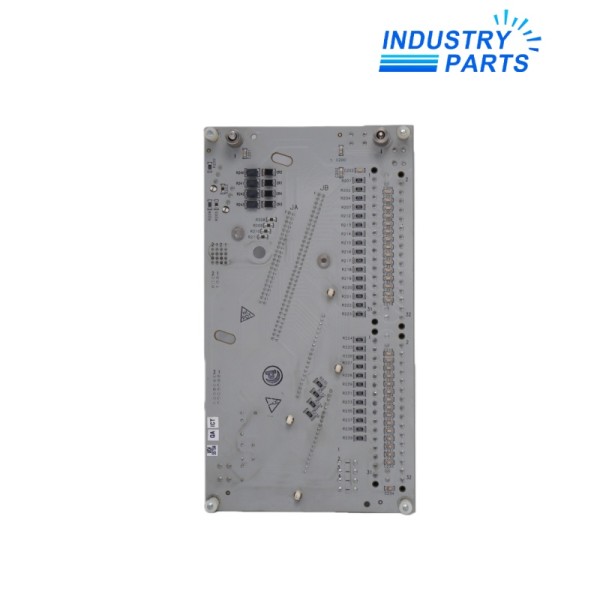

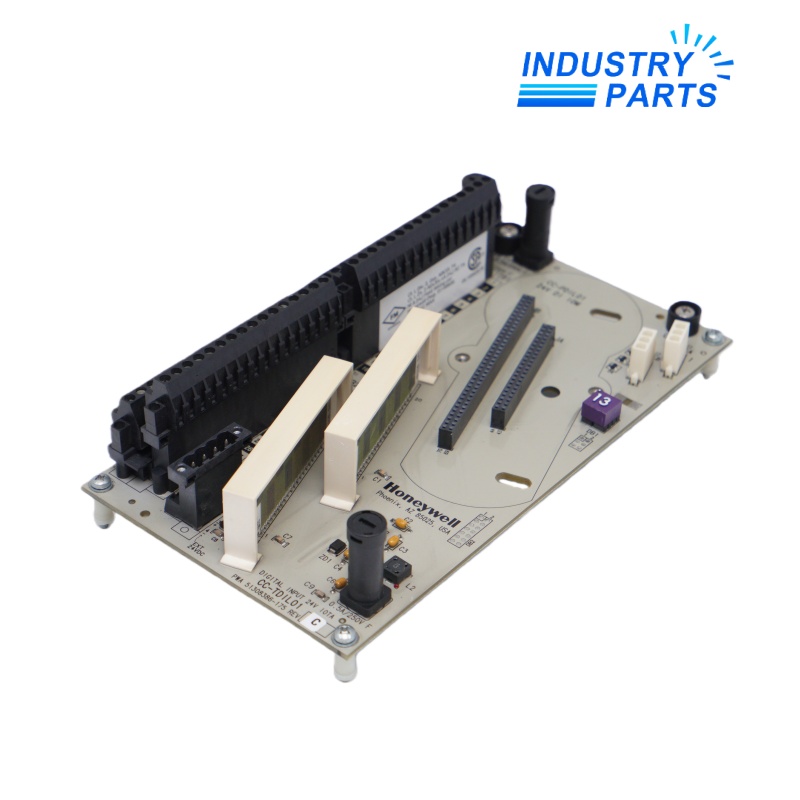

Honeywell CC-TDIL01 51308386-175 Digital Input Board

Honeywell CC-TDIL01 51308386-175 Digital Input Board

Item NO.: CC-TDIL01
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-TDIL01 51308386-175 Digital Input Board
  • Item NO.CC-TDIL01
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-12-23
  • Honeywell CC-TDIL01 non-redundant 9-inch IOTA for Series C 24 VDC digital input installations.
Honeywell Experion Series C I/O

Honeywell CC-TDIL01 Non-Redundant 24 VDC Digital Input IOTA

Honeywell CC-TDIL01 non-redundant 9-inch IOTA for Series C 24 VDC digital input installations.

Overview

CC-TDIL01 is the non-redundant 9-inch I/O Termination Assembly used with the Honeywell Series C 24 VDC digital input module. It provides the field-wiring termination and protection interface for the associated input electronics.

The IOTA and the I/O module form one engineered assembly. Channel behavior, diagnostics and electrical limits are defined by the paired CC-PDIL01 module and the selected field-power arrangement.

Specs

Manufacturer Honeywell
Model CC-TDIL01
Component type Digital Input 24 VDC IOTA
Configuration Non-redundant
Mechanical format 9-inch IOTA
Associated I/O module CC-PDIL01
Associated channel count 32
Associated DI power range 18 to 30 VDC
Associated input impedance 4.2 kOhm
Associated input delay 5 ms +/-20%
Associated galvanic isolation 1500 VAC RMS or +/-1500 VDC

Features

  • Dedicated field termination for Series C 24 VDC digital inputs
  • Internal field-wiring protection within the IOTA assembly
  • Supports direct and reverse input indication through the associated I/O function
  • Works with Series C diagnostics and open-wire handling provided by the paired module

Applications

Suitable for discrete status signals from switches, contacts and compatible 24 VDC field devices in Experion PKS control systems. Engineering must confirm field excitation, grounding and input-state thresholds before commissioning.

Lifecycle

CC-TDIL01 is part of the established Series C I/O installed base. Maintenance should retain the matched IOTA, terminal plug-in assembly and I/O module combination defined for the cabinet.

FAQ

Is CC-TDIL01 the 32-channel electronics module?
No. It is the non-redundant IOTA used with the 32-channel CC-PDIL01 module.
Can it be used in a redundant arrangement?
The CC-TDIL01 configuration is non-redundant; use the specified redundant IOTA for redundant designs.
What must be checked before replacement?
Confirm the paired I/O module, field power, terminal assembly and wiring diagram.

Recommended Models

Additional catalogue references for maintenance and sourcing enquiries. Confirm the manufacturer, function and compatibility before ordering.
