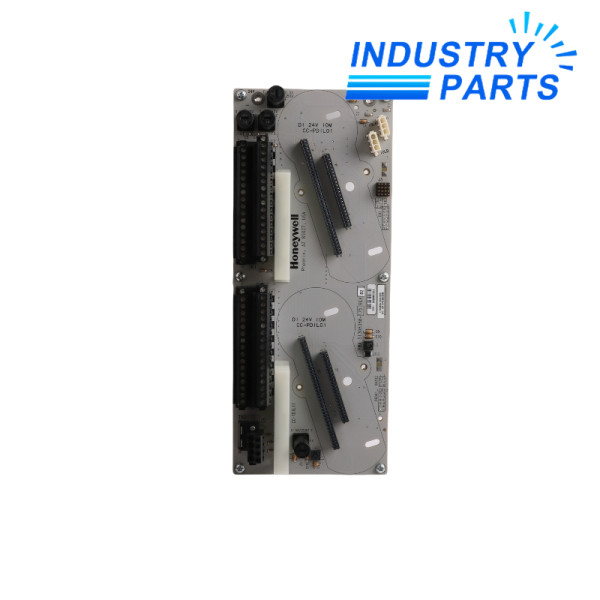

Honeywell DC-TDIL11 Digital Input 24V IOTA Redundant

Honeywell DC-TDIL11 Digital Input 24V IOTA Redundant

Item NO.: DC-TDIL11
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell DC-TDIL11 Digital Input 24V IOTA Redundant
  • Item NO.DC-TDIL11
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2025-02-19
  • Honeywell DC-TDIL11 redundant 24 VDC digital input IOTA for 32-channel Series C Mark II input service.
Honeywell Series C Mark II Digital Input

DC-TDIL11 · Redundant 24 VDC Digital Input IOTA

A redundant I/O Termination Assembly for the 32-channel Honeywell low-voltage digital input function with open-wire detection support.

Key Information

  • Model: Honeywell DC-TDIL11.
  • Function: redundant low-voltage digital input IOTA.
  • Nominal field signal class: 24 VDC.
  • Paired function: 32-channel digital input.
  • Open-wire detection is available with the PDIL01 input function.

Functions

DC-TDIL11 terminates 24 VDC discrete field signals for a redundant Series C Mark II digital input arrangement. The associated PDIL module performs isolated input sensing, state handling, diagnostics and supported open-wire detection.

Internal or external field power is selected according to approved project wiring. On-board excitation and non-incendive field-power options are documented for this input function.

Specifications

Parameter Official specification
Input channels with paired IOM 32
Digital input power range 18–30 VDC
ON condition ≥13 VDC or ≥3 mA
OFF condition ≤5 VDC or ≤1.2 mA
Input impedance 4.2 kΩ
Input filter delay 5 ms ±20%
Maximum field resistance for ON at 15 VDC 300 Ω
Minimum field resistance for OFF at 30 VDC 30 kΩ
Field-to-logic galvanic isolation 1500 VAC RMS or ±1500 VDC
Isolation technique Optical
Configuration Redundant IOTA

Installation

Confirm the installed IOM, IOTA, terminal assignment and redundancy design before replacement. Remove field power and follow official Series C grounding, shielding and cabinet procedures. Configure open-wire diagnostics only with the supported PDIL01 function.

Lifecycle

DC-TDIL11 belongs to the Series C Mark II family. Verify the Experion release, supported IOM revision, redundancy configuration and lifecycle documentation during migration or replacement.
