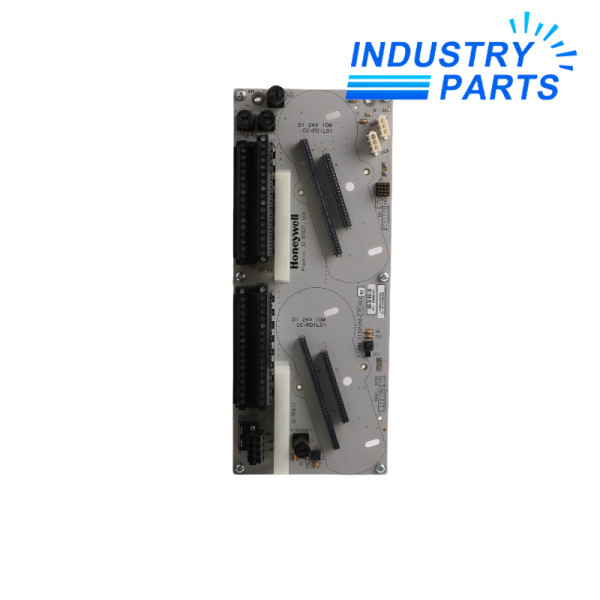

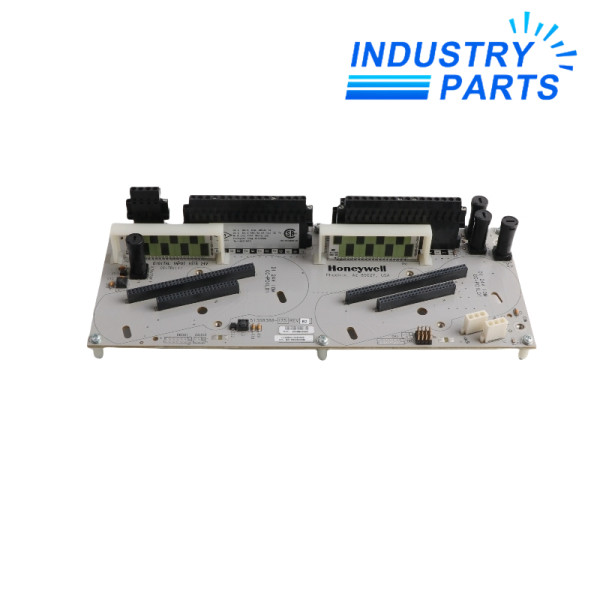

Honeywell DC-TDIL51 Digital Input 24V IOTA Single
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell DC-TDIL51 Digital Input 24V IOTA Single
- Item NO.DC-TDIL51
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-02-20
- Honeywell DC-TDIL51 single non-redundant 24 VDC digital input IOTA for DC-PDIL51.
DC-TDIL51 · Single 24 VDC Digital Input IOTA
A single, non-redundant I/O Termination Assembly for the 32-channel Series C Mark II 24 VDC digital input function.
Key Information
- Model: Honeywell DC-TDIL51.
- Function: single, non-redundant 24 VDC digital input IOTA.
- Paired Mark II module: DC-PDIL51.
- Channel count with paired module: 32.
- This input family does not include open-wire detection.
Functions
DC-TDIL51 provides field termination for DC-PDIL51. The paired module converts isolated 24 VDC discrete states and provides input filtering and diagnostics.
The TDIL51/61 family is distinct from TDIL01/11 because open-wire detection is not provided for the PDIL51 function.
Specifications
| Parameter | Official specification |
|---|---|
| Configuration | Single / non-redundant IOTA |
| Paired IOM | DC-PDIL51 |
| Input channels | 32 |
| Digital input power range | 18–30 VDC |
| ON condition | ≥13 VDC or ≥3 mA |
| OFF condition | ≤5 VDC or ≤1.2 mA |
| Input impedance | 4.2 kΩ |
| Input filter delay | 5 ms ±20% |
| Maximum field resistance for ON at 15 VDC | 300 Ω |
| Minimum field resistance for OFF at 30 VDC | 30 kΩ |
| Field-to-logic galvanic isolation | 1000 VAC RMS |
| Isolation technique | Optical |
| Open-wire detection | Not supported |
Installation
Verify the single DC-TDIL51 arrangement with DC-PDIL51, not redundant DC-TDIL61 or an open-wire-detection variant. Follow official Mark II terminal assignment, field-power isolation, grounding and cabinet procedures.
Lifecycle
For spares or migration, confirm Experion release support, installed module revision, redundancy needs and the absence of an open-wire-detection requirement.
