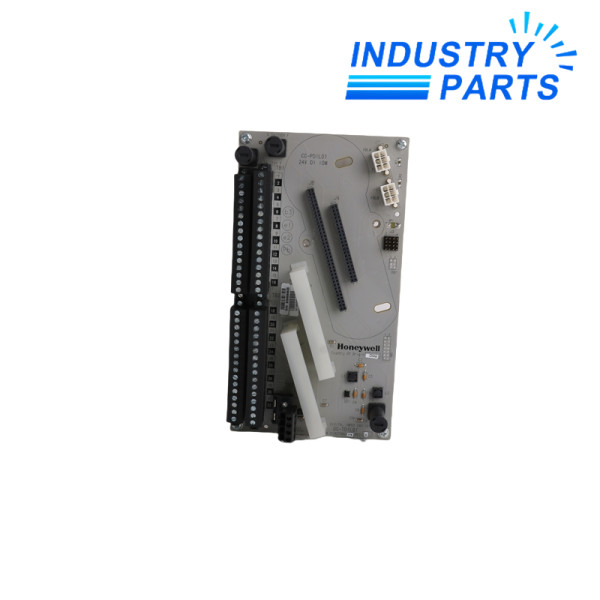

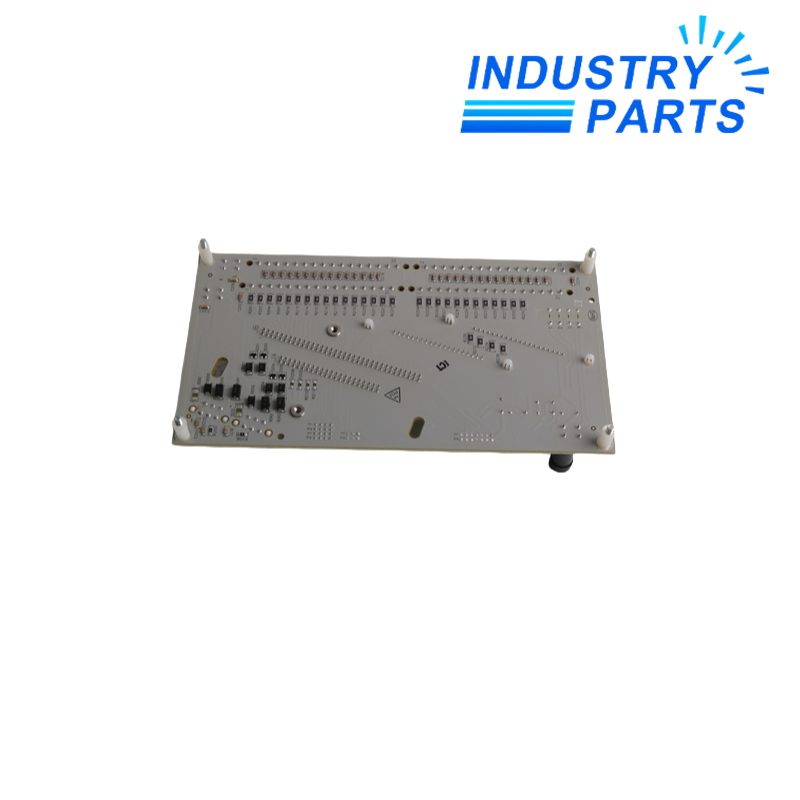

Honeywell DC-TDIL61 Digital Input 24V IOTA
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell DC-TDIL61 Digital Input 24V IOTA
- Item NO.DC-TDIL61
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-02-20
- Honeywell DC-TDIL61 is a Series C Mark II IOTA for compatible digital-input hardware.
DC-TDIL61 · Redundant 24 VDC Digital Input IOTA
A Series C Mark II field-termination and mounting IOTA for digital input applications.
Product Identification
| Parameter | Identification |
|---|---|
| Model | DC-TDIL61 |
| Manufacturer | Honeywell |
| Product role | I/O Termination Assembly |
| Supported I/O modules | CC-PDIL51 Digital Input; CC-PDIS51 SOE Digital Input |
| Configuration | Redundant IOTA family |
The IOTA provides field termination and module mounting; the paired I/O electronics perform signal conditioning and process-value handling.
Engineering Data
| Paired CC-PDIL51 parameter | Official specification |
|---|---|
| Channels | 32 |
| Input voltage | 18-30 VDC |
| ON threshold | 13 V minimum or 3 mA minimum |
| OFF threshold | 5 V maximum or 1.2 mA maximum |
| Input resistance | 4.2 kohms |
| Filter / isolation delay | 5 ms ±20% |
| Isolation | 1000 VAC RMS optical isolation |
| Guaranteed ON external resistance | 300 ohms maximum at 15 V |
| Guaranteed OFF external resistance | 30 kohms minimum at 30 V |
| Open-wire detection | Not provided by CC-PDIL51 |
The electrical values describe the paired digital-input function and are not standalone passive-IOTA ratings.
Functions
- Organizes field termination for the approved digital-input module family.
- Supports the cabinet's documented redundant hardware arrangement.
- Accommodates the project's internal or external field-power design.
- Maintains separation between field wiring and replaceable I/O electronics.
Applications
Used for digital field-state acquisition in Experion Series C Mark II cabinets where this exact termination family is specified by the project design.
Lifecycle
Verify the nameplate, paired module, base arrangement, field-power source and terminal mapping before replacement. Do not substitute a visually similar TDIL variant.
