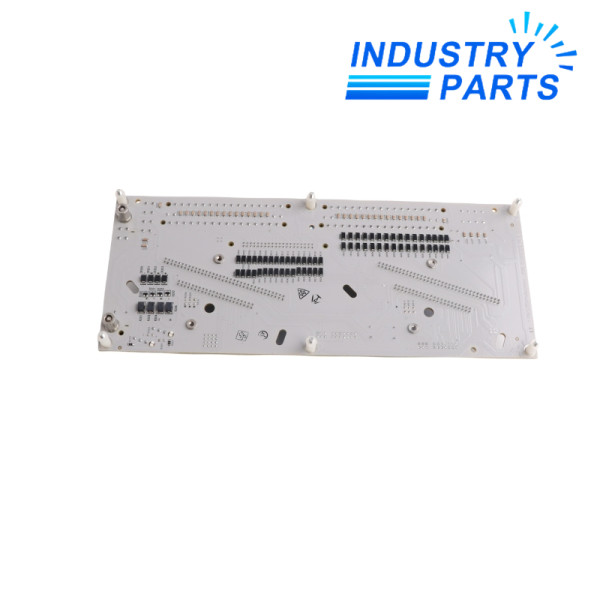

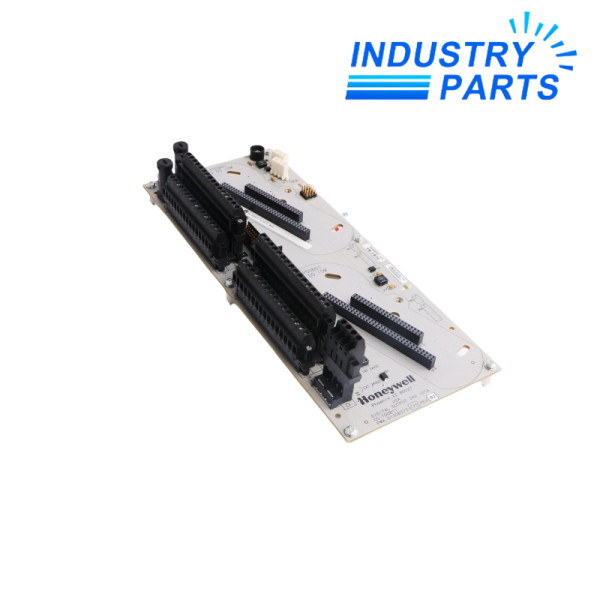

Honeywell DC-TDOD51 Digital Output 24V
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell DC-TDOD51 Digital Output 24V
- Item NO.DC-TDOD51
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-02-20
- Series C non-redundant 24 VDC bussed digital-output IOTA for use with the DC-PDOD51 I/O module.
DC-TDOD51
Series C non-redundant 24 VDC bussed digital-output IOTA for use with the DC-PDOD51 I/O module.
Product Profile
DC-TDOD51 is the termination assembly, or IOTA, used in Honeywell Series C 24 VDC bussed digital-output hardware. Honeywell documentation pairs this non-redundant 9-inch IOTA with the DC-PDOD51 I/O module.
The IOTA provides field termination and module mounting. Switching specifications belong to the associated DC-PDOD51 output family and should not be treated as stand-alone DC-TDOD51 ratings.
Technical Data
| Manufacturer | Honeywell |
|---|---|
| Model | DC-TDOD51 |
| Hardware role | IOTA / field termination assembly |
| Associated I/O module | DC-PDOD51 |
| Configuration | Non-redundant |
| IOTA size | 9 in |
| Associated family channels | 32 |
| Associated output type | Sink / open drain |
| Associated load-voltage range | 15 to 30 VDC |
| Associated switching time | 10 ms maximum |
| Weight | 0 (no public model-specific official value) |
System Role
The assembly terminates field wiring and carries the matching Series C output module. It is part of the physical I/O channel path but is not the device that executes the output logic.
For redundancy planning, slot use and cabinet design, follow the Honeywell Series C I/O User's Guide and the actual project drawings.
Compatibility
Use only with the IOM and system revision specified by Honeywell and the installed project bill of materials. Confirm keyed connectors, slot assignment, external field power and terminal labeling before replacement.
Applications
Typical use is termination for 24 VDC bussed discrete-output points in process automation cabinets, including solenoids, interposing devices and other approved DC loads through the associated output module.
FAQ
Is DC-TDOD51 the output electronics? No. Honeywell identifies it as the IOTA used with DC-PDOD51.
Is the weight confirmed? No public Honeywell model-level weight was found, so the product weight is entered as 0.
