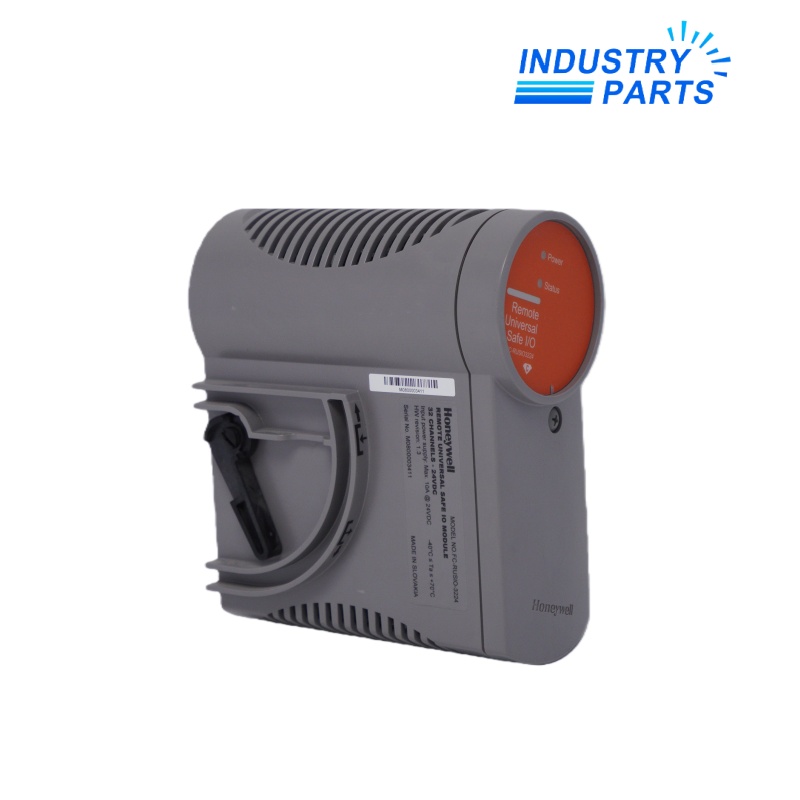

Honeywell FC-RUSIO-3224 SM RIO Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell FC-RUSIO-3224 SM RIO Module
- Item NO.3535130
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-02-03
- Honeywell FC-RUSIO-3224 32-channel 24 VDC universal safe remote I/O module for Safety Manager.
FC-RUSIO-3224 · 32-Channel 24 VDC Universal Safe I/O Module
A software-configurable remote safe I/O module providing 32 universal channels for digital and analog safety signals.
Key Information
- 32 universal safe, software-configurable channels.
- 24 VDC nominal supply; range 24 VDC −15% / +30%.
- Channel modes include DI, DO, AI and AO.
- For Safety Manager applications up to SIL 3 according to IEC 61508 / IEC 61511.
- Two modules can be applied in a redundant configuration.
- Two 100 Mbaud Ethernet links connect to the Safety Manager Controller.
Functions
Channels support DI with or without loop monitoring, DO with loop monitoring, and active 0–20 mA or 4–20 mA AI/AO. Channel 32 can be configured as an ESD input, and sequence-of-events time stamping has 1 ms resolution.
The module supports up to 32 DI, one ESD input, 32 AI, 32 DO or 16 AO channels, subject to permitted combined configuration and load limits.
Specifications
| Parameter | Official specification |
|---|---|
| Model | FC-RUSIO-3224 |
| Channels | 32 universal safe channels |
| Supply voltage | 24 VDC −15% / +30% |
| Supply current without field load | 300 mA maximum |
| Combined field load | 9 A maximum |
| Ethernet links | Two, 100 Mbaud |
| SOE resolution | 1 ms |
| Outside operating temperature | −40 to +70 °C |
| Inside operating temperature | −40 to +90 °C |
| Storage temperature | −40 to +85 °C |
| Relative humidity | 10–95%, non-condensing |
| Approvals | CE, UL, TÜV |
| AI | 0–20 or 4–20 mA; 250 Ω; 16 bit |
| AI accuracy | Typical <0.05%; worst at 25 °C <0.15%; over temperature <0.2% |
| DO | 24 VDC solid-state source; 500 mA maximum resistive |
| AO | 0–23 mA; 500 Ω maximum loop; 12 bit |
Installation
Install only within the documented Safety Manager remote I/O architecture. Confirm power, Ethernet, field capacitance and total load before energizing. Maximum field capacitance is 100 nF for AI, DI and AO, and 1 µF for DO.
A redundant arrangement uses two RUSIO modules. Safety validation and proof testing must follow the approved safety requirement specification.
Lifecycle
Replacement planning must preserve the certified configuration, firmware compatibility, redundancy concept and project safety documentation. Check current Honeywell lifecycle notices before changing an installed safety function.
