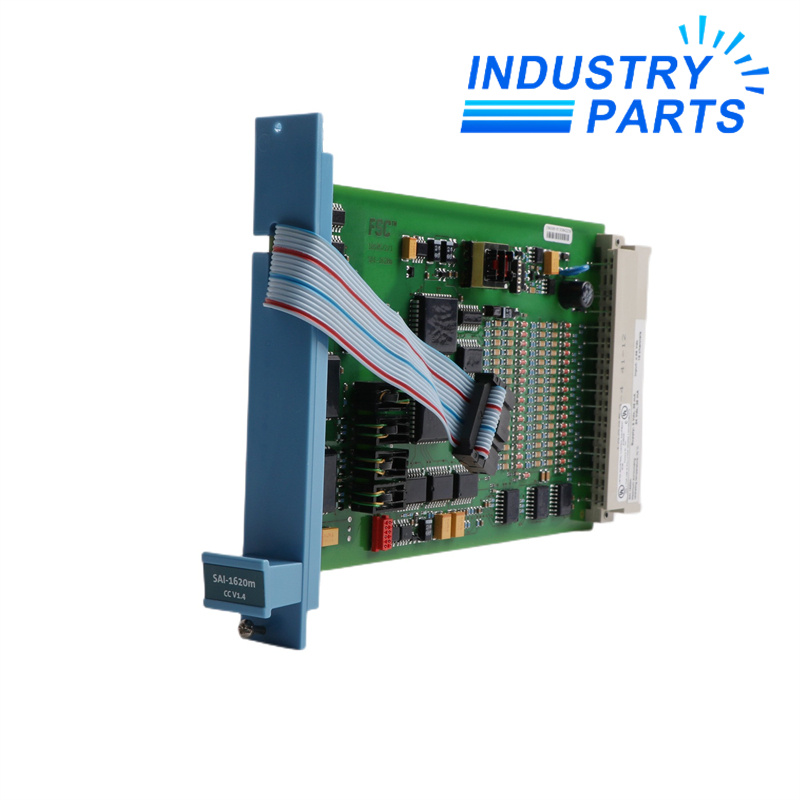

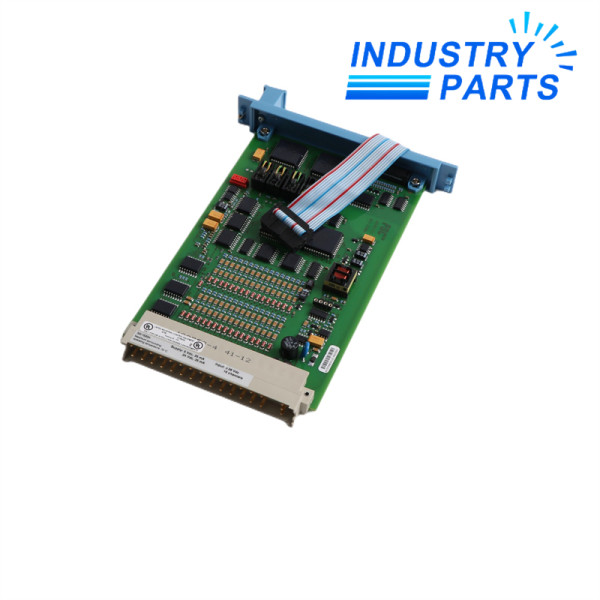

Honeywell FC-SAI-1620M Analog Input Module

Honeywell FC-SAI-1620M Analog Input Module

Item NO.: FC-SAI-1620M
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell FC-SAI-1620M Analog Input Module
  • Item NO.FC-SAI-1620M
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2024-12-30
  • Honeywell FC-SAI-1620M is a Safety Manager safe high-density analog-input module.
Honeywell Safety Manager I/O

FC-SAI-1620M · Safe High-Density Analog Input

A Safety Manager module for safety-related analog signal acquisition through approved field termination assemblies.

Technical Summary

FC-SAI-1620M acquires conditioned analog field signals for Safety Manager applications. Continuous internal tests monitor conversion accuracy, channel interaction, filtering and module power health.

Specifications

Parameter Official specification
Safe inputs 16
Input range 0-4.1 V
External-voltage readback 1 additional 0-4 V input
Input resistance Greater than 1 megaohm
Maximum load capacitance 100 nF
A/D conversion 12 bit
ADC inaccuracy ±1 LSB
Module inaccuracy Less than 0.25%
Absolute maximum input ±36 VDC
Crosstalk attenuation Greater than 60 dB
5 V / 24 V supply current 35 mA / 35 mA
Mechanical size 4 TE, 3 HE
Safety integrity SIL 3 in accordance with IEC 61508
Approvals CE, TÜV, UL, CSA and FM
Hazardous location Class I, Division 2 non-incendive use within the approved system

Features

  • Performs continuous self-tests of the analog conversion path.
  • Monitors internal references, filters and power supplies.
  • Uses approved termination assemblies to condition current-loop field signals.
  • Supports safety-instrumented applications through the documented Safety Manager architecture.

Compatibility

Termination family Integration role
TSAI Standard analog-current field termination
TSHART HART-oriented field termination
TSGAS / TSFIRE Application-specific gas and fire signal termination
BSAI Approved base or termination option identified by the project design

Replacement

Use the earliest existing catalog page for this preview; later duplicate pages remain unchanged. Confirm the termination assembly, Safety Manager release, application logic and proof-test requirements before field replacement.

FAQ

Question Answer
Can a current loop be landed without a termination assembly? Use only an approved Safety Manager termination arrangement.
Where is the safety application configured? In the approved Safety Manager engineering project.
What should be checked before removal? Record the slot, termination, wiring and application references.
What is required after installation? Complete the approved diagnostic and safety proof test.
