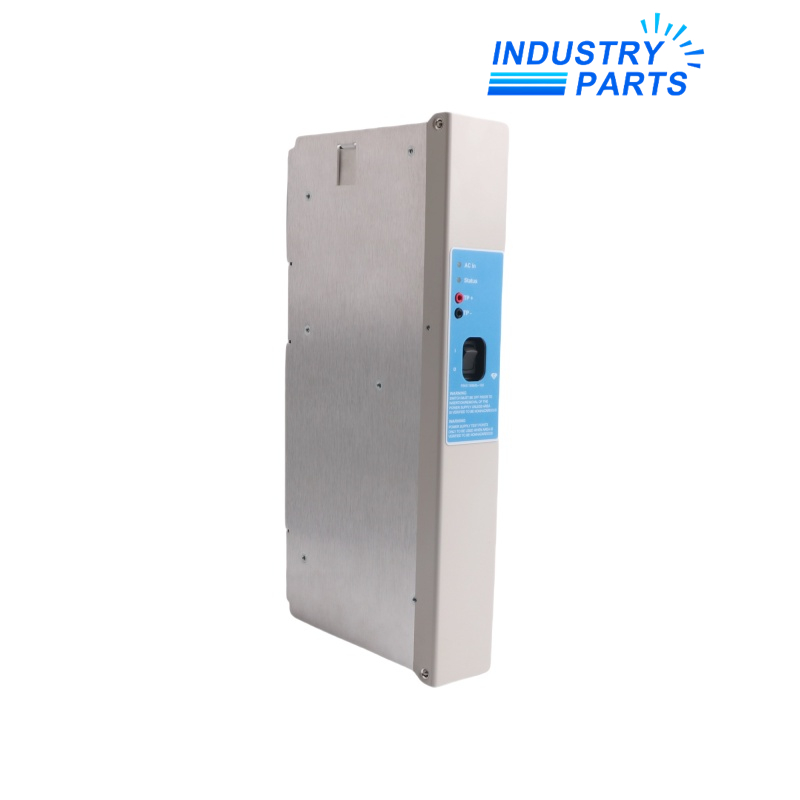

  • Honeywell 51198685-100 Experion Series C 20 A Power Supply
Honeywell 51198685-100 Experion Series C 20 A Power Supply | HTML Preview

Honeywell 51198685-100 Experion Series C 20 A Power Supply

ManufacturerHoneywellModel51198685-100Product TypeExperion Series C 20 A Power Supply

01Technical Summary

Honeywell 51198685-100 is the 20 A power-supply spare listed for Experion Series C power systems and the Universal Process Cabinet. Honeywell documentation cross-references the installed unit to the QUINT4-PS/1AC/24DC/20/+ supply model and includes it in redundant and non-redundant Series C power-subsystem maintenance planning.

Configuration ControlMatch the exact model, ratings, installed system, wiring, required approvals, and hardware revision before ordering.

02Specifications

Manufacturer Honeywell
Part Number 51198685-100
Product Type 20 A industrial power supply
System Family Experion PKS Series C
Official Spare Description 20 A Power Supply / Power Supply, ATDI
Installed Model Cross-Reference QUINT4-PS/1AC/24DC/20/+
Output Class 24 V DC, 20 A
Power-System Input Class 120 / 240 V AC
Redundant Subsystem CC-PWRR01
Non-Redundant Subsystem CC-PWRN01
Universal Process Cabinet Use Listed replaceable power-supply assembly
Selection Basis Exact part number, installed shelf, wiring, and redundancy arrangement

03Features

Design and Function

  • Supplies the 24 V DC power bus used by documented Series C power arrangements.
  • Listed by Honeywell as the replaceable 20 A supply for installed systems.
  • Used in both redundant and non-redundant Series C power-subsystem configurations.
  • The redundant arrangement uses two power supplies within the documented CC-PWRR01 subsystem.
  • Included in Honeywell Universal Process Cabinet service and maintenance information.
  • Exact part-number control helps avoid confusion with the 40 A power subsystem and newer cabinet supply assemblies.

Verified Identity

Manufacturer: Honeywell

Model: 51198685-100

Product Type: Experion Series C 20 A Power Supply

04Compatibility

  • Confirm the installed subsystem model, power shelf, incoming AC wiring, and redundancy arrangement.
  • For CC-PWRR01 service, verify the health and identity of both installed supplies before removing either unit.
  • Do not confuse the 20 A 51198685-100 supply with FC-PSUNI2424, 51454235-100, or other cabinet power assemblies.
  • Match the terminal arrangement and output-bus connection shown in the project and Honeywell cabinet documentation.
  • Use the site-approved power isolation and verification procedure for all cabinet power work.

05Replacement & Lifecycle

  • Use the exact 51198685-100 part number for a like-for-like installed-base replacement unless Honeywell engineering documents another approved assembly.
  • Record the power-shelf position, redundant partner, input source, and connected 24 V DC distribution before removal.
  • In a redundant system, verify that the remaining supply can safely carry the cabinet load before service.
  • After installation, confirm power-system alarms, output-bus health, redundancy status, and controller or I/O diagnostics.
  • Evaluate newer Universal Process Cabinet power hardware only as a documented subsystem change, not as a visual substitute.

06Applications

  • Experion PKS Series C controller and I/O cabinet power.
  • Redundant CC-PWRR01 20 A power subsystems.
  • Non-redundant CC-PWRN01 20 A power subsystems.
  • Universal Process Cabinet maintenance where Honeywell lists 51198685-100 as the installed power supply.

FAQFrequently Asked Questions

What is Honeywell 51198685-100?

It is the 20 A power-supply spare listed for Experion Series C and Universal Process Cabinet applications.

What output class is documented?

Honeywell cross-references a 24 V DC, 20 A QUINT4 supply model.

Can it be used in a redundant system?

Yes. Honeywell lists it in the CC-PWRR01 redundant 20 A power subsystem.

Is it also used in non-redundant service?

Yes. The CC-PWRN01 arrangement is the documented non-redundant 20 A subsystem.

Why is no product weight shown?

The verified Honeywell documents used for this exact part do not provide a product weight, so no value is stated.

What must be checked before replacement?

Confirm the shelf, AC input, output distribution, redundancy state, partner supply, and approved cabinet service procedure.
