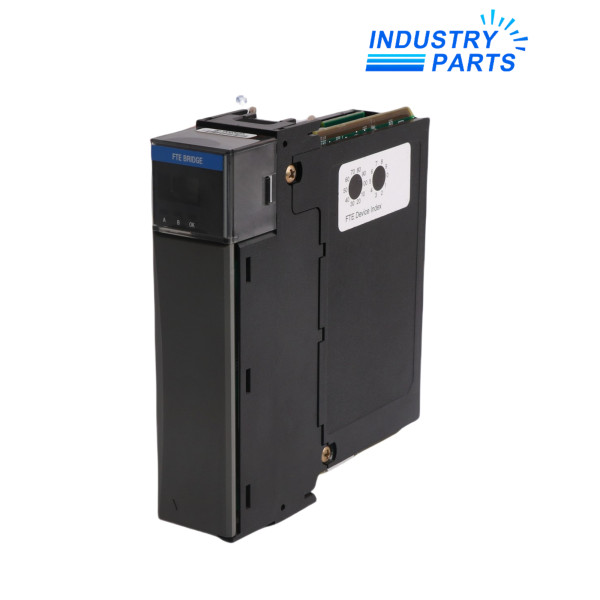

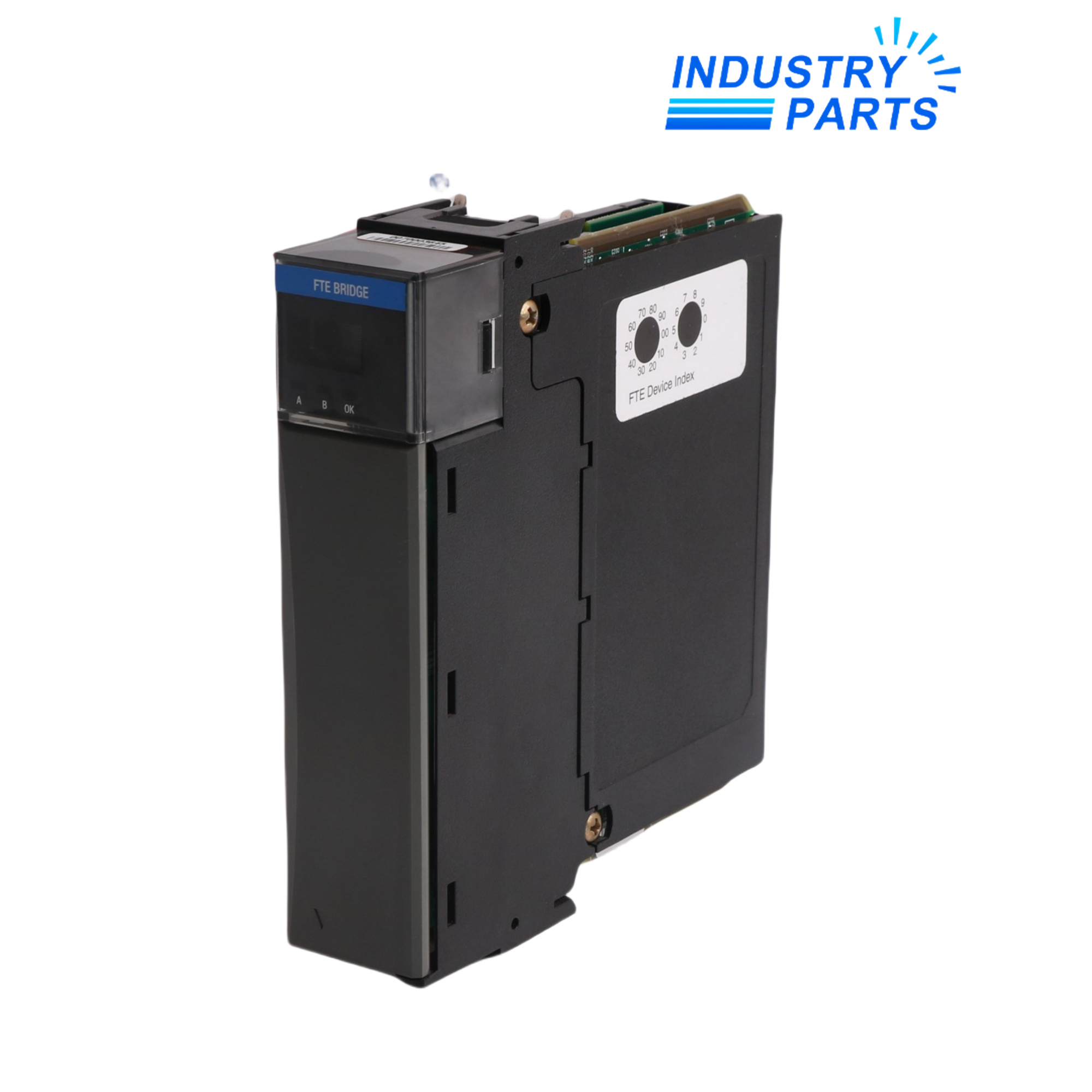

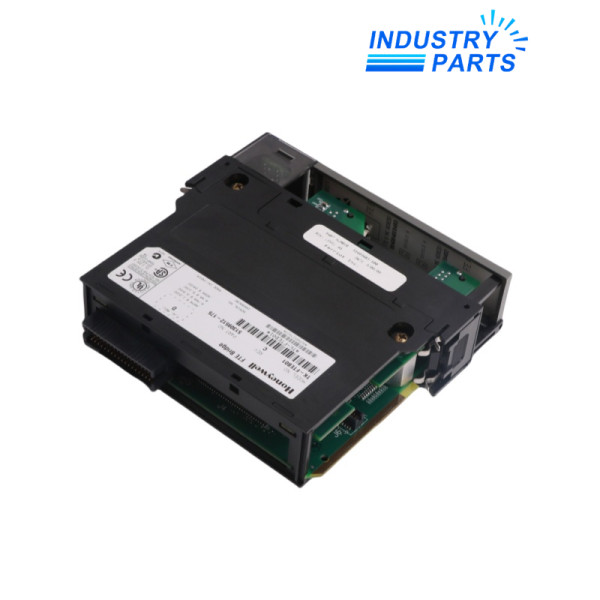

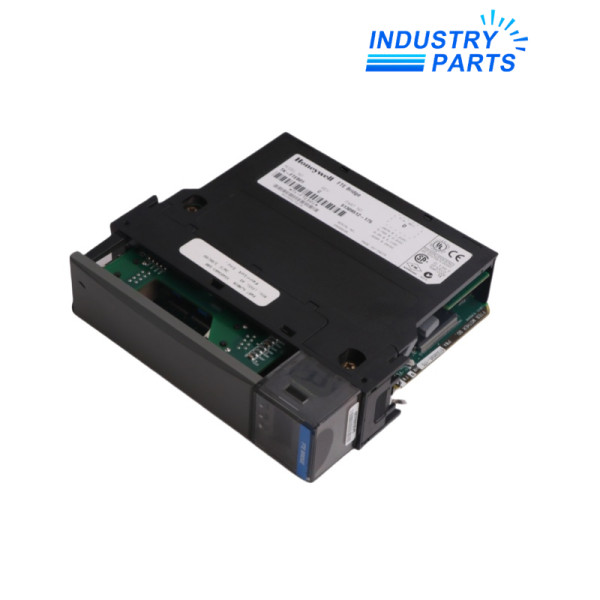

Honeywell TK-FTEB01 51309512-175 BRIDGE MODULE
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell TK-FTEB01 51309512-175 BRIDGE MODULE
- Item NO.TK-FTEB01 51309512-175
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryPLC
- BrandHoneywell
- Creation Time2025-03-03
- Coated Honeywell Fault Tolerant Ethernet Bridge module for Experion chassis-based controller and FIM hardware.
TK-FTEB01
Coated Honeywell Fault Tolerant Ethernet Bridge module for Experion chassis-based controller and FIM hardware.
Product Overview
TK-FTEB01 is the coated version of Honeywell's Fault Tolerant Ethernet Bridge module used to connect supported chassis-based Experion hardware to the supervisory FTE network.
Honeywell planning guidance treats the FTE Bridge as a single-slot, non-redundant module and permits only one FTEB in a chassis.
Performance
FTE provides path monitoring and high-availability industrial Ethernet communication for Experion PKS. The bridge extends that supervisory-network connection to supported C200, FIM and Series A chassis arrangements.
Technical Details
| Manufacturer | Honeywell |
|---|---|
| Model | TK-FTEB01 |
| Module type | Fault Tolerant Ethernet Bridge |
| Variant | Coated |
| Form factor | Single-slot module |
| Redundancy | Non-redundant module |
| Permitted quantity | One FTEB per chassis |
| Device index range | 1 to 99 |
| Weight | 0 (no public model-specific official value) |
System Integration
Honeywell guidance lists supported locations including non-redundant C200 chassis, redundant C200 chassis pairs, non-redundant and redundant FIM-only chassis, and Series A IOM chassis used with C300.
Device index 99 is not valid for a redundant chassis pair because the partner would require index 100. Confirm the exact release-specific rule set before commissioning.
Applications
Used where supported Experion chassis-based controller or FIM components require communication through the plant FTE supervisory network.
FAQ
Can multiple FTEB modules be installed in one chassis? Honeywell planning guidance permits one FTEB per chassis.
Is TK-FTEB01 a redundant pair by itself? No. It is documented as a non-redundant bridge module, even when installed in supported redundant chassis architectures.
