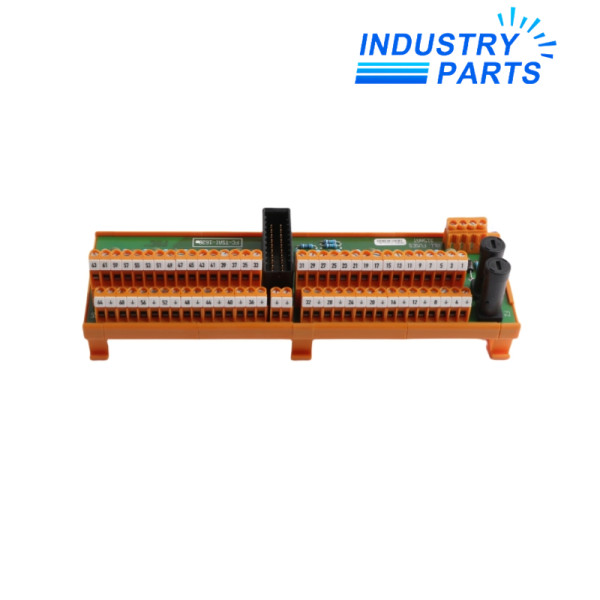

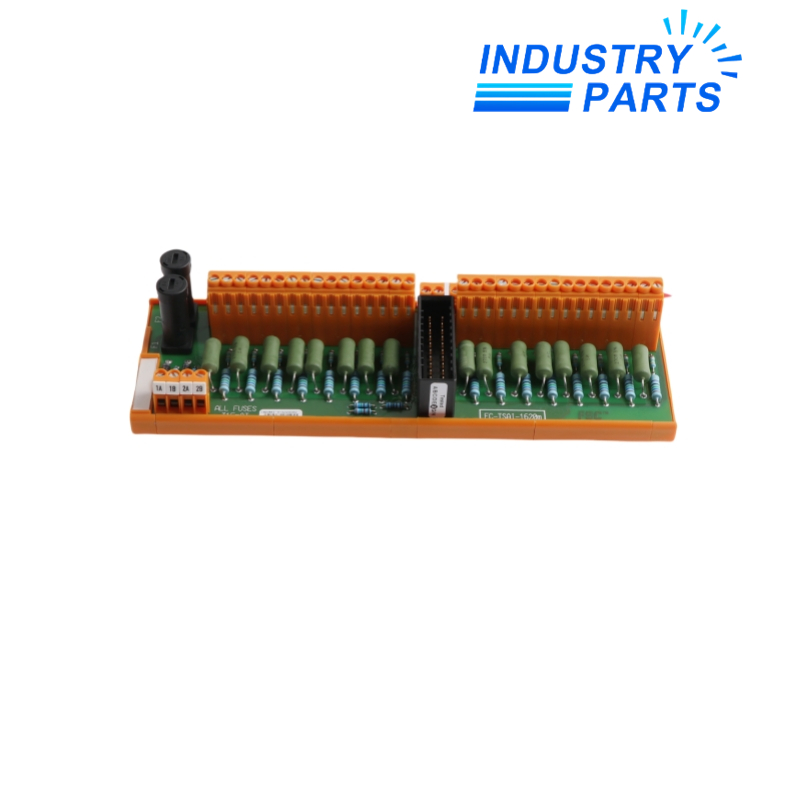

Honeywell TSAI-1620M FC-TSAI-1620M INPUT MODULE

Honeywell TSAI-1620M FC-TSAI-1620M INPUT MODULE

Item NO.: TSAI-1620M FC-TSAI-1620M
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell TSAI-1620M FC-TSAI-1620M INPUT MODULE
  • Item NO.TSAI-1620M FC-TSAI-1620M
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryPLC
  • BrandHoneywell
  • Creation Time2025-03-02
  • Honeywell FC-TSAI-1620M is a Safety Manager field termination assembly for the safe analog-input module.
Honeywell Safety Manager FTA

FC-TSAI-1620M · 16-Channel Analog Input Termination

A Safety Manager termination assembly that interfaces field transmitters with the safe analog-input electronics.

Technical Summary

FC-TSAI-1620M converts field-loop current into the voltage signal required by the safe analog-input module. It also distributes transmitter power, limits field energy and monitors the external supply.

Specifications

Parameter Official specification
Channels 16, arranged as two groups of eight with common 0 V
Paired module FC-SAI-1620M
Analog input 0-25 mA
Input resistor 250 ohms ±1%
Output to safe input module 0-4 V, 0.10% accuracy
External supply 30 VDC, 3 mA excluding connected loads
Passive-transmitter output resistor 270 ohms ±5%
Igniting current Less than 120 mA at 30 V
Group fuses 2 × 315 mA; maximum 220 mA per fuse
Dimensions 210 × 70 × 60 mm
DIN rail TS32 or TS35 × 7.5; used rail length 211 mm
Screw terminal conductor Maximum 2.5 mm²
Strip length / torque 7 mm / 0.5 Nm

Features

  • Interfaces active or passive field transmitters with the Safety Manager input electronics.
  • Provides voltage and current limiting for the field side.
  • Monitors external transmitter power and supports a redundant supply arrangement.
  • Uses grouped protection so field-loop faults can be managed within the approved design.

Compatibility

Component Integration role
FC-SAI-1620M Receives the conditioned safe analog-input signals
Active transmitters Can supply their own loop current
Passive transmitters Use the approved external transmitter-power arrangement
Safety Manager cabinet Provides the documented mounting, power and safety architecture

Replacement

Verify transmitter type, external supplies, group fuse loading and terminal assignment before replacement. Preserve the approved Safety Manager validation and proof-test procedure.

FAQ

Question Answer
Is this the analog processing module? No. It is the field termination assembly.
Can field wiring be transferred without checking drawings? No. Confirm every terminal against the project documentation.
Why must fuse loading be reviewed? It is part of the approved transmitter-power design.
What follows installation? Complete the required loop and safety validation checks.
