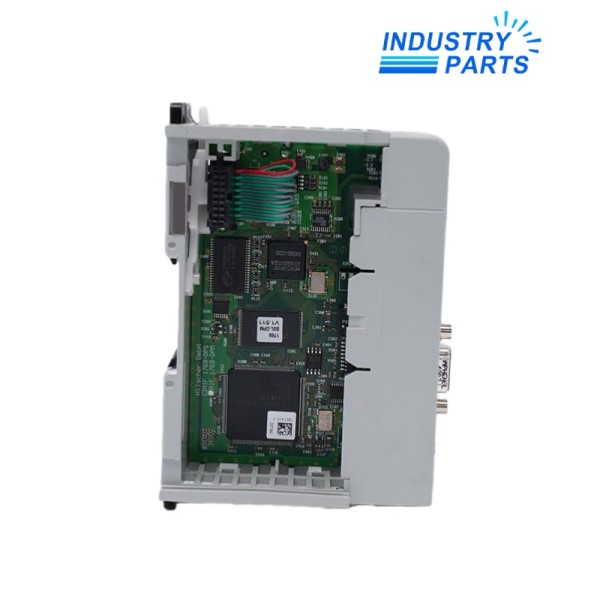

PROFIBUS 1769-DPM CompactLogix Interface Module

PROFIBUS

PROFIBUS 1769-DPM CompactLogix Interface Module

Key Product Features

Max PROFIBUS Slaves: 125 devices per segment

Input Data Size: up to 408 Bytes

Output Data Size: up to 480 Bytes

Status Data: 88 Bytes

Command Data: 16 Bytes

DPV1 Services: Class 1 Read/Write, Alarm, Global-Control, Slave-Diag, Set-Parameter, Sync/Freeze Commands

Network Baud Rate: 9.6 kBaud to 12 Mbps, auto-detect

PROFIBUS Interface: RS-485, up to 12 Mbps

Diagnostic Interface: RS-232, 9600 Baud

Power Supply: +5 V ±5%, 260 mA from 1769 backplane

Backplane Interface: Standard 1769 single-slot CompactLogix module

Physical Size: Single-slot module

Operating Temperature: 0 °C to 60 °C

Humidity Range: 5% to 95% RH (non-condensing)

Certifications: C-UL, UL 508, CE, PNO PROFIBUS Certified

Cabling Requirements: PROFIBUS Type A certified cable

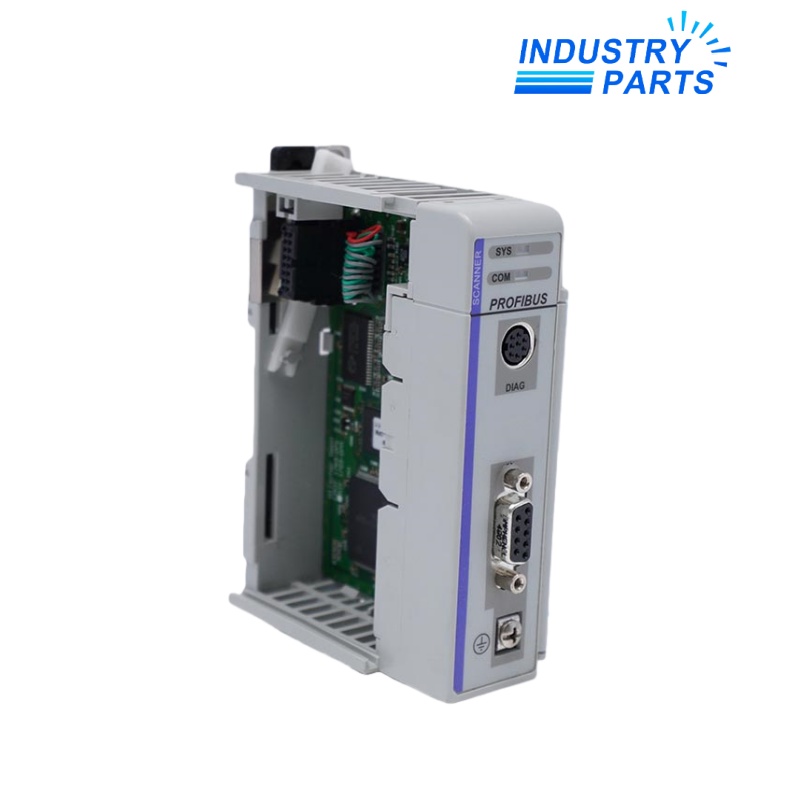

The 1769‑DPM PROFIBUS Interface Module is a PROFIBUS DP communication interface module designed to integrate Rockwell Automation CompactLogix™ controllers with PROFIBUS DP networks.

Manufactured in partnership with ProSoft Technology for use within the 1769 backplane, this module expands the native capability of a CompactLogix system by enabling deterministic PROFIBUS data exchange and diagnostic access using industry‑standard PROFIBUS DP protocols.

As a compact 1769‑slot form factor, the 1769‑DPM is recognized by the controller as an Input/Output communication module and provides seamless access to processor memory for cyclic and acyclic PROFIBUS messaging within a single integrated automation platform.
