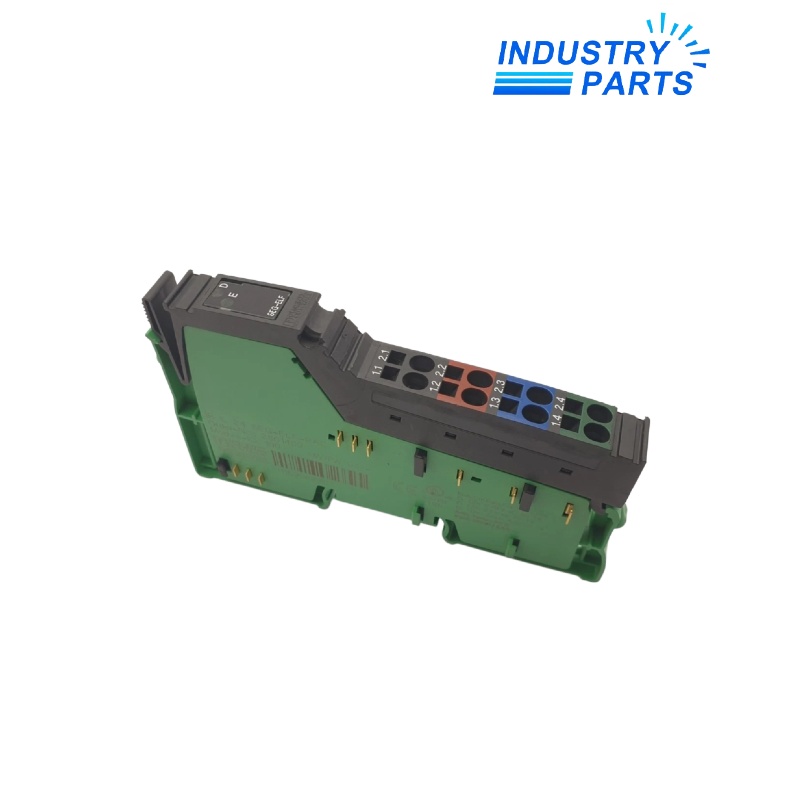

Phoenix Contact SEG-ELF-PAC Segmentation Module

Phoenix Contact SEG-ELF-PAC Segmentation Module

The Phoenix Contact SEG-ELF-PAC Segmentation Module is an industrial signal and power segmentation device used to separate, distribute, and protect communication and I/O power circuits in automation systems. The SEG-ELF-PAC operates with a 24 V DC I/O supply and a 7.5 V DC communication supply, featuring overload protection, electronic 2.5 A fuse, and 500 V AC isolation between supply domains.

The Phoenix Contact SEG-ELF-PAC is widely used in industrial automation, process control, factory systems, and distributed control architectures. It is commonly applied in PLC systems, machine automation, energy management, and manufacturing lines where reliable signal segmentation and power distribution are required. With wide voltage range (19.2–30 V DC), low current consumption, and robust electrical isolation, the SEG-ELF-PAC is suitable for complex industrial environments requiring high reliability and system protection.

☈ Product Information

Product Name: Phoenix Contact SEG-ELF-PAC Segmentation Module

Product Model: SEG-ELF-PAC

Product Parameters: Segmentation Module

Manufacturer: Phoenix Contact

Estimated Shipping Size: 1.3x12x7.2cm

Weight: 0.211 kg

Maximum power dissipation (nominal): 0.65 W

Protective circuit: Overload protection

Fuse: 2.5 A (electronic)

I/O supply voltage: 24 V DC

I/O voltage range: 19.2–30 V DC

Residual ripple: ±1.2 V

Maximum current consumption: 2.5 A

Typical current consumption: 30 mA

Communications power supply (UL): 7.5 V DC

Communications current draw: max. 30 mA

Isolation test voltage: 500 V AC (50 Hz, 1 min for all supply domains)

Protection test: 5 V / 7.5 V / 24 V systems isolated at 500 V AC

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others
