Precise Monitoring of Every Movement: Fisher FIELDVUE 4400 Makes Valves Smart and Visible

2026-02-06

In industrial automation systems, valves are the core of fluid control, but for a long time, their operating status has been difficult to monitor in real time. Traditional limit switches are prone to wear, long-stroke valves have low feedback accuracy, and internal faults in electric actuators are difficult to detect, making valve operation a typical "black box," posing risks to factory safety and production efficiency.

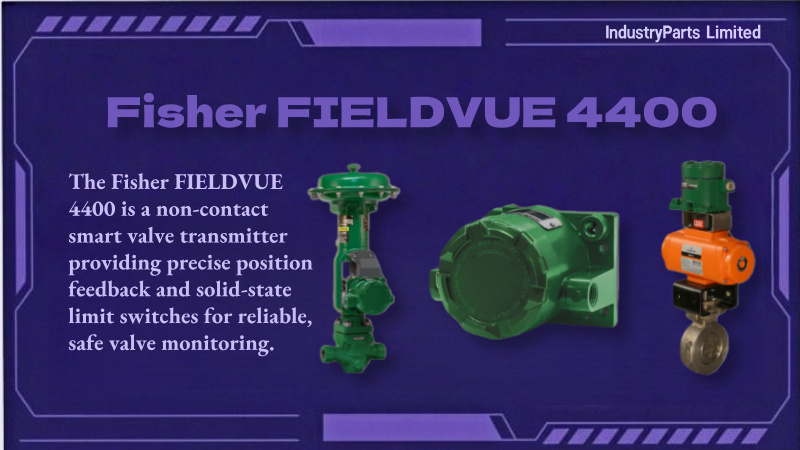

To solve this problem, Emerson introduced the Fisher FIELDVUE 4400 intelligent position transmitter. This product uses non-contact magnetic induction technology, eliminating mechanical linkages and feedback shafts, achieving high-precision measurement of valve stem position, and can operate stably for a long time even in environments with high vibration and high-frequency operation.

The 4400 supports a two-in-one feedback output, providing a 4-20mA continuous analog output and two fully isolated solid-state limit switches in a single instrument, achieving dual functions of process monitoring and safety interlocking without occupying the original control loop. Its housing has a high protection rating and is SIL 2 safety certified, making it suitable for harsh operating conditions. Intelligent diagnostics records valve cycle counts, stroke accumulation, and deviation alarms, providing data support for early detection of potential valve failures in the factory.

FIELDVUE 4400 Key Strengths

In typical applications, the 4400 demonstrates significant advantages:

High-frequency vibration valve monitoring: Valves such as powder discharge valves and slag lock valves, which experience frequent opening and closing and severe vibration, are prone to fatigue fracture of traditional mechanical connecting rods. The 4400's non-contact design eliminates mechanical losses, ensuring stable operation under high-frequency conditions.

Redundant feedback for critical valves: Critical valves in nuclear power plants, compressor anti-surge valves, etc., require independent feedback to the Instrumented Safety System (SIS). The 4400 provides high-precision continuous feedback and solid-state limit signals, meeting the redundancy safety requirements of long-stroke valves.

Electric actuator mechanical fault diagnosis: Real-time monitoring of the actual valve stem displacement and comparison with internal actuator feedback enables valve position deviation alarms, timely detection of valve stem or internal component abnormalities, and avoidance of downtime risks.

High-precision measurement of ultra-short stroke valves: The minimum flow valve of a high-pressure differential pump has a short stroke, and traditional switching mechanisms are complex to debug and have low accuracy. The 4400 uses magnetic induction technology for direct measurement, achieving high-precision capture.

Summary

The Fisher FIELDVUE 4400 intelligent position transmitter transforms valves from "black boxes" into visible and controllable systems through non-contact technology, dual-feedback, high environmental adaptability, and intelligent diagnostics, providing transparent insights and safety assurance for industrial processes. Whether it's high-frequency vibration valves, critical redundant valves, or ultra-short-stroke valves, the 4400 improves monitoring accuracy, reduces maintenance costs, and ensures continuous production. It is not only a guardian of valve reliability but also an important tool for modern factories moving towards intelligent asset management.

FAQ

Q1: Can the FIELDVUE 4400 replace traditional limit switches?

A1: Yes. The 4400 provides non-contact continuous feedback and solid-state limit switches, eliminating mechanical wear issues while meeting safety interlocking requirements.

Q2: Which types of valves is it suitable for?

A2: Suitable for high-frequency vibration valves, critical redundant valves, electric actuators, and ultra-short-stroke valves, compatible with various industrial environments.

Q3: How is redundant feedback achieved?

A3: Through a two-in-one feedback output, a continuous 4-20mA signal can be used in the control system. Two independent solid-state switches can be connected to SIS to achieve high-precision redundant feedback.

Q4: How is its environmental adaptability?

A4: The 4400 has a high protection rating, is resistant to high vibration, high-frequency operation, and corrosive environments, and has passed SIL 2 safety certification.
