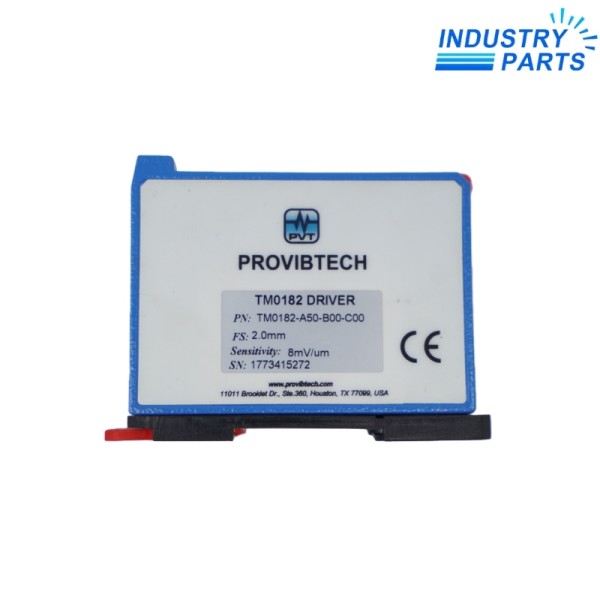

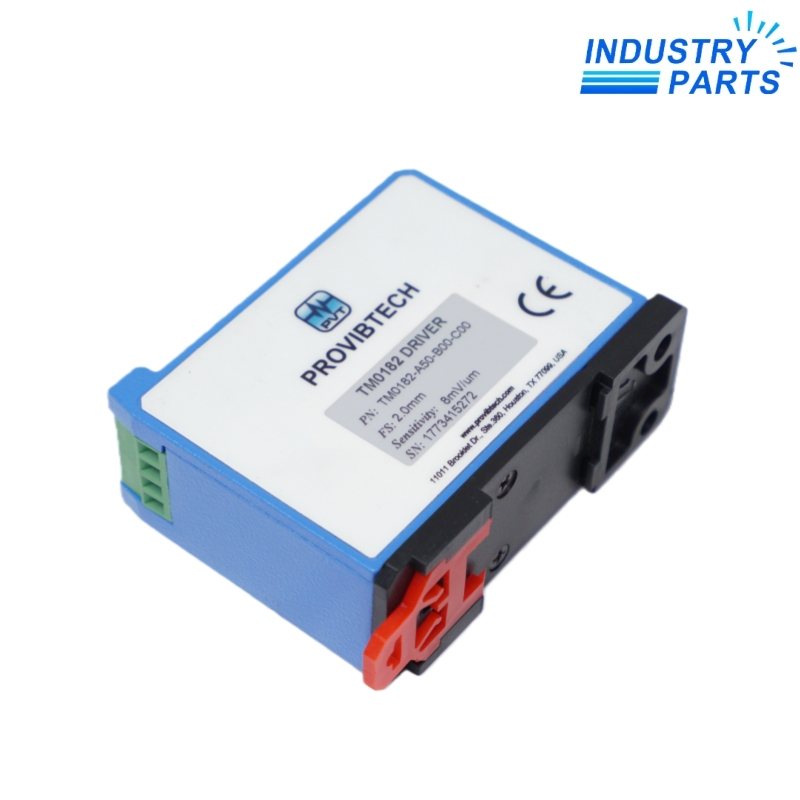

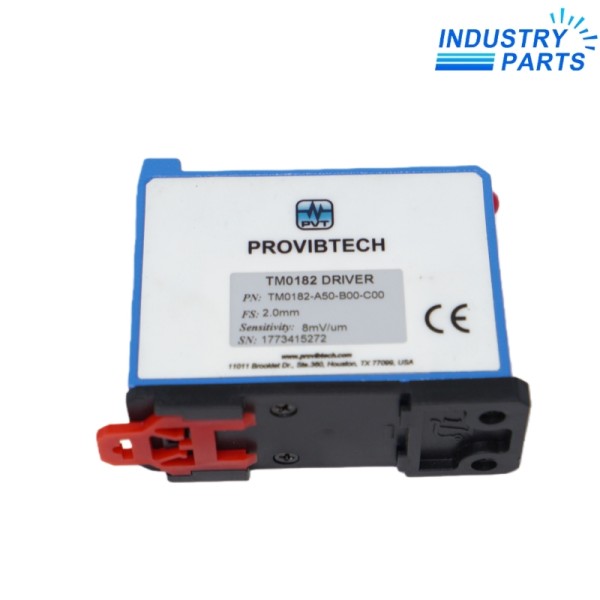

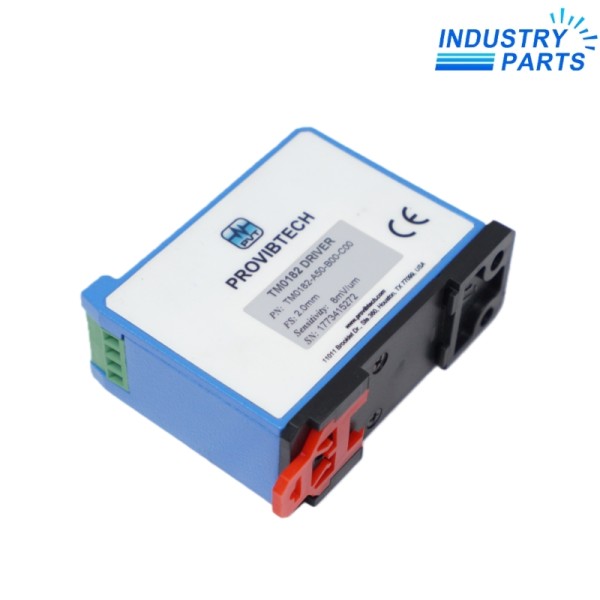

ProvibTech TM0182-A50-B00-C00 Proximity Probe Driver
01Technical Summary
TM0182-A50-B00-C00 is a configured proximity probe driver for a standard 8 mm ProvibTech probe system with a 5 m total electrical length. The B00 option denotes no hazardous-area certification and the C00 option denotes DIN-rail mounting. It is used with the TM0180 probe and TM0181 extension cable as one calibrated measurement chain.
02Applications
Typical Uses
- Radial shaft-vibration measurement on rotating machinery.
- Axial position or thrust-position measurement where the monitoring system is configured for displacement.
- Phase-reference and speed sensing when used in a compatible machinery-monitoring channel.
- Maintenance of an installed 5 m, 8 mm ProvibTech proximity transducer system.
Selection Boundary
- Use the exact model and manufacturer identity shown on the installed product.
- Treat application examples as context, not as proof of compatibility.
- Confirm electrical, mechanical, communication, safety, and environmental requirements before ordering.
03Specifications
| Manufacturer | ProvibTech / PVTVM |
|---|---|
| Model | TM0182-A50-B00-C00 |
| Product Type | Proximity probe driver |
| Probe System | Standard 8 mm proximity probe |
| Cable-System Option | A50 - 5.0 m total probe and extension-cable length |
| Compatible Probe | TM0180 8 mm proximity probe |
| Compatible Extension Cable | TM0181 extension cable |
| Hazardous-Area Option | B00 - no hazardous-area certification |
| Mounting Option | C00 - DIN-rail mounting |
| System-Length Rule | Probe plus extension cable must total 5.0 m for the A50 configuration |
| Measurement Principle | Eddy-current proximity measurement |
| Procurement Control | Match the complete A50-B00-C00 suffix and the installed probe/cable chain |
04Features
Design and Functions
- A50 selects the standard 8 mm probe system with a 5 m total cable length.
- B00 identifies the non-hazardous-area version; hazardous approval must not be assumed.
- C00 identifies the DIN-rail mounting arrangement.
- The driver, TM0180 probe, and TM0181 cable operate as a matched transducer chain.
- A connector protector can be used to reduce oil and dirt contamination at the probe-cable connection.
- The exact target material, gap setting, monitor input, and field wiring must follow the approved machinery-monitoring design.
Product Identity
- Manufacturer: ProvibTech / PVTVM
- Model: TM0182-A50-B00-C00
- Product Type: Proximity Probe Driver
- Review Status: Verified
05Compatibility
- Use with the TM0180 8 mm probe and TM0181 extension cable selected for a 5.0 m system.
- Do not mix a 5 m driver configuration with a 9 m probe-and-cable chain.
- Confirm the receiving monitor or transmitter input, sensitivity, polarity, target material, connector type, and grounding practice.
- The B00 configuration is not a substitute for a certified hazardous-area version.
- A different probe family or cable length requires a complete compatibility review, not only a connector check.
06Maintenance & Replacement
- Record the probe, extension-cable, and driver part numbers before disturbing the loop.
- Inspect the connector, cable routing, shield, probe mounting, and mechanical gap.
- Keep the installed probe and cable total at the A50 system length.
- After replacement, verify gap voltage, signal direction, system scale, alarms, trips, and vibration trend against the approved baseline.
- Replace or migrate the whole matched chain when manufacturer compatibility cannot be demonstrated.
FAQFrequently Asked Questions
What is
TM0182-A50-B00-C00 is a DIN-rail proximity probe driver configured for a standard 8 mm, 5 m ProvibTech transducer system without hazardous-area certification.
Where is this product used?
It is used in rotating-machinery proximity measurement loops together with a compatible TM0180 probe and TM0181 extension cable.
What should be confirmed before ordering?
Confirm the complete model or part number, manufacturer, installed hardware revision, electrical design, interfaces, wiring, approvals, and project configuration.
What information should be recorded before replacement?
Record the driver, probe, and cable codes, total cable length, target material, gap voltage, monitor input, sensitivity, scale, alarms, trips, and grounding.
Is another model a direct replacement?
No direct replacement should be assumed unless the complete probe-driver-cable sensitivity, system length, output polarity, mounting, and approval are matched.
What should be checked after installation?
Verify mechanical gap, gap voltage, signal polarity, scale, vibration or position response, alarms, trips, and trend continuity.
