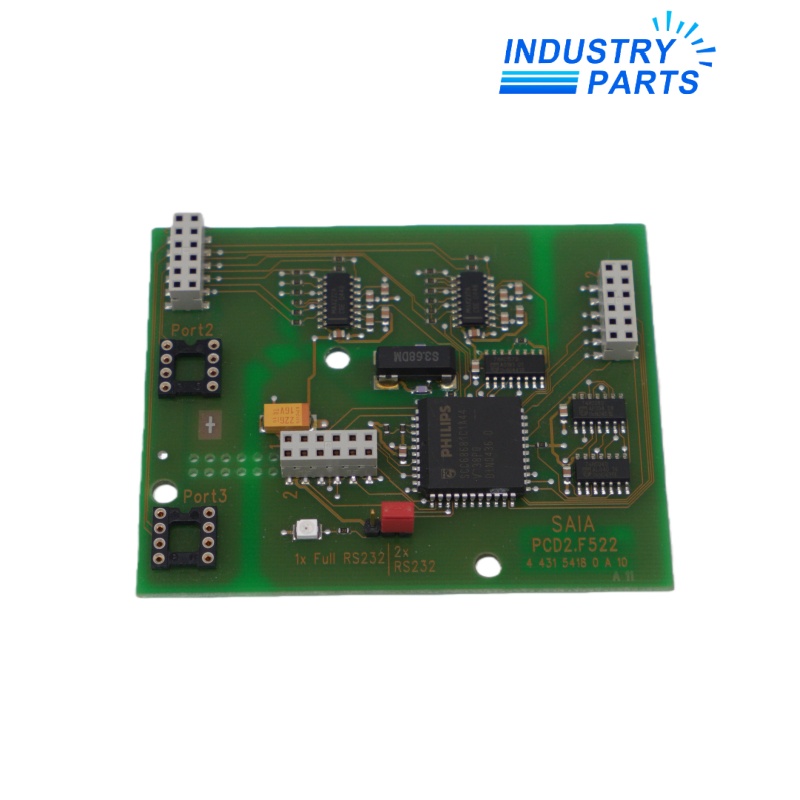

SAIA PCD2.F522 Interface Module

SAIA

SAIA PCD2.F522 Interface Module

Part Number:PCD2.F522

Manufacturer:SAIA

Product Type:Interface Module

Data Transfer Rate: 19.2 kbps

Power Supply Voltage: 24 V DC

Number of Inputs/Outputs: 8 inputs, 8 outputs

LED Indicators: Power, status, communication

Operating Temperature: -20 °C to +55 °C

Storage Temperature: -40 °C to +70 °C

Compliance: CE, RoHS certified、

The SAIA PCD2.F522 is an interface communication module designed for use with the SAIA PCD2 series of PLC

controllers. It provides serial communication capability between the PCD2 controller and external devices over

standard communication ports. The PCD2.F522 supports configurable serial interface modes, allowing connection

to external equipment such as modems, HMIs, or other controllers via RS‑232 and RS‑485 signaling, enabling data

exchange across distributed automation systems. It integrates directly into the PCD2 controller’s modular socket

structure and expands the communication functionality of the base CPU unit.
