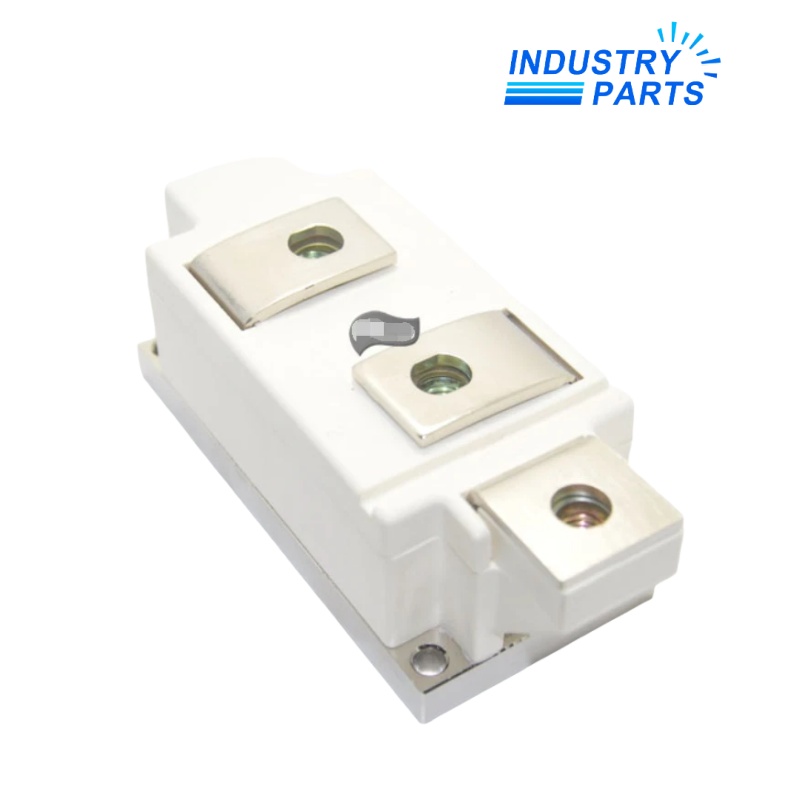

Semikron Danfoss SKKH570/16E SEMIPACK 5 Thyristor-Diode Rectifier Module
A 570 A, 1600 V SEMIPACK 5 rectifier module combining thyristor and diode technology on an isolated metal baseplate.
Product Overview
SKKH570/16E corresponds to the Semikron Danfoss designation SKKH 570/16 E and product number 230B1784. It is a thyristor-diode rectifier module in the SEMIPACK 5 housing.
The module is rated in the 570 A current and 1600 V voltage classes. Heat is transferred through an aluminium-nitride ceramic isolated metal baseplate, and the internal pressure-contact construction supports the documented high-reliability assembly.
Mechanical fit, heatsink design, clamping, gate-drive arrangement and thermal interface remain part of the application. A same-housing module with a different voltage or topology must not be treated as interchangeable from outline dimensions alone.
Performance
Control a high-current rectifier path
The thyristor-diode topology supports controlled rectification in matched industrial power-conversion circuits.
Transfer heat through an isolated base
The aluminium-nitride ceramic base provides the documented thermal path to the heatsink while maintaining the isolated module construction.
Use pressure-contact assembly
Internal pressure contacts form part of the SEMIPACK 5 reliability design.
Technical Details
| Manufacturer | Semikron Danfoss | Exact model | SKKH570/16E |
|---|---|---|---|
| Official designation | SKKH 570/16 E | Product number | 230B1784 |
| Product line | SEMIPACK | Housing | SEMIPACK 5 |
| Technology | Thyristor / diode | Topology | Rectifier |
| Current class | 570 A | Voltage class | 1600 V |
| Surge current | 15500 A |
Product status |
In production |
