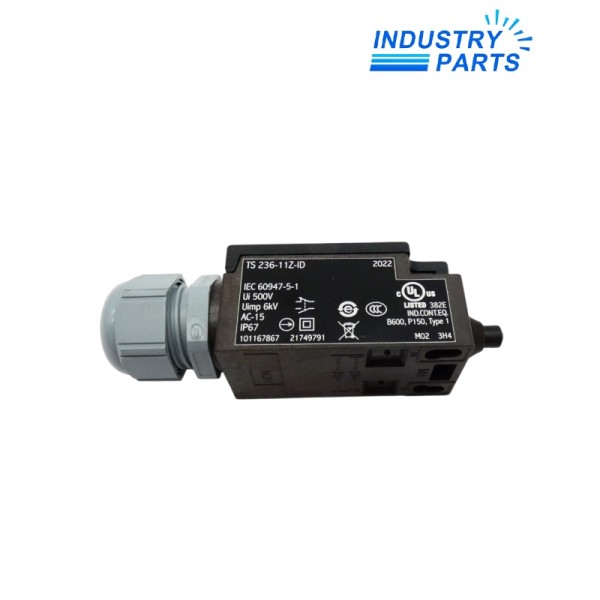

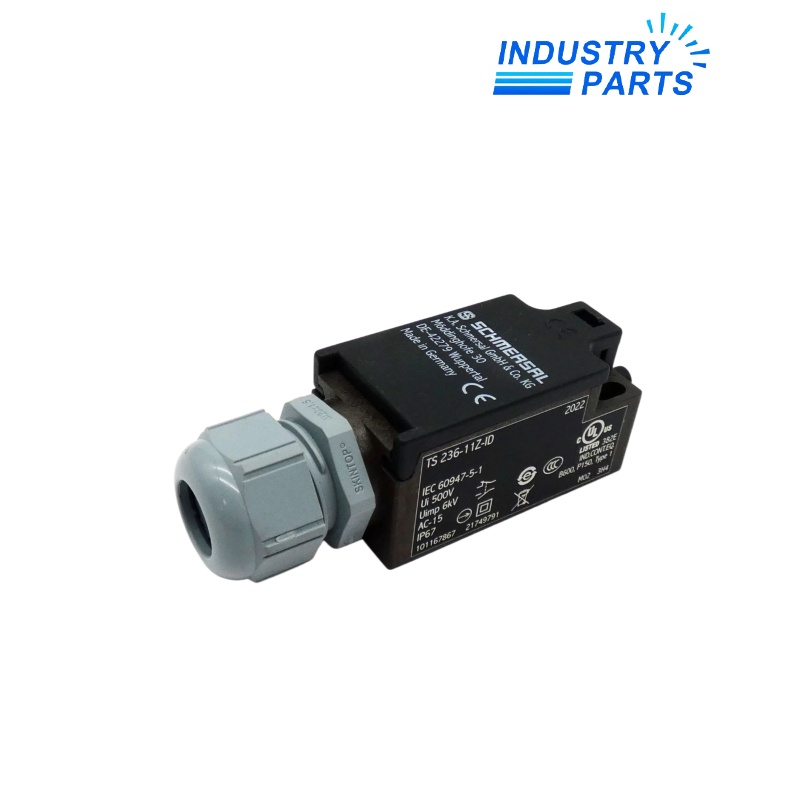

Schmersal TS 236-11Z-ID Safety Position Switch

Schmersal TS 236-11Z-ID Safety Position Switch

Schmersal TS 236-11Z-ID Safety Position Switch is a safety monitoring device used to detect position and ensure safe operation of industrial machinery. Schmersal TS 236-11Z-ID Safety Position Switch features 1 NO + 1 NC contact configuration, IP65/IP67 protection, 10 A rating, 6 kV impulse withstand voltage, plunger actuator with high mechanical durability up to 20 million operations, and compliance with EN ISO 13849-1 and IEC 60947-5-1 safety standards.

Schmersal TS 236-11Z-ID Safety Position Switch is widely used in industrial automation, machine building, robotics systems, packaging equipment, and production line safety systems. Schmersal TS 236-11Z-ID Safety Position Switch is ideal for industries such as manufacturing, automotive, logistics, and process automation where reliable safety interlocking and position detection are required.

☈ Product Information

Product Name: Schmersal TS 236-11Z-ID Safety Position Switch

Product Model: TS 236-11Z-ID

Product Parameters: Safety Position Switch

Manufacturer: Schmersal

Estimated Shipping Size: 7.35x3x3cm

Weight: 0.045 kg

Contact Configuration: 1 NO + 1 NC

Rated Current (Thermal): 10 A

Utilization Category: AC-15 (230 V / 4 A), DC-13 (24 V / 1 A)

Rated Insulation Voltage: 500 V

Impulse Withstand Voltage: 6 kV

Protection Degree: IP65 / IP67

Safety Standard Compliance: EN ISO 13849-1, EN IEC 60947-5-1

Actuator Type: Plunger

Actuating Force: min. 9 N

Positive Break Force: min. 19 N

Mechanical Lifetime: 20,000,000 operations

Max Switching Frequency: 5,000/h

Housing Material: Glass-fibre reinforced plastic

Contact Material: Silver

Cable Entry: 1 × M20 × 1.5

Terminal Type: IDC termination

Wire Range: 0.75 – 2.5 mm²

Operating Temperature: -30 °C to +80 °C

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others
