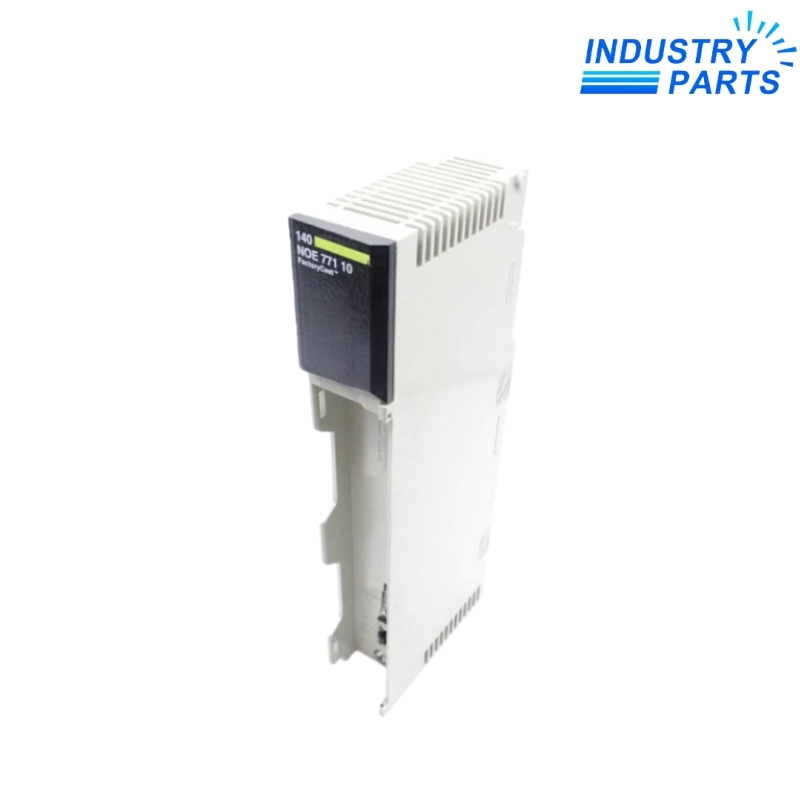

Schneider 140NOE77110 Communication Module
A configurable FactoryCast Ethernet TCP/IP network module for the Modicon Quantum platform and its documented controller release.
Overview
Schneider Electric 140NOE77110 is a Modicon Quantum Ethernet TCP/IP network module identified as Transparent Ready class C20 with configurable FactoryCast services.
The module is a legacy reference. Schneider Electric support notes distinguish it from later 140NOE771x1 hardware and warn that CPU firmware and programming-software selection affect compatibility.
An exchange record should retain the IP configuration, network role, project archive, firmware, controller model and exact module release instead of treating every Quantum Ethernet adapter as equivalent.
Specifications
Features
Quantum Ethernet integration
The module connects the supported Quantum controller architecture to an Ethernet TCP/IP network.
FactoryCast services
Embedded configurable web functionality forms part of the model identity and project record.
Firmware-dependent behavior
Schneider Electric support material documents release-specific compatibility and service corrections.
Variant separation
The exact identity must remain distinct from 140NOE77101 and 140NOE77111 variants.
Applications
Quantum control networking
Linking a supported Quantum rack to the plant Ethernet architecture.
FactoryCast diagnostics
Providing the configured embedded web service used by the approved maintenance design.
Legacy network maintenance
Preserving an existing IP plan and controller compatibility while a modernization project is prepared.
Lifecycle
Export the network record
Save the IP settings, FactoryCast configuration, firmware, controller release and project backup for 140NOE77110.
Confirm the CPU pairing
Check the exact Quantum CPU, its firmware and the programming-software hardware catalog before exchange.
Validate communications
Test configured peers, diagnostics, web service and the control-system paths required by the approved network design.
About IndustryParts
https://www.industryparts.com/Application evidence stays with 140NOE77110
IndustryParts keeps the requested model, quantity, label evidence and delivery record together so the proposed supply can be reviewed against the real installed application before dispatch.
FAQ
Which network records should be sent with a 140NOE77110 enquiry?
Include the module label, firmware, CPU model and firmware, project release, IP settings, topology, FactoryCast use and port photographs.
Can 140NOE77111 automatically replace 140NOE77110 without project review?
No. Schneider Electric names later hardware in support guidance, but catalog selection, firmware and project compatibility still require verification.
Why does CPU firmware matter for 140NOE77110?
Schneider Electric support notes document compatibility limits between this module and later 140CPU67160 firmware releases.
What should be protected before removing 140NOE77110?
Retain the IP plan, switch-port assignment, peer list, FactoryCast configuration, controller project and the site rollback procedure.
What proves 140NOE77110 is communicating correctly after service?
Confirm link status, expected IP identity, controller recognition, configured peer exchanges, diagnostics, web access and all required control-system data paths.
