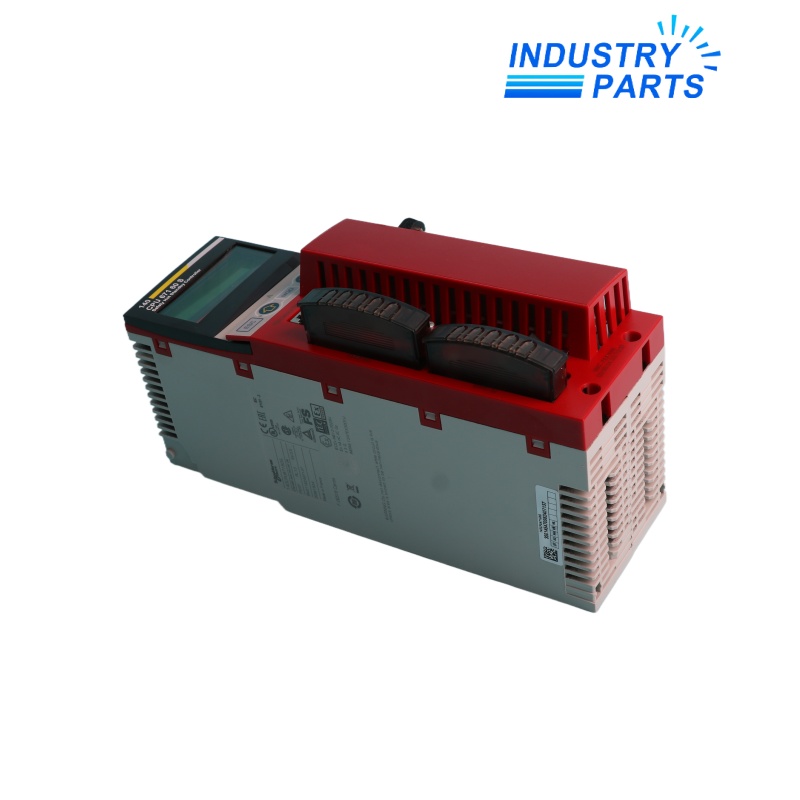

Schneider Electric 140CPU67160S Unity Hot Standby Safety Processor
A 266 MHz Modicon Quantum safety processor with 1024 kB internal RAM for documented Hot Standby safety architectures.
Overview
Schneider Electric 140CPU67160S is a Modicon Quantum Unity safety processor intended for Hot Standby process-control and safety applications.
The manufacturer identifies 1024 kB of internal RAM, a 266 MHz clock and Unity Pro XL Safety as the software environment. The processor supports a local Quantum rack and the remote-I/O architecture documented for the installed application.
Because this is a safety and redundant-controller reference, the CPU label, application backup, partner identity, safety project, communication layout and approved maintenance procedure belong to one controlled replacement record.
Specifications
Features
Redundant safety execution
The processor is built for a documented Quantum Hot Standby safety configuration rather than a stand-alone general-purpose CPU duty.
Protected application memory
Front-panel memory protection and the approved safety engineering workflow help keep the validated application under control.
Service diagnostics
The front display and local indicators support processor-state and communication review during controlled maintenance.
Planned migration path
Schneider Electric names redundant M580 safety processors as the successor family, with engineering conversion required.
Applications
Process safety shutdown
Running validated safety logic where redundancy and controlled fail response are part of the safety lifecycle.
Hot Standby process control
Maintaining a paired Quantum controller architecture with documented primary and standby roles.
Quantum modernization planning
Capturing the existing remote I/O, communication and safety-project boundary before an M580 safety migration.
Lifecycle
Preserve the safety baseline
Archive the validated application, signatures, firmware, rack map and Hot Standby configuration before removal.
Match the redundant pair
Compare both CPU labels, memory devices, communication modules and synchronization state before installing 140CPU67160S.
Return through proof testing
Restore only the approved project, confirm partner synchronization and complete the authorized safety-function tests.
About IndustryParts
https://www.industryparts.com/Application evidence stays with 140CPU67160S
IndustryParts keeps the requested model, quantity, label evidence and delivery record together so the proposed supply can be reviewed against the real installed application before dispatch.
FAQ
What evidence should accompany a 140CPU67160S enquiry?
Provide both processor labels, firmware, Unity Pro XL Safety version, safety-project backup, rack map, Hot Standby topology and clear front-panel photographs.
Can a standard Quantum CPU replace 140CPU67160S?
No. The safety execution, TÜV SIL 3 certification and Hot Standby role are part of this exact processor selection.
What should be checked before moving 140CPU67160S to an M580 safety platform?
Review remote-I/O support, communications, memory use, safety signatures, redundant architecture and the Schneider Electric conversion instructions for the selected successor CPU.
Why must the partner processor be documented with 140CPU67160S?
The installed pair shares the validated redundant-control context; hardware identity, firmware, project and synchronization behavior must be evaluated together.
What proves 140CPU67160S is ready after service?
Confirm the correct safety project and signature, stable Hot Standby synchronization, healthy communications, expected diagnostics and passed authorized safety proof tests.
