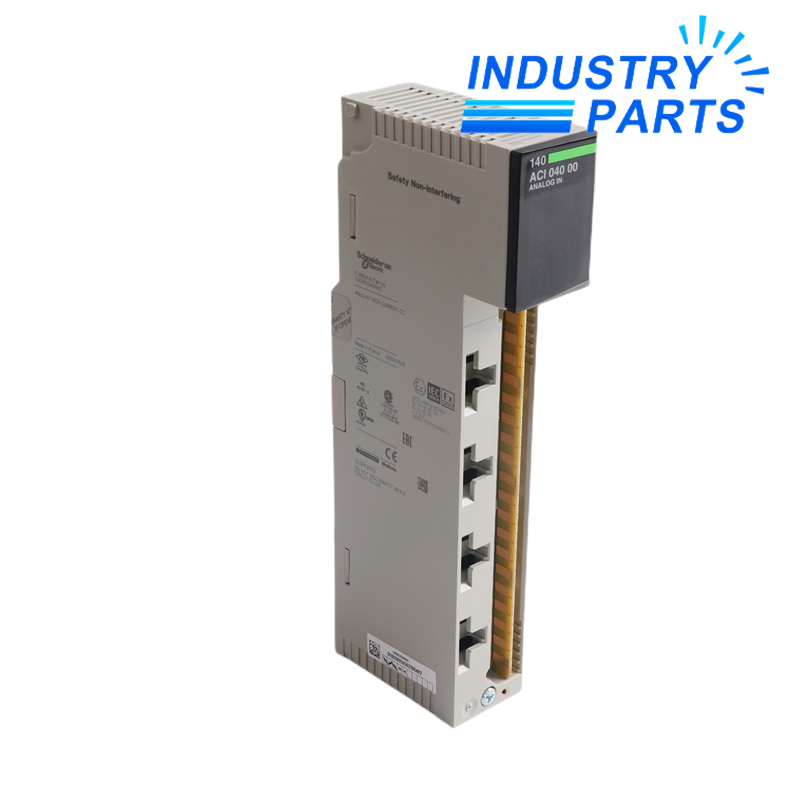

Schneider Electric 140ACI04000C 16-Channel Multirange Analog Input Module
A severe-environment Modicon Quantum multirange analog input module with sixteen process-signal channels.
Product Profile
140ACI04000C
A severe-environment Modicon Quantum multirange analog input module with sixteen process-signal channels.
Schneider Electric 140ACI04000C is a conformal-coated Modicon Quantum analog input module with sixteen multirange channels.
The base design supports current and voltage measurement ranges. The final C is part of the environmental execution and should remain visible in the purchase identity.
A replacement record should state the configured range, wiring arrangement, scaling and alarm treatment for every active channel.
Technical Data
System Role
Export channel engineering
Record range, scaling, wiring, alarm limits and status treatment for each 140ACI04000C input.
Preserve the C execution
Match the full label and environmental requirement rather than supplying the uncoated base reference.
Calibrate the restored path
Inject traceable points across every used range and retain controller readings and alarm results.
Compatibility
Multirange acquisition
The input design supports several process-current and voltage ranges rather than one fixed signal type.
Sixteen-channel density
A full channel schedule can be consolidated in one Quantum module.
Coated execution
The C suffix identifies the severe-environment version and must remain part of the exact reference.
Migration awareness
The named X80 successor has eight inputs, making channel redistribution part of a conversion.
Applications
Process-current measurement
Acquiring 0–20 mA or 4–20 mA transmitter signals with documented scaling.
Mixed analog cabinet duties
Using supported voltage and current ranges where the configured channel plan is controlled.
Harsh-environment rack service
Applying the conformal-coated execution where the cabinet specification calls for it.
About IndustryParts
https://www.industryparts.com/Application evidence stays with 140ACI04000C
IndustryParts keeps the requested model, quantity, label evidence and delivery record together so the proposed supply can be reviewed against the real installed application before dispatch.
FAQ
Q01
Which analog records should accompany a 140ACI04000C enquiry?
+
Provide the complete label, channel list, configured ranges, terminal map, scaling, source type, shielding and controller project.
Q02
What does the C suffix mean for 140ACI04000C?
+
It identifies the conformal-coated severe-environment execution and is part of the ordering identity.
Q03
Can one BMXAMI0810H replace all sixteen channels of 140ACI04000C?
+
No. The named successor has eight inputs, so migration requires channel allocation and platform engineering.
Q04
Why must each range be captured before removing 140ACI04000C?
+
A module can serve different current and voltage duties; the installed configuration determines how raw values are interpreted.
Q05
How should 140ACI04000C be verified after service?
+
Apply traceable low, mid and high test points on every used channel and confirm scaling, status, alarms and control-system values.
