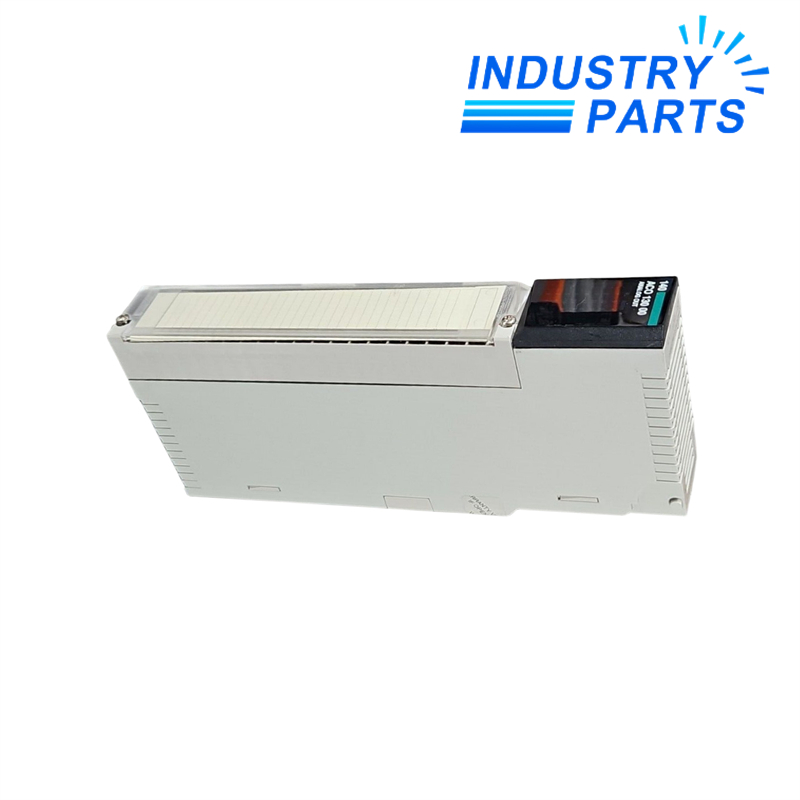

Schneider Electric 140ACO13000C Eight-Channel Analog Output Module
A conformal-coated Modicon Quantum analog output module with eight process-current channels.
Product Profile
140ACO13000C
A conformal-coated Modicon Quantum analog output module with eight process-current channels.
Schneider Electric 140ACO13000C is the conformal-coated Modicon Quantum analog output module with eight channels for 0–20 mA or 4–20 mA service.
The full code distinguishes the severe-environment execution from 140ACO13000. The C suffix should remain visible in the enquiry, receiving and installation records.
Each output loop should be documented by destination, configured range, scaling, safe-state behavior and terminal assignment before module exchange.
Technical Data
System Role
Archive the output plan
Save each 140ACO13000C channel destination, range, scaling, fault state and terminal assignment.
Protect the process
Place affected loops in the approved safe condition and isolate power before handling field wiring.
Prove every command path
Test commanded values, loop current, receiving-device response and the defined loss-of-signal behavior.
Compatibility
Eight process-current loops
The module provides a compact current-output population for the Quantum platform.
Selectable current range
The configured 0–20 mA or 4–20 mA range must follow the original loop engineering.
Severe-environment identity
Conformal coating is encoded by the terminal C and belongs to the exact model record.
Same-count successor guidance
Schneider Electric names an eight-output severe-environment X80 reference, with platform conversion still required.
Applications
Control-valve commands
Driving documented current loops to positioners within the approved control strategy.
Variable-speed references
Providing scaled current commands where the external drive interface accepts the configured range.
Process setpoint transmission
Sending isolated system values to compatible field equipment through controlled analog loops.
About IndustryParts
https://www.industryparts.com/Application evidence stays with 140ACO13000C
IndustryParts keeps the requested model, quantity, label evidence and delivery record together so the proposed supply can be reviewed against the real installed application before dispatch.
FAQ
Q01
What loop information should accompany a 140ACO13000C request?
+
Include the complete label, eight-channel schedule, configured ranges, destinations, safe states, terminal map and controller project.
Q02
Why must the C suffix be retained for 140ACO13000C?
+
It identifies the conformal-coated severe-environment execution and separates it from the uncoated base model.
Q03
Is BMXAMO0802H a direct Quantum-rack exchange for 140ACO13000C?
+
No. It is the X80 successor named by Schneider Electric and requires platform and wiring conversion.
Q04
What process precautions apply before removing 140ACO13000C?
+
Put all affected analog commands in their approved safe condition, isolate the loops and document the final output values.
Q05
How should 140ACO13000C be accepted after replacement?
+
Command traceable values across every used channel and confirm actual loop current, receiving-device response, alarms and safe-state behavior.
