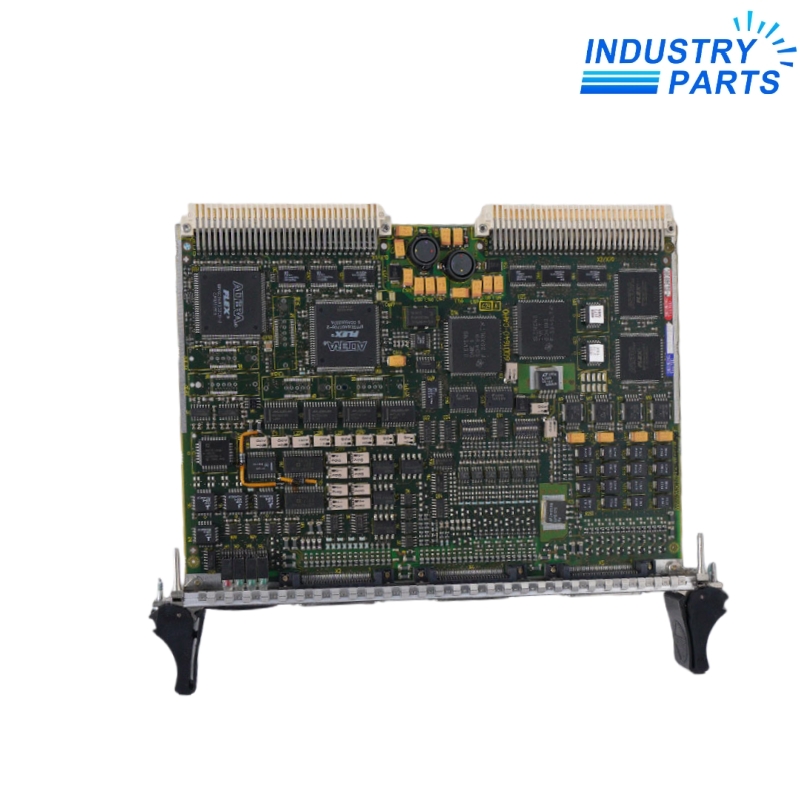

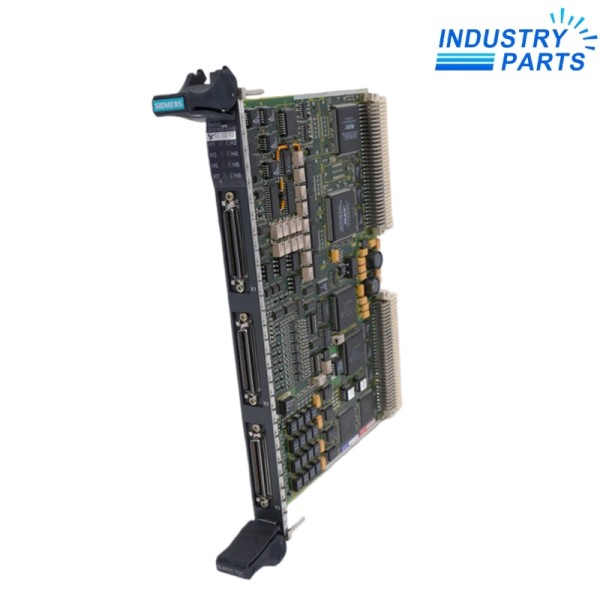

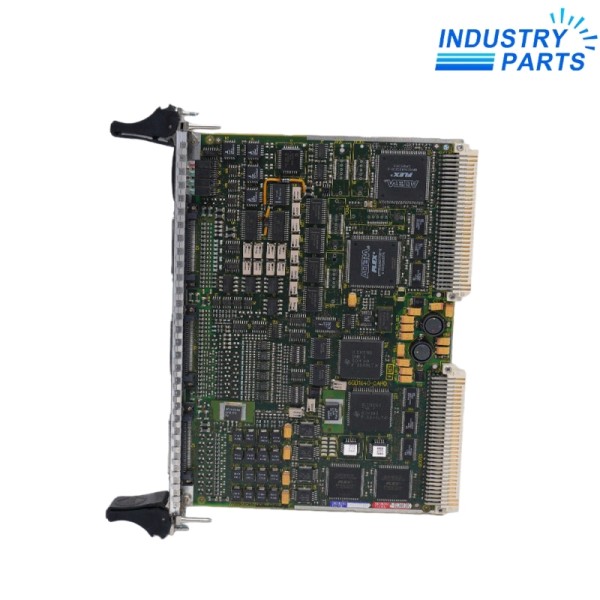

Siemens 6DD1640-0AH0 SIMATIC TDC SM500 Signal Module
01Technical Summary
Siemens 6DD1640-0AH0 is the SIMATIC TDC SM500 signal module for high-performance control systems. It combines eight analog inputs, eight analog outputs, sixteen digital inputs, sixteen digital outputs, four incremental-encoder inputs and four absolute-encoder inputs on one module. The SM500 is therefore a concentrated field-signal interface whose terminal assignments, channel parameters, encoder standards, cable shielding and application software must all match the installed SIMATIC TDC configuration.
02Specifications
| Manufacturer | Siemens |
|---|---|
| Article Number | 6DD1640-0AH0 |
| Product Designation | SM500 |
| System | SIMATIC TDC |
| Analog Inputs | 8 differential channels, -10 to +10 V |
| Analog Input Resolution | 12 bit |
| Analog Input Resistance | 20 kOhm |
| Analog Input Filter | 34 kHz |
| Analog Outputs | 8 channels, -10 to +10 V |
| Analog Output Current | Up to +/-10 mA per channel |
| Analog Output Resolution | 12 bit |
| Digital Inputs / Outputs | 16 inputs / 16 outputs |
| Incremental Encoder Inputs | 4 |
| Absolute Encoder Inputs | 4 |
| Status Indication | 6 LEDs |
| Approximate Analog Output Conversion | 4 microseconds per channel |
| Approximate Analog Input Conversion | 20 microseconds per channel |
03Features
Key Functions
- Consolidates analog, digital and encoder signals for demanding SIMATIC TDC control applications.
- Eight bipolar voltage inputs acquire process or drive-related feedback with 12-bit conversion.
- Eight bipolar voltage outputs provide setpoints or control signals with short-circuit protection to ground.
- Sixteen digital inputs and sixteen digital outputs support fast discrete signal exchange in the engineered module application.
- Four incremental and four absolute encoder inputs provide multiple position or speed feedback paths.
- LED indication supports local status checks during commissioning and troubleshooting.
Identification
- Manufacturer: Siemens
- Model: 6DD1640-0AH0
- Product Type: SIMATIC TDC SM500 mixed-signal and encoder module
- Status: Exact SM500 system review
04Compatibility
- Use only in a SIMATIC TDC hardware configuration that supports the SM500 module and its channel addressing.
- Verify each terminal assignment; analog, digital, incremental-encoder and absolute-encoder terminals are not interchangeable.
- Match encoder supply, interface standard, signal levels, resolution, coding, clock rate, cable length, shielding and grounding.
- Confirm the configured channel scaling, conversion timing, diagnostics and application-block assignments in the engineering project.
- Check the external load against the +/-10 mA analog-output capability and apply the documented short-circuit conditions.
- Do not substitute a similar mixed-signal board solely by channel count; connector pinout, timing and software addressing are system-specific.
05Replacement
- Preserve the complete SIMATIC TDC project and record the module slot, connector wiring, channel use and encoder parameters.
- Label every field cable before removal because the SM500 combines several signal technologies on one module.
- Inspect shields, grounds, encoder supplies and external signal conditioning before exchanging the module.
- After installation, validate analog scaling and polarity, every digital state, encoder direction and count behavior, diagnostics and application timing.
- Confirm current Siemens spare-part availability and repair options for the exact 6DD1640-0AH0 article.
06FAQ
What is Siemens 6DD1640-0AH0?
It is the SIMATIC TDC SM500 signal module combining analog, digital and encoder interfaces.
How many analog channels are included?
The module provides eight analog inputs and eight analog outputs, with bipolar -10 to +10 V signal ranges.
What encoder interfaces are available?
The SM500 product configuration includes four incremental-encoder inputs and four absolute-encoder inputs.
Are the analog channels isolated?
The documented analog inputs and outputs are not galvanically isolated, so grounding and potential relationships require careful engineering.
Can another mixed-signal module replace the SM500 directly?
Not by channel count alone. The TDC slot, connector pinout, timing, encoder standards and application configuration must all be compatible.
What should be tested after replacement?
Test analog range and polarity, every digital channel, encoder supplies and direction, scaling, diagnostics and the complete control application under safe commissioning conditions.
