Places 60 fixed digital points in a 175 mm-wide compact CPU.
01
Key Information

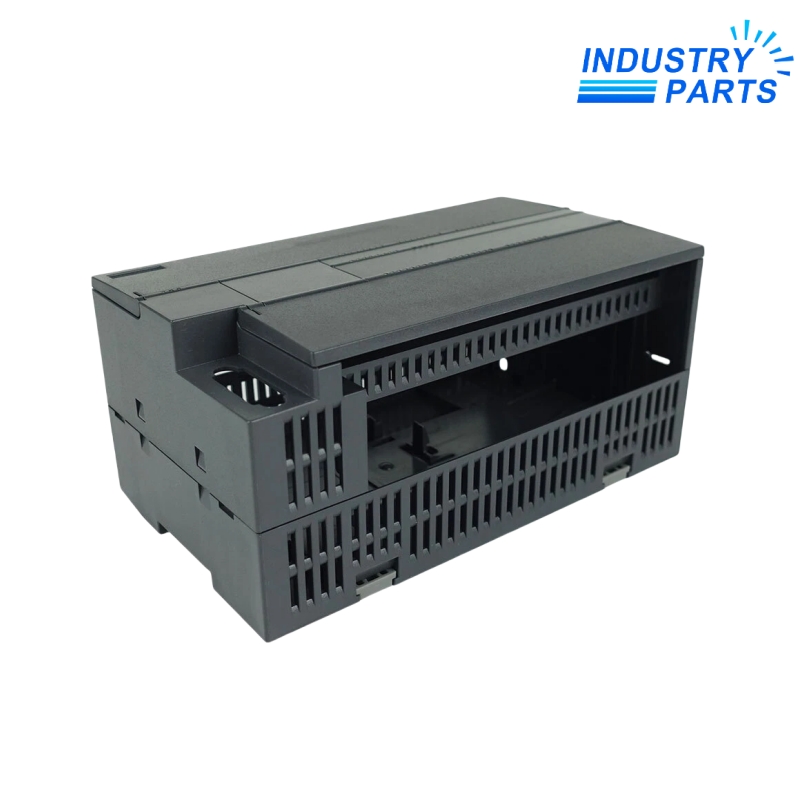

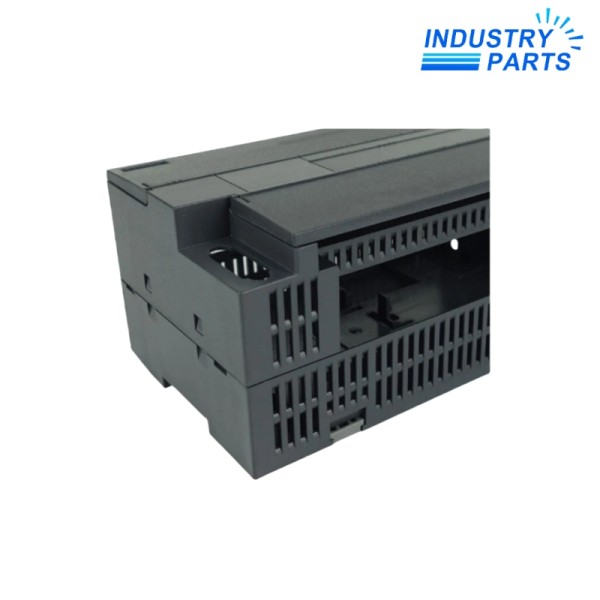

6ES7288-1CR60-0AA0 is the SIMATIC S7-200 SMART CPU CR60 with AC supply, 24 V DC inputs and relay outputs.
It integrates 36 digital inputs and 24 relay outputs rated 2 A, using an 85 to 264 V AC supply at 47 to 63 Hz.
The exact 0AA0 CPU provides 12 KB program memory and 8 KB data memory and is programmed with STEP 7 Micro/WIN SMART.
02
Functions
Provides relay outputs for diverse field loads within the published electrical limits.
Includes an integrated 24 V DC sensor supply rated up to 300 mA.
Executes bit operations at a typical 150 ns per instruction.
03
Specifications
Manufacturer
Siemens
Exact model
6ES7288-1CR60-0AA0
Product designation
CPU CR60 AC/DC/Relay
Onboard inputs
36 digital inputs, 24 V DC
Onboard outputs
24 relay outputs, 2 A
Supply voltage
85 to 264 V AC
Line frequency
47 to 63 Hz
Program memory
12 KB
Data memory
8 KB
Sensor supply
24 V DC, 300 mA maximum
Dimensions
175 × 100 × 81 mm
Engineering software
STEP 7 Micro/WIN SMART
