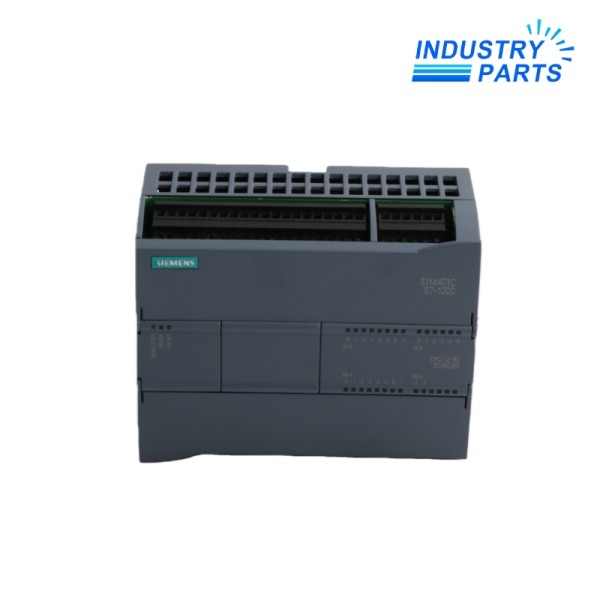

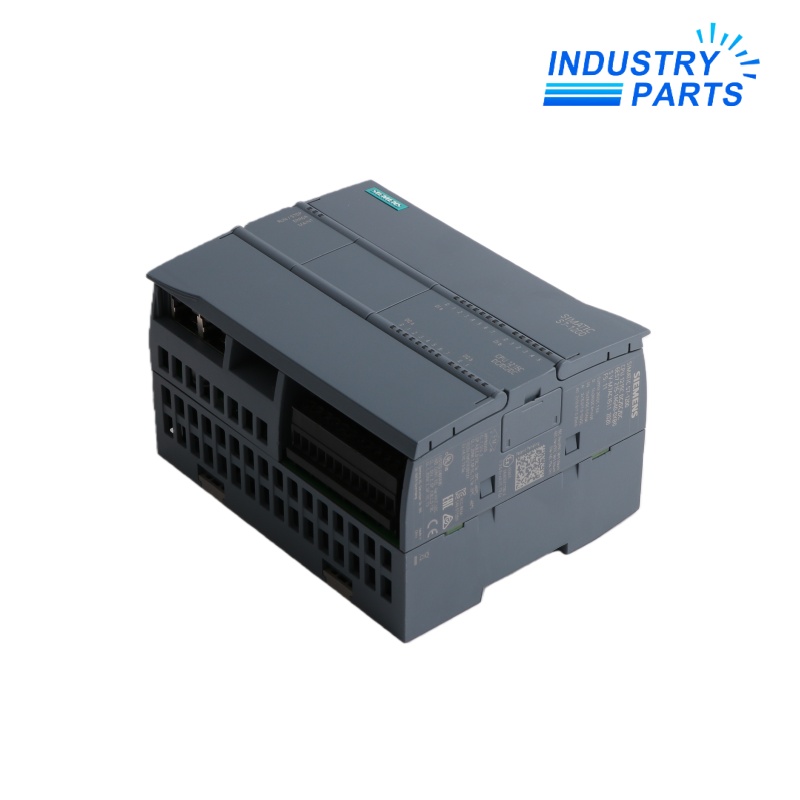

Siemens 6ES7215-1AG40-0XB0 SIMATIC S7-1200 CPU 1215C
ManufacturerSiemensModel6ES7215-1AG40-0XB0Product TypeSIMATIC S7-1200 CPU 1215C DC/DC/DC
01Technical Summary
Siemens 6ES7215-1AG40-0XB0 is a standard SIMATIC S7-1200 CPU 1215C compact controller. It provides a 24 V DC supply architecture, 14 integrated digital inputs, 10 transistor outputs, two analog inputs, two analog outputs, two PROFINET ports, and 200 KB of work memory for compact machine and process automation.
Configuration ControlVerify the complete article number, installed hardware, electrical design, firmware, communication, wiring, safety requirements and project configuration before ordering.
02Specifications
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7215-1AG40-0XB0 |
| Product Type | SIMATIC S7-1200 CPU 1215C DC/DC/DC |
| Power Supply | 20.4-28.8 V DC |
| Integrated Digital Inputs | 14 x 24 V DC |
| Integrated Digital Outputs | 10 x 24 V DC transistor, 0.5 A |
| High-Speed Outputs | 4, up to 100 kHz pulse output |
| Integrated Analog Inputs | 2 x 0-10 V DC |
| Integrated Analog Outputs | 2 x 0-20 mA DC |
| PROFINET | Two-port interface |
| Work Memory | 200 KB |
| Integrated Load Memory | 4 MB |
| Firmware in Current Data Sheet | V4.7 |
| Engineering Software | STEP 7 V20 or higher for the current firmware record |
| Typical Power Loss | 12 W |
| Degree of Protection | IP20 |
03Features
Key Functions
- Executes LAD, FBD and SCL user programs for compact automation.
- Integrated high-speed counters and four pulse outputs support counting and positioning tasks within documented limits.
- Two analog inputs and two analog outputs support basic process-signal integration without separate modules.
- Two PROFINET ports support controller and device functions in the engineered network.
- PID, web-server, trace, diagnostics and access-protection functions support operation and maintenance.
- The controller can be expanded with a signal board, signal modules and communication modules within Siemens configuration limits.
Product Identity
- Manufacturer: Siemens
- Model: 6ES7215-1AG40-0XB0
- Product Type: SIMATIC S7-1200 CPU 1215C DC/DC/DC
- Page Status: New HTML preview
04Compatibility
- Confirm the current STEP 7 release for the installed CPU firmware before opening or downloading the project.
- Match the DC/DC/DC electrical design; AC-supply or relay-output CPU variants are not direct wiring replacements.
- Verify signal modules, communication modules, signal board, HMI, drives, PROFINET devices, memory card and security settings.
- This is a standard CPU 1215C and must not be used as a safety-equivalent substitute for CPU 1215FC.
- Preserve the IP configuration, PROFINET device name, module layout, technology objects, passwords and retentive data.
05Replacement & Lifecycle
- The current Siemens record lists the product as active and shows a phase-out date of 1 November 2026. Recheck the current status when ordering.
- Back up the complete TIA Portal project and document the firmware, memory card, module layout, network configuration and wiring.
- Review program-memory utilization and software compatibility before moving an older project to the current CPU release.
- A change to S7-1200 G2 or another CPU family requires an engineered migration rather than a part-number substitution.
- After replacement, verify diagnostics, digital and analog I/O, PROFINET, HMI, drives, technology functions, alarms, interlocks and machine sequence.
06Applications
Typical Uses
- Compact machine and process control with integrated DC I/O.
- Packaging, conveying, material handling, pump, fan and skid automation.
- Networked automation with PROFINET I/O, HMI and drives.
- Counting, pulse-output, positioning and PID applications within the documented limits.
Selection Boundary
- Match the complete article number and DC/DC/DC electrical design.
- Confirm memory, I/O, communication, firmware and engineering-software requirements.
- Use a fail-safe CPU when the application requires certified safety functions.
FAQFrequently Asked Questions
What is Siemens 6ES7215-1AG40-0XB0?
It is a standard SIMATIC S7-1200 CPU 1215C compact controller with DC supply, transistor outputs, analog I/O and two PROFINET ports.
What integrated I/O is provided?
The CPU has 14 digital inputs, 10 transistor outputs, two 0-10 V analog inputs and two 0-20 mA analog outputs.
How much work memory is available?
The current Siemens data lists 200 KB of work memory and 4 MB of integrated load memory.
Which engineering version applies to firmware V4.7?
The current data sheet lists STEP 7 V20 or higher. Confirm the actual CPU firmware before project work.
Is this a fail-safe CPU?
No. It is a standard CPU 1215C. Safety-related applications require the appropriate fail-safe CPU and validated safety engineering.
What should be checked after installation?
Verify diagnostics, digital and analog I/O, PROFINET communication, HMI and drive links, technology functions, alarms, interlocks and the complete machine sequence.
