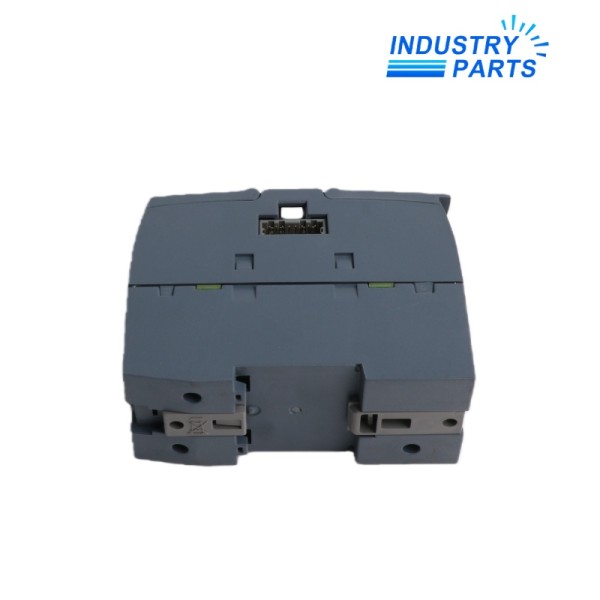

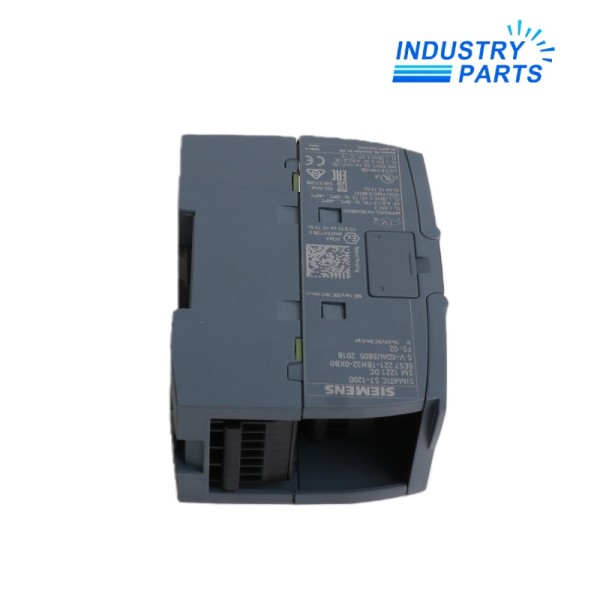

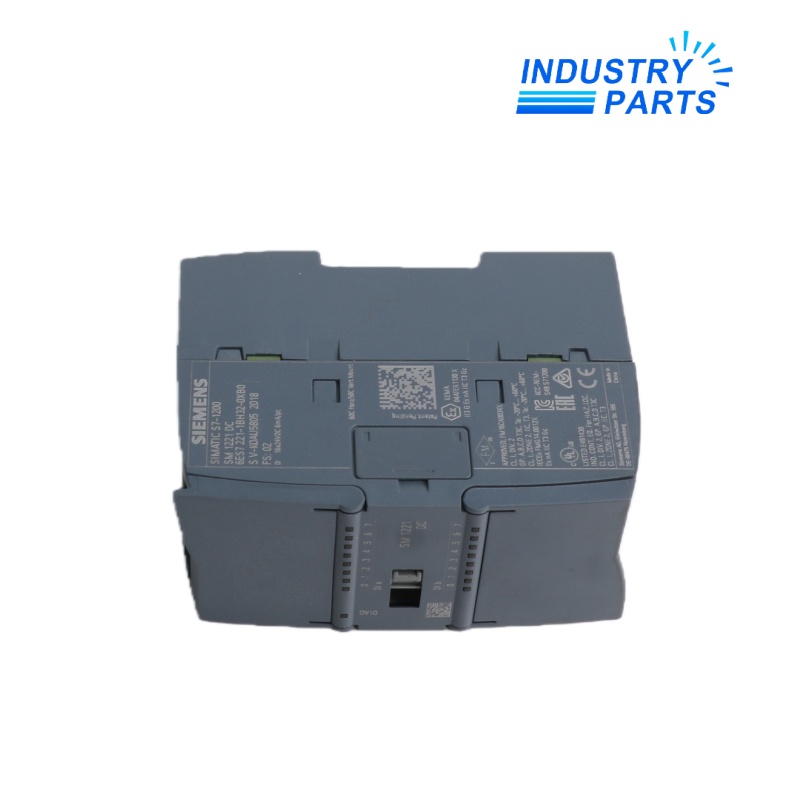

Siemens 6ES7221-1BH32-0XB0 SM 1221 16-Point Digital Input Module
A sixteen-channel S7-1200 input module for 24 V DC sink/source field signals.
Key Information
Siemens 6ES7221-1BH32-0XB0 expands an S7-1200 station with sixteen 24 V DC digital inputs. The module is the higher-density SM 1221 execution, not the eight-point 1BF32 article.
Its larger field count changes terminal planning, project allocation and conductor documentation. The complete MLFB therefore remains part of every engineering and purchasing record.
Functions
Sixteen-point collection
Consolidates sixteen discrete field states into one SM 1221 process-image block.
24 V DC state detection
Interprets the documented sink/source input signals used by compatible field devices.
Dense cabinet allocation
Supports a higher channel count where panel planning and terminal schedules have been engineered for it.
Commissioning visibility
Provides a defined point list for channel-by-channel signal proving and fault isolation.
Specifications
| Manufacturer | Siemens | Exact model | 6ES7221-1BH32-0XB0 |
|---|---|---|---|
| Series | SIMATIC S7-1200 | Module | SM 1221 digital input |
| Input count | 16 | Rated voltage | 24 V DC |
| Input configuration | Sink/source |
Selection boundary |
Complete MLFB and sixteen-point terminal record |
About IndustryParts
https://www.industryparts.com/Exact-model handling for 6ES7221-1BH32-0XB0
IndustryParts keeps the complete model label, requested quantity, application evidence and delivery requirements together so the proposed supply can be checked against the installed system before dispatch.
Installation
Plan the dense terminal field
Check conductor markers, common grouping and access for all sixteen inputs.
Protect the saved allocation
Preserve the hardware configuration and tag map before the module is removed.
Commission in logical groups
Test the input list in documented machine groups and record every discrepancy before release.
Lifecycle
Configuration control
Keep the sixteen-point hardware configuration with the current TIA Portal project.
Inspection
Review terminal tightness, cabinet environment and the condition of connected field circuits.
Replacement proof
Attach the complete functional-test sheet and module label to the service record.
Related Models
FAQ
How is 6ES7221-1BH32-0XB0 distinguished from the 1BF32 version?
It is the sixteen-input SM 1221 execution; the 1BF32 module provides eight inputs.
What should a 6ES7221-1BH32-0XB0 spare record contain?
Keep the full MLFB, CPU and firmware details, installed slot, terminal map, input commons and cabinet photographs.
Can unused channels on 6ES7221-1BH32-0XB0 be omitted from documentation?
They should still be identified as spare or reserved so future wiring changes remain controlled.
Which checks reduce commissioning risk for 6ES7221-1BH32-0XB0?
Verify supply polarity, common grouping, field voltage and the correspondence between each terminal and PLC tag.
What is the acceptance boundary for 6ES7221-1BH32-0XB0?
All sixteen configured points, diagnostics and dependent interlocks should be proven under the approved test plan.
