16 INPUTS · 16 RELAY OUTPUTS · 2 A CONTACTS

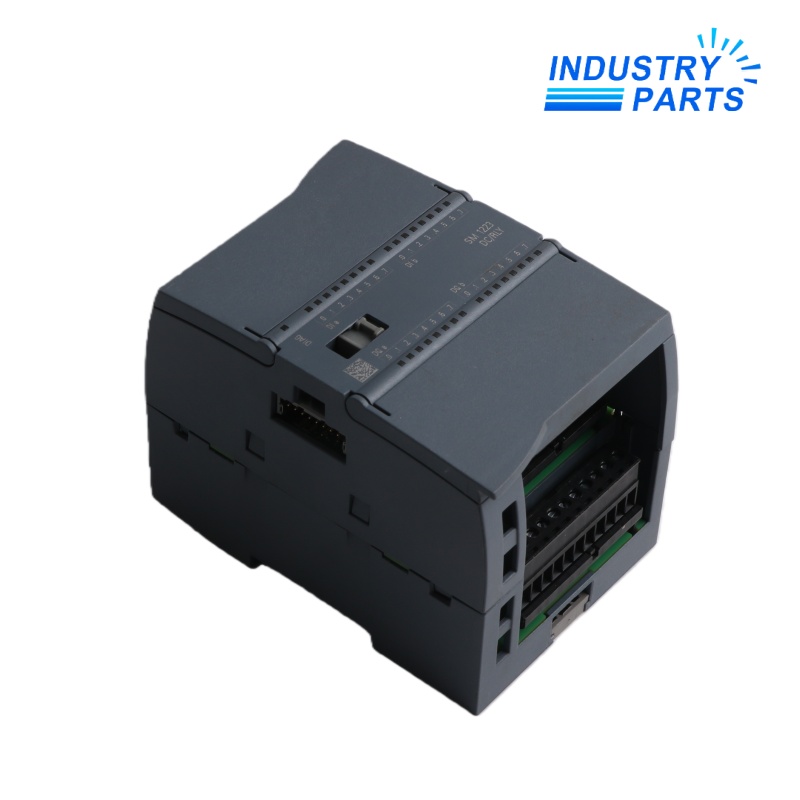

Siemens 6ES7223-1PL32-0XB0 SIMATIC S7-1200 SM 1223 Relay I/O Module
The high-density relay SM 1223 pairing sixteen 24 VDC inputs with sixteen mechanical outputs.
Product Identification
6ES7223-1PL32-0XB0 combines sixteen 24 VDC sink/source inputs with sixteen relay outputs in the S7-1200 SM 1223 family. It is the relay counterpart to the 1BL32 transistor module and is intended for field circuits that fit the published mechanical-contact limits.
The module uses a 24 VDC supply from 20.4 to 28.8 V, draws up to 180 mA from the 5 V backplane bus and dissipates 10 W typically. Cabinet thermal planning and contact-load documentation are therefore important parts of the installed record.
Engineering Data
Functions
High-density mixed I/O
Places sixteen input and sixteen relay output points in one S7-1200 expansion module.
Broad contact-voltage use
Relay outputs can serve approved AC or DC circuits after load and protection review.
Parameterizable sensing
Input delay remains adjustable in the STEP 7 hardware configuration.
Service-status visibility
Channel indicators support point checks without replacing the controlled project record.
About IndustryParts
https://www.industryparts.com/Exact identity before quotation
IndustryParts prepares 6ES7223-1PL32-0XB0 enquiries around the complete manufacturer label, requested quantity and destination. For controlled replacements, include the host-system record, field photographs and configuration evidence that apply to this exact execution.
Applications
Panel I/O concentration
Serving sixteen sensors and sixteen relay-controlled devices from one S7-1200 station.
Mixed-voltage auxiliaries
Switching appropriately protected AC and DC control loads while sensing 24 VDC field inputs.
Machine retrofit
Retaining a matched 16/16 relay topology where transistor substitution would change wiring behavior.
Lifecycle
Document duty
Record every input, relay load, group common, switching frequency, inrush and suppression device.
Review temperature
Confirm cabinet ventilation and simultaneous operating conditions against the 10 W module loss.
Complete acceptance
Prove all thirty-two points, verify field protection and archive the final STEP 7 diagnostics.
FAQ
Q01
Why should 6ES7223-1PL32-0XB0 not be confused with 6ES7223-1BL32-0XB0?
+
6ES7223-1PL32-0XB0 has 2 A relay outputs; 1BL32 has 0.5 A transistor outputs. Their load voltages, timing and protection are different.
Q02
What makes an 6ES7223-1PL32-0XB0 thermal review important?
+
Sixteen relay coils contribute to a typical 10 W power loss, so enclosure temperature and simultaneous operation must be considered.
Q03
Which records are essential before an 6ES7223-1PL32-0XB0 exchange?
+
Keep the STEP 7 archive, complete label, 32-point address map, load schedule, common wiring and cabinet thermal information.
Q04
Can 6ES7223-1PL32-0XB0 handle fast repetitive pulse duties like a transistor module?
+
Do not assume so. Mechanical relay lifetime and switching frequency must be evaluated for the actual load cycle.
Q05
How is an 6ES7223-1PL32-0XB0 service return demonstrated?
+
Correct input states, point-by-point relay operation, stable supplies, expected diagnostics and updated loop records complete acceptance.
Send the complete 6ES7223-1PL32-0XB0 label, requested quantity and destination.
