CM 1241 · RS422/485 · FREEPORT, MODBUS RTU AND USS

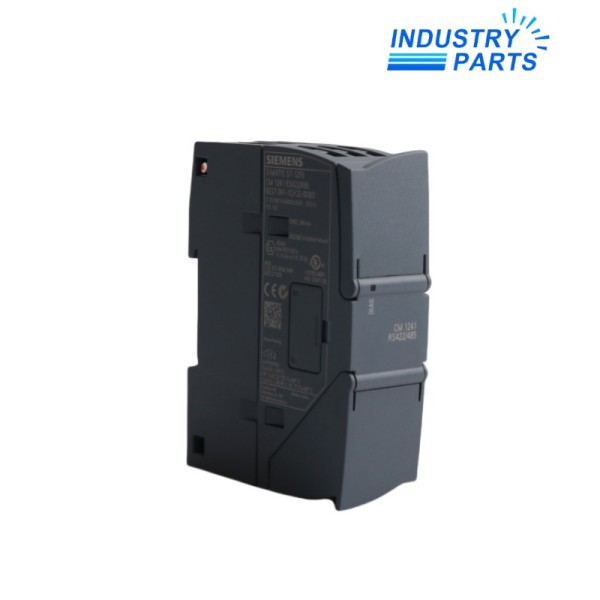

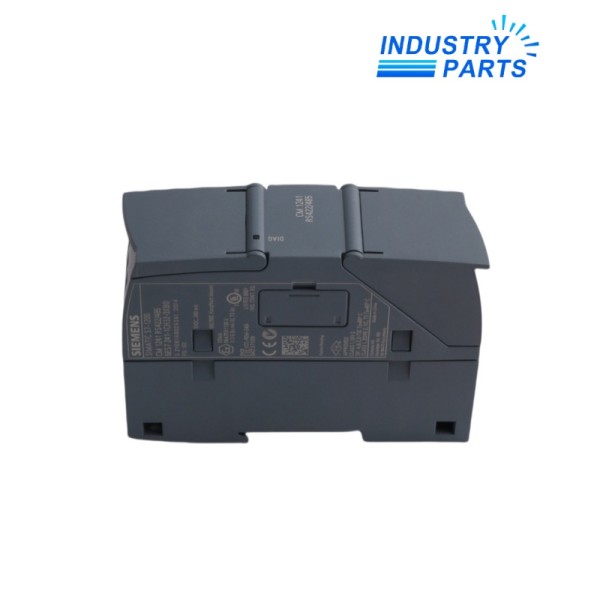

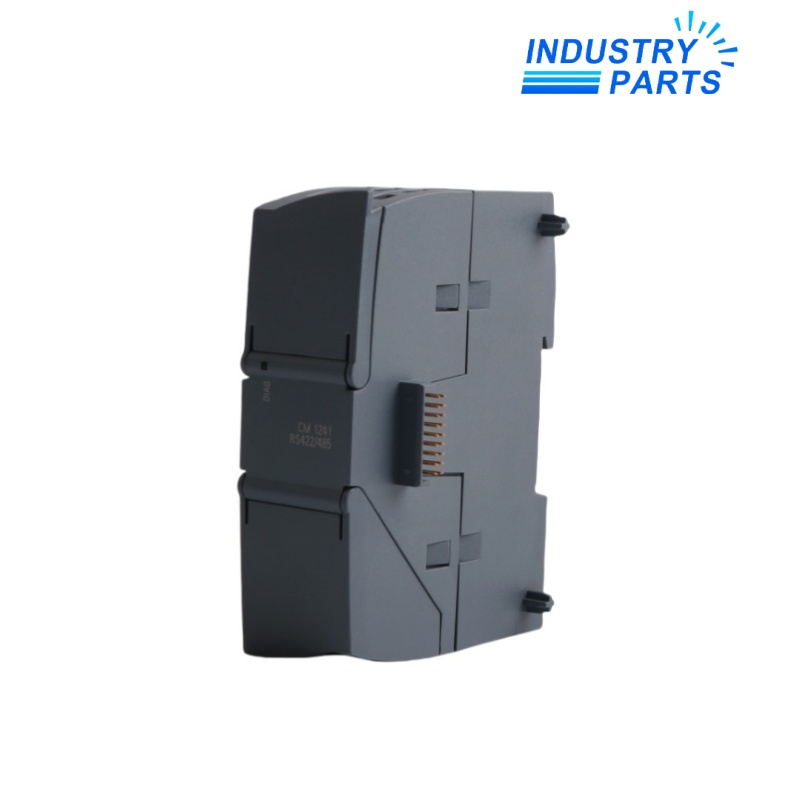

Siemens 6ES7241-1CH32-0XB0 SIMATIC S7-1200 CM 1241 RS422/485 Communication Module
An S7-1200 serial communication module for long-distance RS422/485 links and documented multi-device protocols.
Product Identification
6ES7241-1CH32-0XB0 is Siemens CM 1241 RS422/485 for SIMATIC S7-1200. The module provides one electrically isolated serial interface on a 9-pin D-sub female connector and supports Freeport, Modbus RTU and USS communication.
Siemens specifies cable length up to 1,000 m and up to 32 devices on a segment before repeaters, with Modbus slave numbers up to 247. Topology, termination, biasing, addresses and framing remain part of the controlled project record.
Engineering Data
Functions
Long-distance serial path
The RS422/485 physical layer supports substantially longer links than the RS232 execution.
Multi-protocol operation
Freeport, Modbus RTU and USS libraries cover several documented integration patterns.
Segment-aware design
Device count, termination, biasing and branch topology are engineered as one network.
Address-controlled service
Every device role and address must remain unique in the restored project.
Applications
Modbus RTU network
Connecting supported instruments or drives on a documented RS485 segment.
USS drive communication
Integrating compatible Siemens drives through the approved USS configuration.
Custom serial exchange
Using Freeport for engineered telegrams over RS422 or RS485 wiring.
Lifecycle
Survey
Record connector pinout, cable route, shield, termination, bias, node order and every device address.
Restore
Install the exact CM 1241 and load only the approved port and protocol configuration.
Test
Verify end-to-end traffic, timeout handling, fault recovery and communications with every required node.
FAQ
Which network records should accompany a 6ES7241-1CH32-0XB0 request?
Provide the CPU MLFB, TIA Portal release, slot, protocol role, baud and framing, pinout, topology, termination and node list.
Can 6ES7241-1CH32-0XB0 replace 6ES7241-1AH32-0XB0?
No. 6ES7241-1CH32-0XB0 is RS422/485 with a female connector and network topology; AH32 is point-to-point RS232.
What cable length does Siemens publish for 6ES7241-1CH32-0XB0?
The technical data lists a maximum serial cable length of 1,000 m.
How many devices can share a 6ES7241-1CH32-0XB0 segment?
Siemens lists 32 devices per segment before repeaters; the engineered network can impose additional limits.
What proves 6ES7241-1CH32-0XB0 communication is restored?
Document stable traffic to every required node, correct addresses, timeout recovery and the approved machine or process response.
