Siemens 6ES7288-3AM06-0AA0 EM AM06 Mixed Analog I/O Module
An EM AM06 mixed-signal module with four analog inputs and two analog outputs for S7-200 SMART control systems.
Product Profile

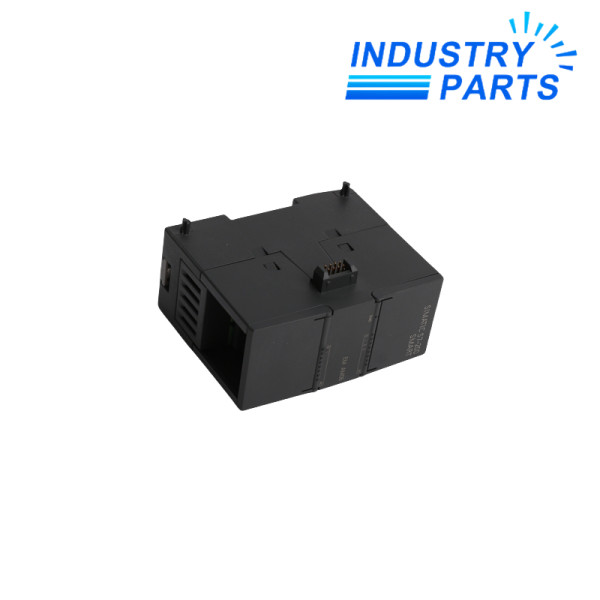

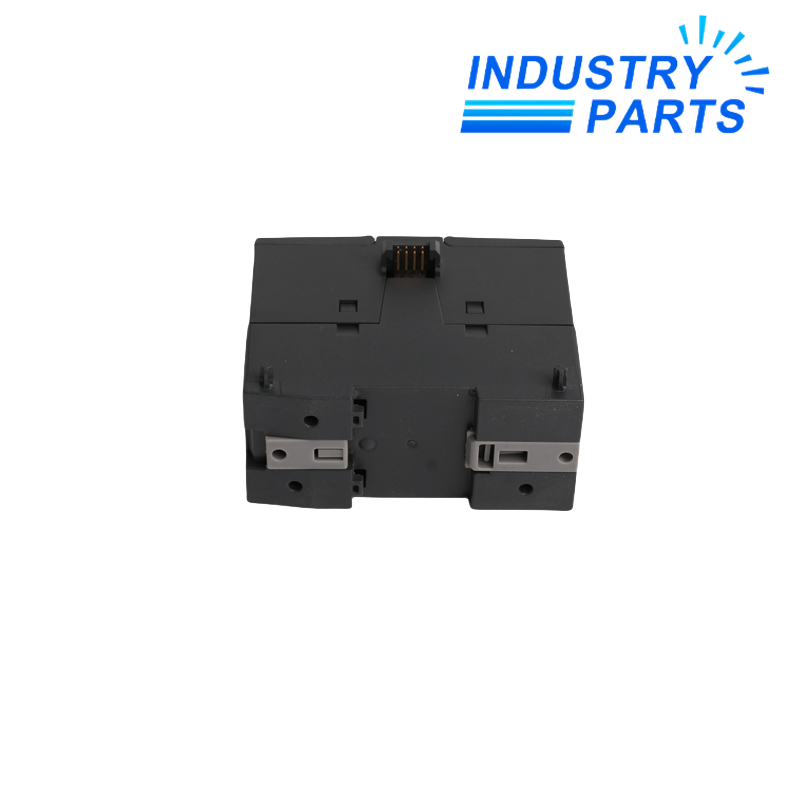

PROFILESiemens 6ES7288-3AM06-0AA0 is the SIMATIC S7-200 SMART EM AM06 expansion module with four analog inputs and two analog outputs. Its input channels support documented voltage or current ranges selected in groups of two.
The four-input/two-output structure is different from the compact AM03. Address assignment, range settings, external 24 V loading and terminal wiring must follow the installed AM06 project.
A controlled replacement keeps every input scale and both output modes visible, including commanded safe values and connected-load requirements.
Technical Data
DATASystem Role
SYSTEMCompatibility
MATCHBack up
Save the project, four input scales, two output modes, fallback values and terminal schedule.
Reconcile
Check channel-pair range selections, 24 V budget, shielding and both output loads.
Prove
Reference-test all inputs and outputs, then verify alarm, diagnostic and safe-state behavior.
Applications
APPLICATIONCompact process loop bank
Four measured variables with two analog command outputs in one station.
Machine utility control
Paired analog inputs for sensors plus two documented actuator or reference signals.
Expansion refresh
Like-for-like AM06 replacement while preserving grouped ranges and the six-channel map.
About IndustryParts
https://www.industryparts.com/Exact-model handling for 6ES7288-3AM06-0AA0
IndustryParts prepares this em am06 mixed analog i/o module enquiry with the complete label, requested quantity and installed-system evidence kept together, so the proposed supply can be compared with the actual application before dispatch.
FAQ
QUESTIONSQ01Can 6ES7288-3AM06-0AA0 be replaced directly by AM03?
No. 6ES7288-3AM06-0AA0 provides four inputs and two outputs, so channel count, addressing, power and terminal mapping differ.
Q02What grouped-range information is required for 6ES7288-3AM06-0AA0?
Record the selected range for each input pair, signal type, raw scaling, engineering units and corresponding terminal conductors.
Q03How should the 24 V budget be calculated for 6ES7288-3AM06-0AA0?
Include the module no-load current and the actual current delivered by both analog outputs.
Q04What should be tested after a 6ES7288-3AM06-0AA0 exchange?
Verify four input reference points, two output commands, polarity, scaling, diagnostics and project fallback states.
Q05What prevents AM03 and 6ES7288-3AM06-0AA0 data from being mixed?
Use the complete AM06 article number and retain its four-input/two-output channel schedule in the spare and acceptance records.
