Siemens 6ES7307-1EA01-0AA0 SIMATIC S7-300 PS 307 Power Supply
01Product Identification

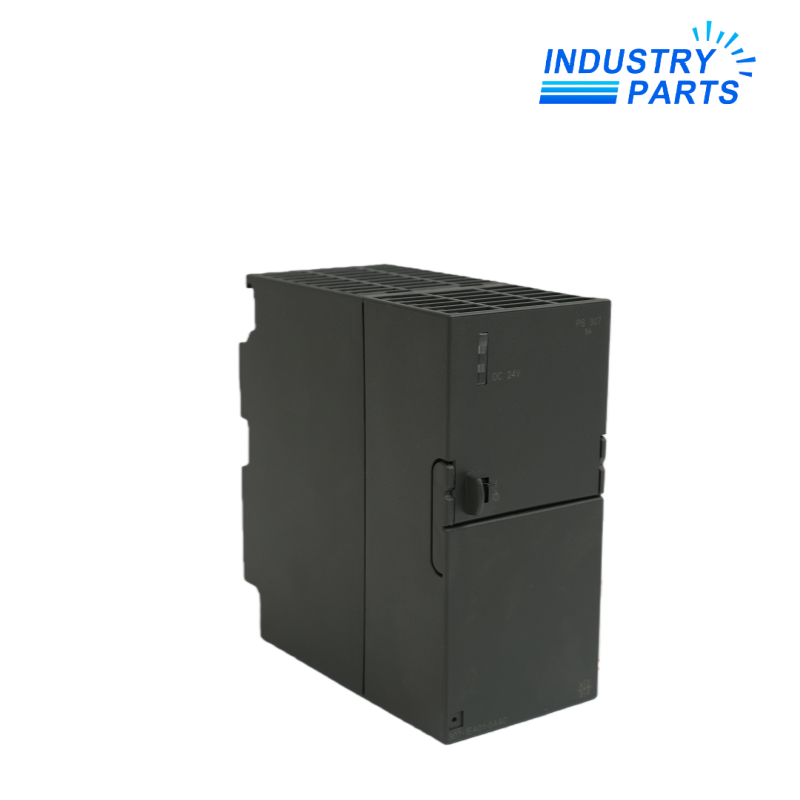

Siemens 6ES7307-1EA01-0AA0 is a regulated SIMATIC S7-300 PS 307 power supply with selectable 120 or 230 V AC input and a 24 V DC, 5 A output. It is part of the one-phase 24 V DC supply family for S7-300 and ET 200M installations.
02Key Features
Design and Functions
- Regulated 24 V DC output supplies compatible automation loads.
- Selectable 120 or 230 V AC input supports documented industrial mains systems.
- The 5 A output class is intended for appropriately calculated S7-300 or ET 200M load demand.
- Front-panel status and protective behavior support cabinet troubleshooting.
- Module format aligns with the original SIMATIC installation concept.
- Exact article-number control prevents confusion with other PS 307 current ratings.
Product Identity
Manufacturer: Siemens
Model: 6ES7307-1EA01-0AA0
Product Type: SIMATIC S7-300 PS 307 Regulated Power Supply
03Engineering Data
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7307-1EA01-0AA0 |
| Product Family | PS 307, one-phase 24 V DC supply |
| Supported Systems | SIMATIC S7-300 and ET 200M |
| Input | 120 / 230 V AC |
| Output | 24 V DC |
| Rated Output Current | 5 A |
| Country of Origin | Romania |
| Lifecycle | Product phase-out announced from 1 October 2023 |
| Quantity Unit | 1 piece |
04System Integration
- Confirm the complete 6ES7307-1EA01-0AA0 model identity against the installed nameplate and project documentation.
- Verify that the simatic s7-300 ps 307 regulated power supply is supported by the installed hardware platform and engineering software.
- Check field wiring, supply conditions, terminal assignments, protective devices, and required environmental or hazardous-area approvals.
- Preserve the approved configuration, scaling, alarms, diagnostics, addresses, and maintenance records before equipment exchange.
- Complete point-to-point checks and an approved functional commissioning test before returning the process to service.
05Applications
- SIMATIC S7-300 rack and field-circuit power.
- ET 200M station supply within the documented load limit.
- Industrial control cabinets requiring regulated 24 V DC at 5 A.
- Legacy maintenance where the exact PS 307 input and output class must be preserved.
06Lifecycle
- Siemens lists product phase-out from 1 October 2023.
- Confirm mains selection, protective devices, grounding, conductor sizes, and total 24 V DC load.
- Record all downstream loads and verify inrush demand before replacement.
- After installation, confirm output voltage under load and review controller or I/O diagnostics.
- Do not substitute a different current rating without checking dimensions, wiring, protection, thermal conditions, and system design.
FAQFrequently Asked Questions
What is
6ES7307-1EA01-0AA0 is a regulated PS 307 power supply with 120 / 230 V AC input and 24 V DC, 5 A output.
Which system is it designed for?
It belongs to the Siemens one-phase 24 V DC supply family for SIMATIC S7-300 and ET 200M.
What must be matched before ordering?
Match the complete model code, installed hardware, electrical ratings, field wiring, connector arrangement, required approvals, and project revision.
What should be recorded before replacement?
Record mains selection, input protection, grounding, output distribution, total load, inrush demand, wiring, and installation space.
How should lifecycle status be handled?
Siemens lists the article in phase-out status; use an exact spare or engineer the full power-circuit conversion.
What should be checked after installation?
Verify wiring, supply conditions, configuration, diagnostics, channel behavior, alarms, and the controlled process under the approved commissioning procedure.
