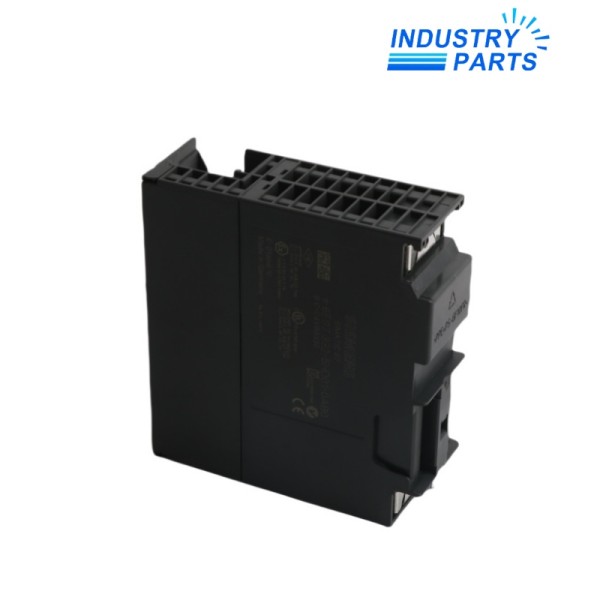

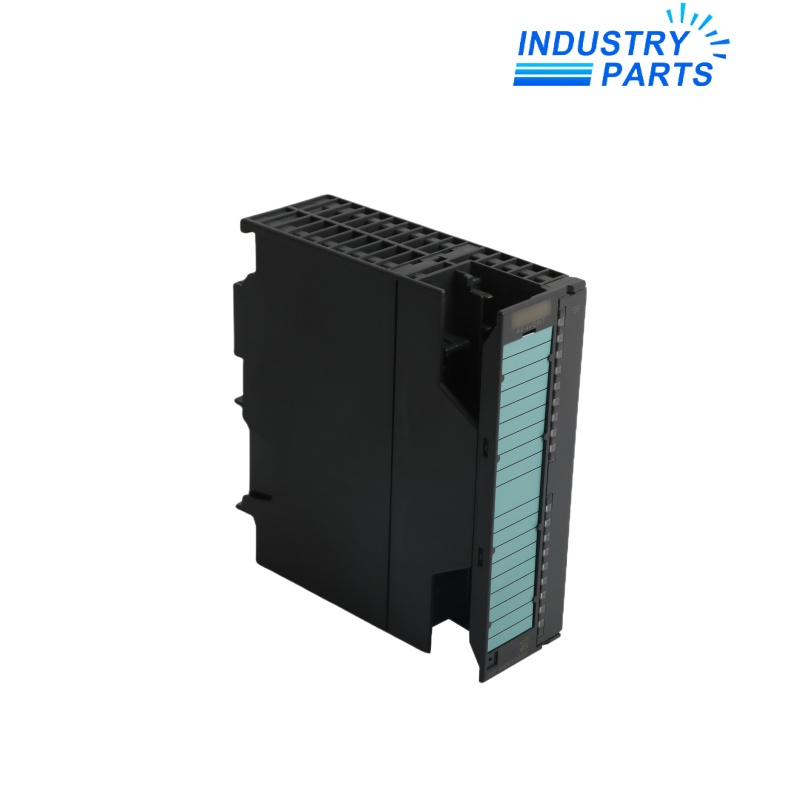

Siemens 6ES7332-5HD01-0AB0 Analog Output Module

Siemens 6ES7332-5HD01-0AB0 Analog Output Module

Item NO.: 3331669
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameSiemens 6ES7332-5HD01-0AB0 Analog Output Module
  • Item NO.3331669
  • Weight0.2200 kg = 0.4850 lb = 7.7603 oz
  • CategoryPLC
  • BrandSiemens
  • Creation Time2025-08-29
  • Siemens Analog Output Module
Siemens 6ES7332-5HD01-0AB0 | SM 332 Analog Output Module

6ES7332-5HD01-0AB0

SM 332 Analog Output Module Siemens 4 AO · 24 V DC
SIMATIC S7-300 · Isolated · Phased-out
Overview Specifications Features Applications Lifecycle FAQ Recommended Models

Overview

6ES7332-5HD01-0AB0 is an analog output module (SM 332) from Siemens' SIMATIC S7-300 PLC system. It provides 4 optically isolated analog output channels with both voltage and current output options, designed for precise control of field devices such as actuators, valves, and variable-speed drives.

The module features a resolution of 11/12 bits, supports output ranges including 0-10V, ±10V, 0-20mA, 4-20mA, and ±20mA, and includes diagnostic capabilities, short-circuit protection, and LED status indication.

The module is designed for easy removal and insertion with an active backplane bus, ensuring minimal downtime during maintenance or system upgrades. It uses a 20-pin front connector and has a compact width of 40 mm.

SIMATIC S7-300 SM 332 4 Analog Outputs Voltage & Current Isolated
Key details
  • Siemens SIMATIC S7-300 Series
  • 4 analog output channels
  • 24 V DC supply voltage
  • 11/12-bit resolution
  • 20-pin front connector

Specifications

Electrical specifications

Manufacturer Siemens
Model 6ES7332-5HD01-0AB0
Product type SM 332 Analog Output Module
Series SIMATIC S7-300
Output channels 4
Supply voltage 24 V DC
Current consumption (L+) 240 mA max (no load)
Backplane current (5 V DC) 60 mA max
Power dissipation (typical) 3 W
Resolution (max) 12 bits
Conversion time per channel 0.8 ms

Physical & environmental

Connector type 20-pin front connector
Max shielded cable length 200 m
Min load resistance (voltage) 1 kΩ
Max load resistance (current) 500 Ω
Protection Short-circuit protection
Certifications CE, cULus
Note: This product has been phased-out by Siemens. The effective cancellation date is 01.10.2025.

Features

Output & control capabilities

  • 4 isolated analog outputs — Provides precise voltage (0-10V, 1-5V, ±10V) and current (0-20mA, 4-20mA, ±20mA) output signals.
  • High resolution — 12-bit resolution for 0-10V and 0-20mA ranges; 11-bit + sign for bipolar ranges.
  • Short-circuit protection — Voltage outputs are short-circuit protected, safeguarding the module and connected devices.

Diagnostics & maintenance

  • Diagnostic capability — Parameterizable diagnostic alarms and LED indication (group error SF) enable rapid fault identification.
  • Removable with active backplane bus — Allows module removal and insertion without system shutdown.
  • Substitute value configuration — Supports parameterizable substitute values for fail-safe output behavior.

Applications

The SM 332 analog output module is widely deployed in industrial automation applications requiring precise analog signal generation.

Control valve positioning
Actuator control
Variable speed drives (VSD)
Process setpoint control
Flow & pressure regulation
Temperature control loops
Motor starters
Level indication systems
Typical industries: Industrial processing, material handling, chemical manufacturing, power generation, water treatment, and pharmaceutical production.
Key applications: The SM 332 is ideal for controlling devices with multiple states, such as valves with variable positioning and motors with variable speeds, in S7-300 based automation systems.

Lifecycle

Phased-out no longer in active production — limited availability

Product status: The 6ES7332-5HD01-0AB0 has been phased-out by Siemens and is no longer in active production. The effective product cancellation date is 01.10.2025.

Spare parts & support: Replacement units and accessories are available through Siemens' standard support channels and authorized distributors, but availability may be limited. For critical systems, procuring spare units while available is advisable.

Replacement & migration:

Recommended successor: Siemens recommends migrating to the S7-1500 series or newer analog output modules for long-term support and availability.
  • Consider migrating to S7-1500 TIA Portal platform for continued support and enhanced functionality.
  • The S7-1500 offers equivalent analog output modules with improved performance and diagnostics.
  • When replacing the 6ES7332-5HD01-0AB0 with a successor, verify the output range configuration and wiring compatibility.
Related models: 6ES7332-5HD01-0AB0 (legacy), S7-1500 Analog Output Modules (successor family)

Recommendation: For new installations, we strongly recommend migrating to S7-1500 or other current S7 platform. For existing S7-300 systems, procuring spare units while available is advisable.

FAQ – Frequently Asked Questions

Q1: Is the 6ES7332-5HD01-0AB0 still available for new installations?

No. Siemens has phased out this product and it is no longer in active production. For new installations, we recommend migrating to S7-1500 or other current platforms.

Q2: How many analog output channels does this module have?

It has 4 isolated analog output channels, supporting both voltage and current output ranges.

Q3: What output ranges are supported?

Voltage: 0-10V, 1-5V, ±10V. Current: 0-20mA, 4-20mA, ±20mA.

Q4: Does the module have diagnostic capabilities?

Yes, it features parameterizable diagnostic alarms, LED status indication (SF), and diagnostic information is readable.

Q5: What type of connector does this module require?

It requires a 20-pin front connector, which is compatible with S7-300 series connection systems.
