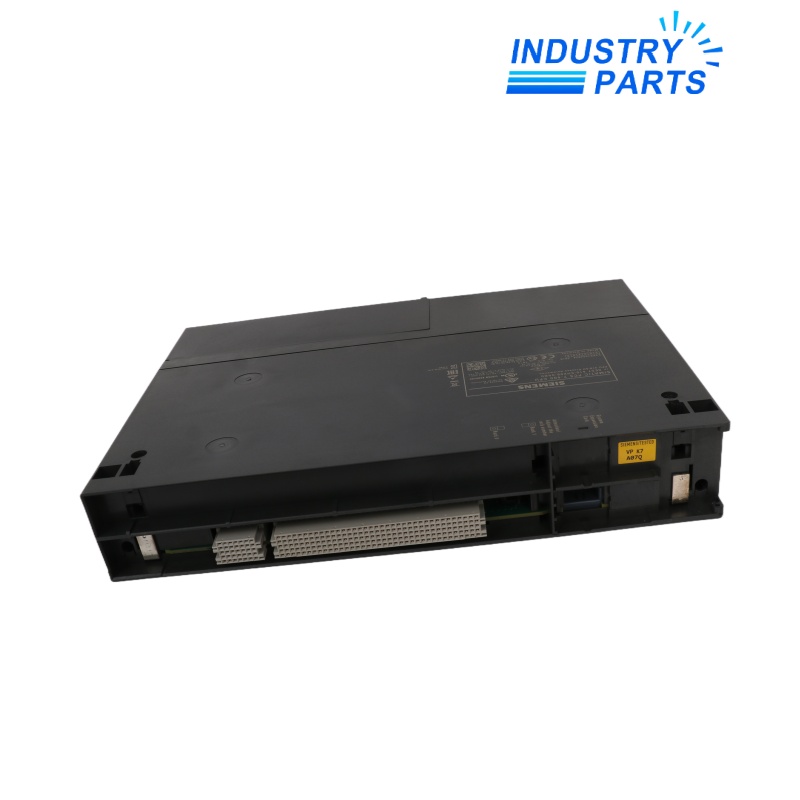

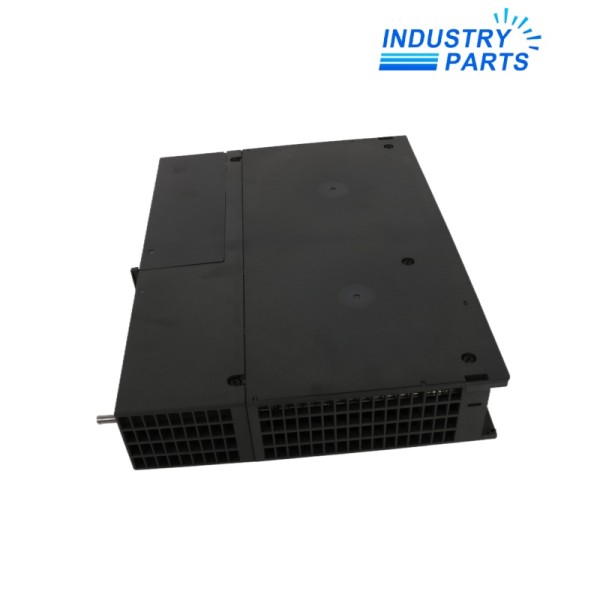

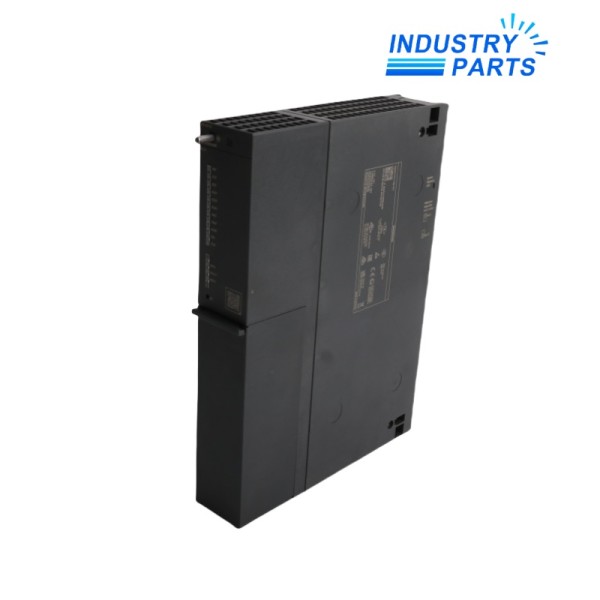

Siemens 6ES7410-5HX08-0AB0 CPU Central Processing Unit

Siemens 6ES7410-5HX08-0AB0 CPU Central Processing Unit

Item NO.: 3351353
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameSiemens 6ES7410-5HX08-0AB0 CPU Central Processing Unit
  • Item NO.3351353
  • Weight1.1000 kg = 2.4251 lb = 38.8014 oz
  • CategoryPLC
  • BrandSiemens
  • Creation Time2025-09-10
  • SIMATIC CPU 410-5H process-automation central processing unit
Siemens 6ES7410-5HX08-0AB0 SIMATIC CPU 410-5H Process Automation CPU

Siemens 6ES7410-5HX08-0AB0 SIMATIC CPU 410-5H Process Automation CPU

ManufacturerSiemensModel6ES7410-5HX08-0AB0Product TypeSIMATIC CPU 410-5H process-automation central processing unit

01Overview

Siemens 6ES7410-5HX08-0AB0 is the SIMATIC CPU 410-5H for process-automation applications in S7-400, S7-400H and appropriately engineered F/FH systems. The current hardware provides two PROFINET interfaces, one PROFIBUS DP interface and two synchronization-module interfaces. Processing and object capacity are governed by the CPU hardware, firmware, PCS 7 engineering release and the separately selected System Expansion Card; this spare-part article is supplied without that card.

Configuration ControlVerify the complete article number, installed rack, power, interfaces, software, wiring and lifecycle requirement before ordering.

02Specs

Manufacturer Siemens
Article Number 6ES7410-5HX08-0AB0
Product Designation CPU 410-5H
System Application S7-400, S7-400H and engineered S7-400F/FH systems
Hardware Functional Status 2
Firmware Version V8.3
Processor System 450 MHz multi-processor architecture
Integrated Interfaces 2 PROFINET, 1 PROFIBUS DP, 2 synchronization-module interfaces
Maximum Work Memory 32 MB, depending on System Expansion Card
Integrated RAM Load Memory Up to 48 MB
Process-Object Capacity Approximately 100 to 2600, card-dependent
System Expansion Card Not included
Typical Power Loss 10 W
Environmental Design Conformal coating; operation up to 70 degrees C
Commercial Status Active product

03Features

Key Functions

  • High-availability CPU architecture supports process-automation systems configured as S7-400H.
  • Two integrated PROFINET interfaces and one PROFIBUS DP interface connect distributed automation networks.
  • Two synchronization-module interfaces support the documented redundant CPU coupling.
  • The System Expansion Card defines the usable process-object scale and memory level for the application.
  • Conformal coating and operation up to 70 degrees C support the documented environmental design.
  • The CPU can be used in engineered safety-related F/FH solutions only with the required software, licenses, hardware and validation workflow.

Product Identity

  • Manufacturer: Siemens
  • Model: 6ES7410-5HX08-0AB0
  • Product Type: SIMATIC CPU 410-5H process-automation central processing unit
  • Status: Active product; supplied without System Expansion Card

04Applications

  • SIMATIC PCS 7 process-automation systems using CPU 410-5H hardware.
  • High-availability S7-400H stations requiring synchronized controller pairs.
  • Process plants combining PROFINET and PROFIBUS DP field architectures.
  • Spare-part replacement where the existing System Expansion Card and project entitlement are verified.
  • Engineered F/FH systems with the required safety software, configuration and acceptance procedure.
  • Modernization planning where installed firmware, system version and process-object capacity must be preserved.

05Lifecycle

  • Siemens identifies the exact CPU article as an active product and describes it for spare-part use.
  • The article is supplied without a System Expansion Card; determine the required card and process-object capacity separately.
  • Confirm PCS 7 and STEP 7 engineering support for hardware status 2 and firmware V8.3 before installation.
  • Back up the complete automation project and record firmware, licenses, expansion card, synchronization modules and network addresses.
  • After replacement, validate redundancy, all networks, process objects, alarms, archive paths, safety functions where applicable and the complete process sequence.

06FAQ

What is Siemens 6ES7410-5HX08-0AB0?

It is the SIMATIC CPU 410-5H process-automation controller for S7-400 and high-availability S7-400H system architectures.

Which integrated interfaces are provided?

The CPU provides two PROFINET interfaces, one PROFIBUS DP interface and two synchronization-module interfaces.

Is a System Expansion Card included?

No. This article is supplied without a System Expansion Card, which must be matched to the required process-object capacity.

How much work memory is available?

The maximum is 32 MB, with the usable level determined by the selected System Expansion Card.

Can the CPU be used for fail-safe applications?

It can be part of an appropriately engineered S7-400F/FH system, but the required safety software, licensing, hardware configuration and validation are mandatory.

What must be tested after replacement?

Verify firmware and project compatibility, the expansion card, synchronization, redundancy, PROFINET and PROFIBUS communication, diagnostics and all process functions.
