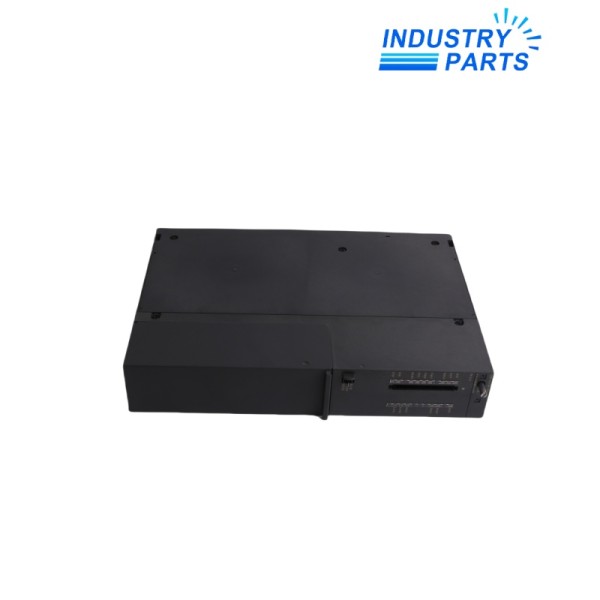

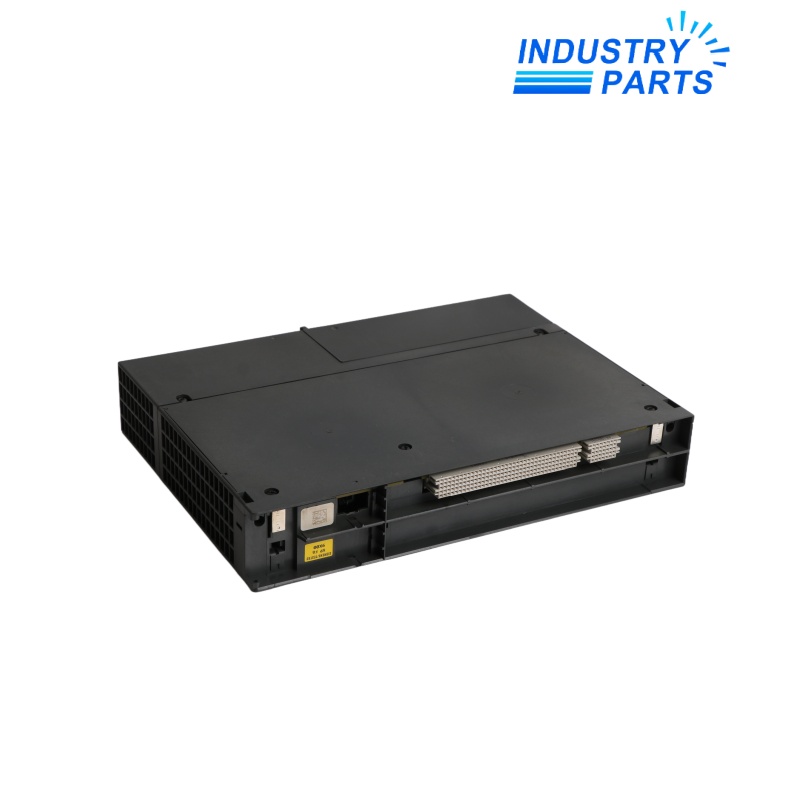

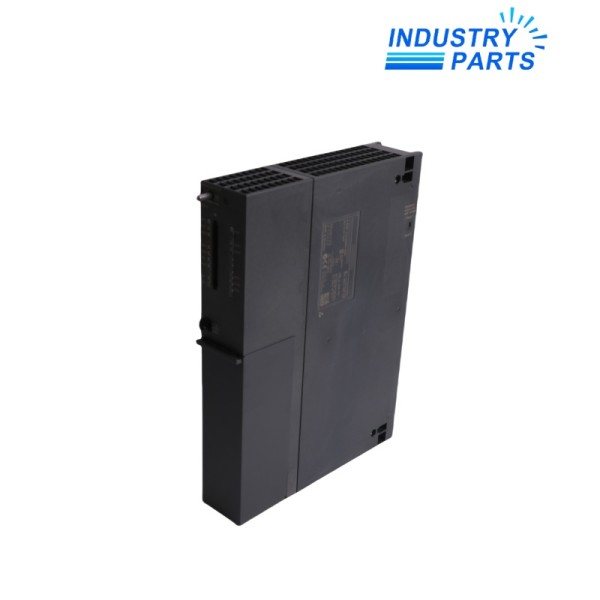

Siemens 6ES7414-5HM06-0AB0 SIMATIC S7-400H CPU 414-5H PN/DP
01Product Profile
Siemens 6ES7414-5HM06-0AB0 is the CPU 414-5H PN/DP for SIMATIC S7-400H and appropriately engineered S7-400F/FH systems. It provides 4 MB of work memory, divided into 2 MB for program and 2 MB for data, plus one MPI/DP interface, one additional DP interface, one PROFINET interface and two synchronization-module interfaces. The CPU is intended for paired high-availability operation, making partner hardware, firmware V6.0, synchronization links and the complete STEP 7 project essential compatibility controls.
02Technical Data
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7414-5HM06-0AB0 |
| Product Designation | CPU 414-5H PN/DP |
| Automation System | SIMATIC S7-400H / engineered S7-400F/FH |
| Hardware Functional Status | 1 |
| Firmware Version | V6.0 |
| Work Memory | 4 MB total |
| Program / Data Memory | 2 MB / 2 MB |
| Integrated Interfaces | 1 MPI/DP, 1 DP, 1 PROFINET, 2 synchronization-module interfaces |
| Engineering Support | STEP 7 V5.5 SP2 with HF1 or higher |
| Memory Card Capacity | Flash or RAM card up to 64 MB |
| Typical 5 V Backplane Current | 1.6 A |
| Maximum 5 V Backplane Current | 1.9 A |
| Typical Power Loss | 7.5 W |
| Commercial Status | Active product |
03System Role
Controller Function
- Operates as one controller of a redundant S7-400H CPU pair.
- Coordinates central modules and distributed devices over the configured PROFINET and PROFIBUS networks.
- Maintains synchronization and defined switchover behavior with the compatible partner CPU.
- Provides standard and, where engineered, fail-safe processing for process-automation applications.
- Uses the memory card, firmware, H parameters and STEP 7 project as controlled parts of the system configuration.
Key Capabilities
- High-availability CPU design supports synchronized paired operation in an S7-400H system.
- Four megabytes of work memory are divided equally between program and data areas.
- Integrated PROFINET, MPI/DP and DP interfaces provide multiple automation-network paths.
- Two synchronization-module interfaces support the documented H-system coupling.
- Flash or RAM memory cards up to 64 MB support the configured load-memory requirement.
- The CPU can support an engineered S7-400F/FH solution when the required safety software, hardware and validation are applied.
04Compatibility
- Use a compatible CPU partner with matching article requirements, hardware status and firmware V6.0.
- Verify both synchronization modules, fiber connections, H parameters and redundant rack arrangement.
- Use STEP 7 V5.5 SP2 with HF1 or a later officially supported engineering environment.
- Confirm MPI/DP, separate DP and PROFINET addresses, bus parameters, device names and network redundancy.
- Match the flash or RAM memory card to the project and the documented maximum capacity.
- For F/FH applications, retain every safety license, F-I/O parameter, signature, proof-test record and acceptance document.
05Applications
- High-availability process-control stations using paired CPU 414-5H controllers.
- S7-400H systems combining PROFINET and PROFIBUS DP distributed I/O.
- Engineered S7-400F/FH installations requiring redundant and fail-safe processing.
- Service replacement with verified firmware, partner CPU, synchronization modules and memory card.
- Process plants requiring controlled CPU switchover and redundant communication paths.
- Lifecycle planning for active S7-400H systems where project continuity and spare compatibility are critical.
06FAQ
What is Siemens 6ES7414-5HM06-0AB0?
It is the active SIMATIC S7-400H CPU 414-5H PN/DP for paired high-availability automation systems.
How much work memory does it provide?
The CPU has 4 MB total, divided into 2 MB for the program and 2 MB for data.
Which interfaces are integrated?
It provides one MPI/DP interface, one additional DP interface, one PROFINET interface and two synchronization-module interfaces.
Which engineering version is required?
The official technical data specifies STEP 7 V5.5 SP2 with HF1 or a higher supported version.
Can it be used for an F/FH system?
Yes, when the complete safety hardware, software, licensing, PROFIsafe configuration and validation process are correctly engineered.
What must be tested after replacement?
Verify partner matching, synchronization, H-system switchover, all PROFINET and PROFIBUS paths, memory-card loading, diagnostics and any required safety acceptance tests.
