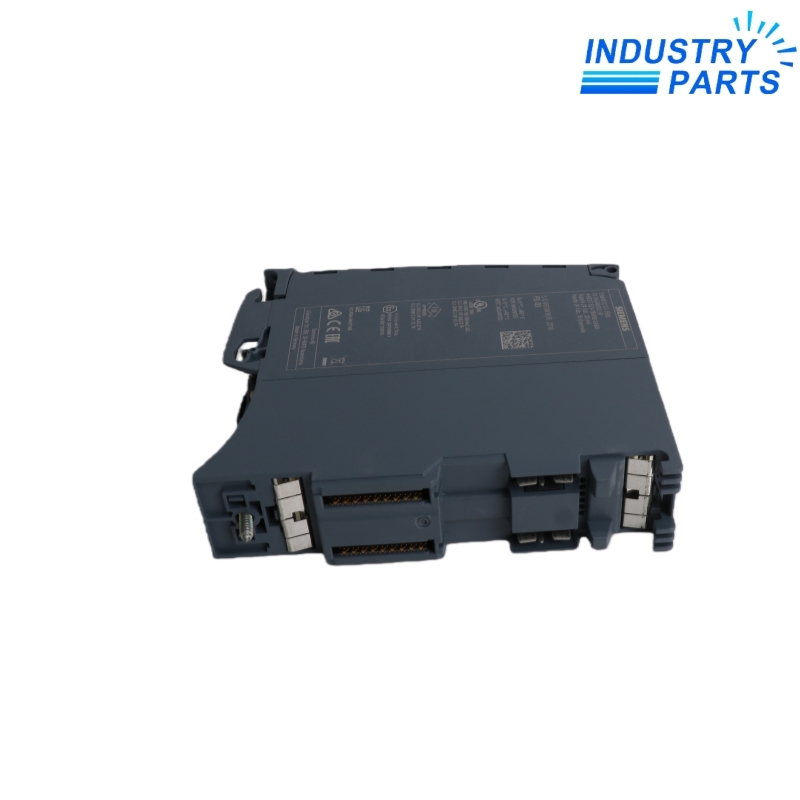

Siemens 6ES7521-1BH00-0AB0 High-Feature Digital Input Module
A diagnostics-capable SM 521 input module for fast 24 V DC signals and selected counter duties.
Key Information
6ES7521-1BH00-0AB0 is a high-feature digital input module for SIMATIC S7-1500 and ET 200MP configurations. It combines standard discrete acquisition with parameterizable timing, diagnostic and event functions.
Two selected inputs can be configured for counter operation, allowing the module to handle suitable pulse tasks without a separate basic counter card.
Functions
- Parameterizable input filtering for adapting signal response to field-device behavior.
- Diagnostic reporting and hardware interrupts for controller event handling.
- Counter mode with gate control and process-value evaluation on supported channels.
- Module Shared Input capability for suitable controller configurations.
- Firmware update and identification data support through the automation system.
Specifications
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7521-1BH00-0AB0 |
| Product Family | SM 521 Digital Input Modules |
| Type Designation | DI 16x24VDC HF |
| Digital Inputs | 16, one group of 16 |
| Counter Inputs | Two usable as counters |
| Maximum Counting Frequency | 6 kHz |
| Input Characteristic | IEC 61131 Type 3, P-reading |
| Input Delay Range | 0.05 to 20 ms |
| Rated Supply | 24 V DC |
| Typical Power Loss | 2.6 W |
| Firmware | V2.2.0 |
| Product Status | Active |
Installation
- Order the 40-pole front connector separately in screw-terminal or push-in form.
- Assign the module to the correct slot in the S7-1500 or ET 200MP hardware configuration.
- Match field-sensor wiring, reference potential and shielding to the selected input behavior.
- Download the parameter set and verify channel diagnostics before enabling machine logic.
Lifecycle
- Maintain the project archive and module firmware baseline with the machine documentation.
- A replacement should preserve input addresses, interrupt assignments and counter parameters.
- Use Siemens firmware and hardware compatibility information before changing functional status.
FAQ
Which front connector must be ordered for 6ES7521-1BH00-0AB0?
Choose the Siemens 40-pole S7-1500 front connector in the terminal technology required by the cabinet standard.
Can every input on 6ES7521-1BH00-0AB0 be used as a high-speed counter?
No. Counter operation is limited to the designated channels and must be configured in the controller project.
Can 6ES7521-1BH00-0AB0 replace a standard-feature SM 521 without review?
No. Compare addresses, diagnostics, interrupts, connector coding and project parameters before substitution.
What should be backed up before exchanging 6ES7521-1BH00-0AB0?
Preserve the hardware configuration, channel parameters, tag mapping, interrupt logic and counter settings.
How should intermittent field signals on 6ES7521-1BH00-0AB0 be investigated?
Review sensor voltage, reference potential, wiring quality and the configured input filter before changing hardware.
What commissioning evidence is useful for 6ES7521-1BH00-0AB0?
Record channel-state tests, diagnostic reactions, interrupt behavior and any configured counter comparison.
