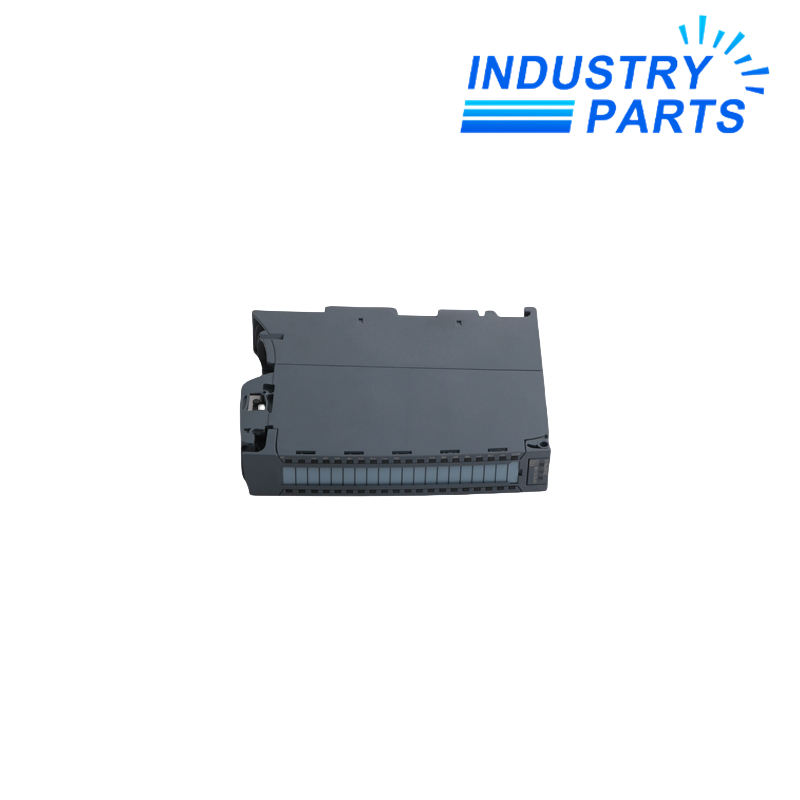

Siemens 6ES7521-1BH10-0AA0 SIMATIC S7-1500 DI 16x24 V DC BA Input Module
A basic S7-1500 digital input module with sixteen 24 V DC channels, a typical 3.2 ms input delay and an included push-in front connector.
Technical Summary
PRODUCT CONTEXT6ES7521-1BH10-0AA0 is the Siemens SIMATIC S7-1500 DI 16x24 V DC BA signal module. Its sixteen channels are arranged as one group of sixteen and meet Type 3 input characteristics under IEC 61131.
Siemens publishes a typical input delay of 3.2 ms. The delivery includes the push-in front connector, so a quotation and replacement record should distinguish the complete module package from nearby S7-1500 input modules that require a separately ordered connector.
Specifications
CONTROLLED DATASIMATIC S7-1500 digital input modules
DI 16x24 V DC BA
16
1 group of 16
24 V DC
Type 3 according to IEC 61131
3.2 ms
Push-in connector included
PM300 active product
Features
FUNCTIONAL DISTINCTIONSCompact sixteen-point density
Places sixteen documented 24 V DC signals in one input group.
Basic input profile
The BA execution provides the published standard input behavior without importing HF-module functions.
Type 3 conformity
Published input characteristics support controlled matching with field switching devices.
Connector included
The push-in front connector remains part of the delivered module package.
Compatibility
SELECTION BOUNDARIESRack and project
Confirm the S7-1500 station slot and TIA Portal hardware catalog support.
Field supply
Check 24 V DC source, commons, group protection and conductor arrangement.
Module selection
Do not substitute the 32-channel or HF execution solely because the enclosure is similar.
Replacement
SERVICE WORKFLOWDocument
Record 6ES7521-1BH10-0AA0, slot, front-connector identity, channel map and 24 V common arrangement.
Transfer
Isolate the input supply and move the keyed front connector under the approved maintenance procedure.
Test
Confirm module diagnostics and simulate every active input through the machine safety sequence.
FAQ
CUSTOMER DECISION SUPPORTDoes 6ES7521-1BH10-0AA0 include its front connector?
Yes. Siemens lists a push-in front connector in the delivery package.
What should accompany a 6ES7521-1BH10-0AA0 enquiry?
Provide the complete MLFB, rack slot, connector photographs, input schedule and project version.
Can a 32-channel S7-1500 input module replace 6ES7521-1BH10-0AA0?
Not directly; channel count, grouping, connector and project configuration are different.
Which timing value matters for 6ES7521-1BH10-0AA0?
Siemens publishes a typical 3.2 ms input delay for this BA execution.
What closes a 6ES7521-1BH10-0AA0 replacement record?
Document correct hardware recognition and verified transitions, diagnostics and interlocks for all used inputs.
