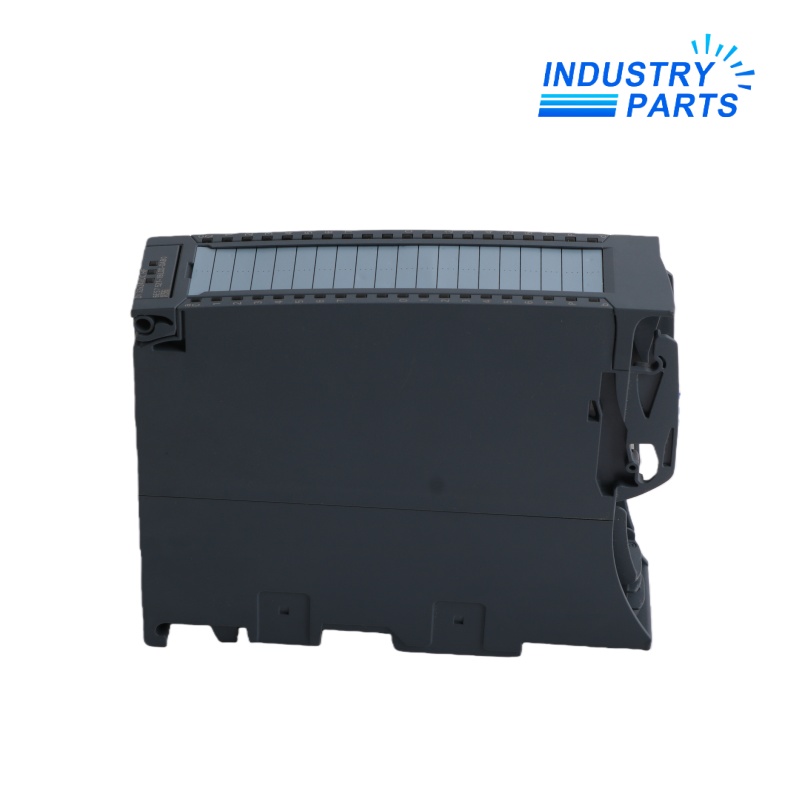

Siemens 6ES7521-1BL00-0AB0 SIMATIC S7-1500 DI 32x24 V DC HF Input Module
A high-feature S7-1500 input module with thirty-two 24 V DC channels, selectable input delay, diagnostics and two counter-capable inputs.
Technical Summary
PRODUCT CONTEXT6ES7521-1BL00-0AB0 is the Siemens SIMATIC S7-1500 DI 32x24 V DC HF module. It provides thirty-two Type 3 digital inputs arranged in two groups of sixteen and supports input-delay settings from 0.05 ms to 20 ms.
Two inputs can be used as counters. Siemens also publishes diagnostics and hardware-interrupt functions for the HF execution. The front connector is ordered separately, making connector identity and project configuration essential parts of a controlled spare request.
Specifications
CONTROLLED DATASIMATIC S7-1500 digital input modules
DI 32x24 V DC HF
32
2 groups of 16
24 V DC
Type 3 according to IEC 61131
0.05 ms to 20 ms
2
Supported
Supported
PM300 active product
Features
FUNCTIONAL DISTINCTIONSHigh channel density
Provides thirty-two monitored 24 V DC input paths in one signal module.
Adjustable response
The published input-delay range supports deliberate noise and response-time selection.
Two counter inputs
Two channels may be configured for counting when supported by the project.
HF diagnostic profile
Diagnostics and hardware interrupts distinguish this execution from basic modules.
Compatibility
SELECTION BOUNDARIESFront connector
Confirm the separately ordered connector and its complete conductor assignment.
Project configuration
Retain channel delay, diagnostic, interrupt and counter settings in the TIA Portal project.
Power grouping
Verify both sixteen-channel groups, commons and protection before exchange.
Replacement
SERVICE WORKFLOWArchive
Save 6ES7521-1BL00-0AB0, project, slot, front-connector label and every channel parameter.
Exchange
Isolate both input groups and preserve the keyed connector and conductor order.
Commission
Test standard inputs, both counter-capable channels, diagnostics and configured hardware interrupts.
FAQ
CUSTOMER DECISION SUPPORTWhat distinguishes 6ES7521-1BL00-0AB0 from the BA input module?
The HF execution has 32 inputs, adjustable delay, diagnostics, hardware interrupts and two counter-capable channels.
Is the front connector included with 6ES7521-1BL00-0AB0?
No. Siemens lists the front connector as a separate order item.
What should accompany a 6ES7521-1BL00-0AB0 quotation?
Provide the full MLFB, connector identity, project version, channel map and counter or interrupt settings.
Can the two counter inputs be treated like ordinary inputs?
Their use is project controlled; retain the actual configuration rather than assuming a mode.
How should 6ES7521-1BL00-0AB0 be accepted?
Verify all used channels plus configured counters, diagnostics and hardware interrupts.
