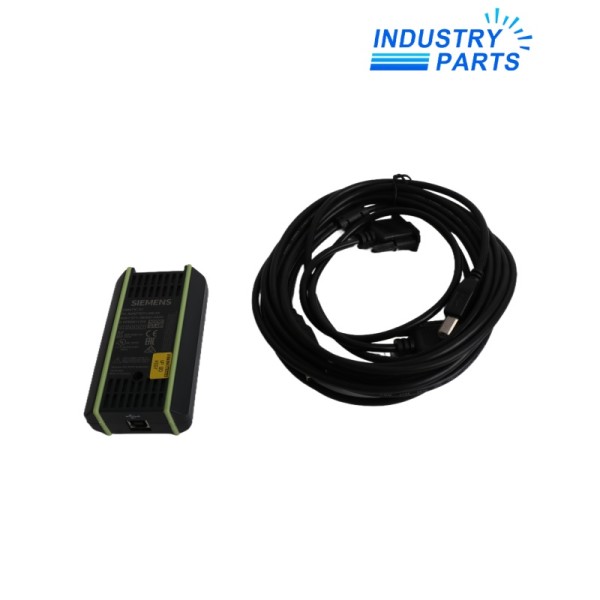

Siemens 6GK1571-0BA00-0AA0 PC Adapter USB A2
A USB-powered adapter connecting a PG, PC or notebook to SIMATIC S7 over PROFIBUS or MPI.
Product Overview
6GK1571-0BA00-0AA0 is the Siemens PC Adapter USB A2. It provides an engineering connection from a USB-equipped PG, PC or notebook to SIMATIC S7 systems through PROFIBUS or MPI.
The adapter uses one 9-pin Sub-D RS-485 connection and one standard USB-B interface. It requires no optional external supply because operating power comes from the USB connection.
Compatibility planning must include the engineering computer, supported operating system and Siemens software release. The adapter establishes the physical communication path but does not replace project backups or access-control procedures.
Performance
SIMATIC service link
Connects engineering hardware to compatible S7 PROFIBUS or MPI networks.
Bus-rate support
Operates across the documented PROFIBUS transmission-rate range.
USB-powered operation
Draws operating power directly from the USB port.
Port diagnostics
Provides documented port-diagnostic functionality for service work.
Technical Details
- Manufacturer
- Siemens
- Exact model
- 6GK1571-0BA00-0AA0
- Product designation
- PC Adapter USB A2
- PROFIBUS / MPI connector
- 9-pin Sub-D socket, RS-485
- USB interface
- USB 2.0, standard-B socket
- USB current consumption
- 0.2 A
- Power loss
- 1 W
- Degree of protection
- IP20
- Operating temperature
- 0 to 60 °C
- Dimensions (W × H × D)
- 58 × 26 × 105 mm
- Catalog net weight
- 0.480 kg including listed supply scope
- Lifecycle
- Active product
About IndustryParts
https://www.industryparts.com/The adapter is supplied with its engineering context
IndustryParts keeps the exact Siemens article, cable set, target bus and software evidence together so the service connection can be reviewed before use.
System Integration
Prepare the engineering station
Confirm the supported Windows and Siemens software release before connecting to the plant network.
Identify the bus interface
Record PROFIBUS or MPI address, transmission rate, connector and termination state.
Test read access first
Establish communication and preserve the original project before any authorized write or download operation.
Applications
SIMATIC S7 commissioning
Providing a local engineering path to PROFIBUS or MPI equipment.
Maintenance diagnostics
Reading compatible controller and network information from a service computer.
Legacy interface support
Replacing the earlier 6ES7972-0CB20-0XA0 adapter where Siemens identifies this successor.
FAQ
Which cables are included with 6GK1571-0BA00-0AA0?

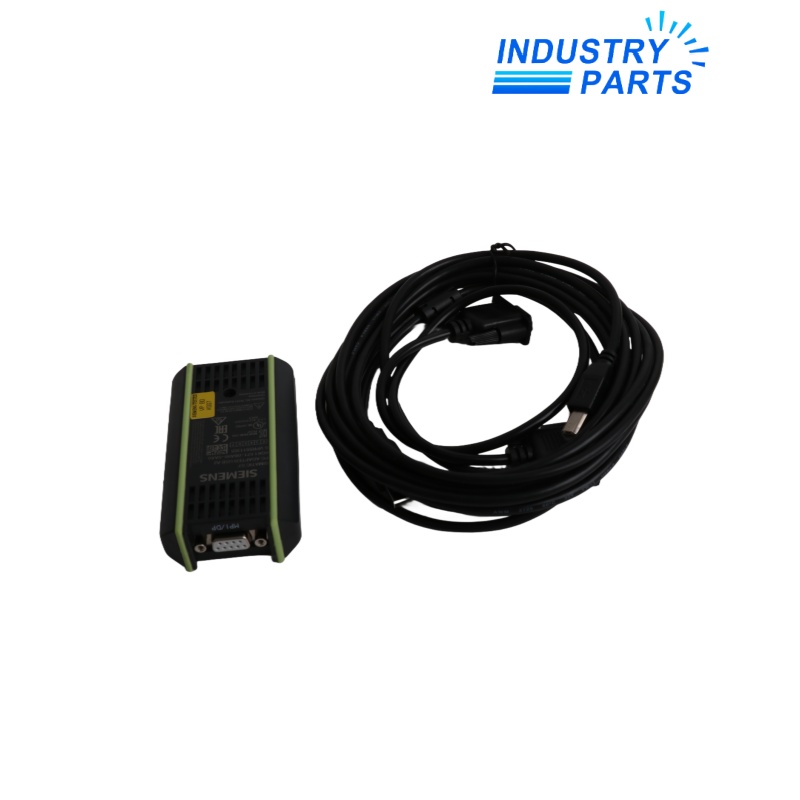

Siemens lists a 5 m USB cable and a 0.3 m MPI cable in the product description.
Does 6GK1571-0BA00-0AA0 require an external power supply?
No. It is powered with 5 V directly from the USB interface.
What must be checked before using 6GK1571-0BA00-0AA0 on PROFIBUS?
Confirm engineering-software support, the bus address, transmission rate, cable, connector termination and authorized access.
Is 6GK1571-0BA00-0AA0 the Siemens successor to the older PC Adapter USB?
Siemens identifies it as the successor to 6ES7972-0CB20-0XA0.
What evidence should accompany a 6GK1571-0BA00-0AA0 service kit?
Record adapter identity, cable set, proven software and OS versions, and the network procedure for the target plant.
