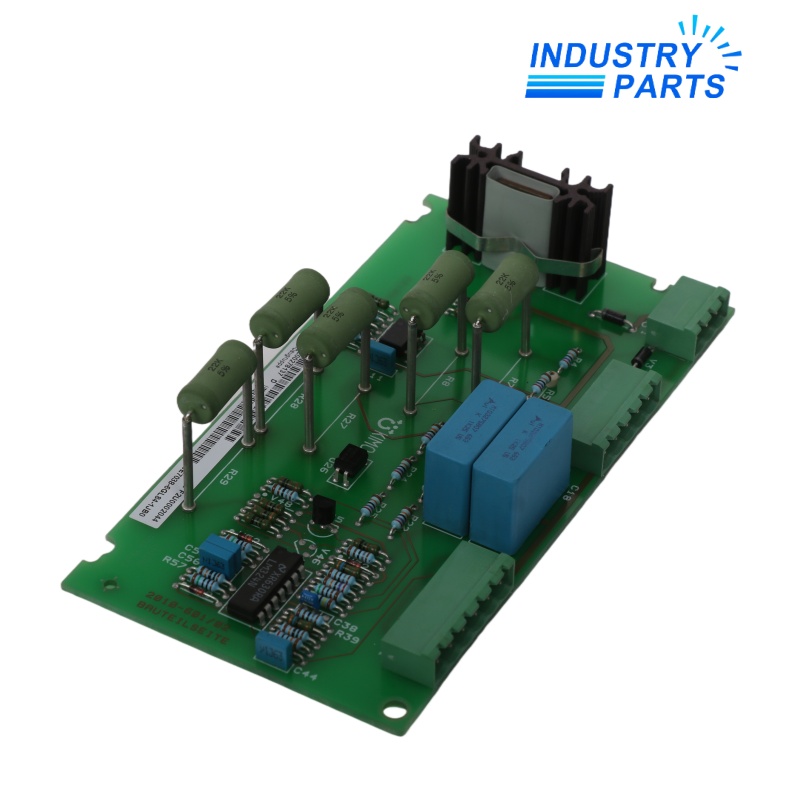

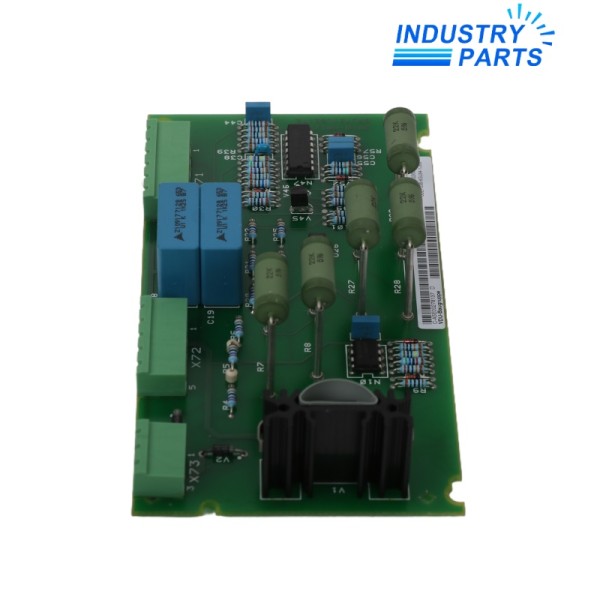

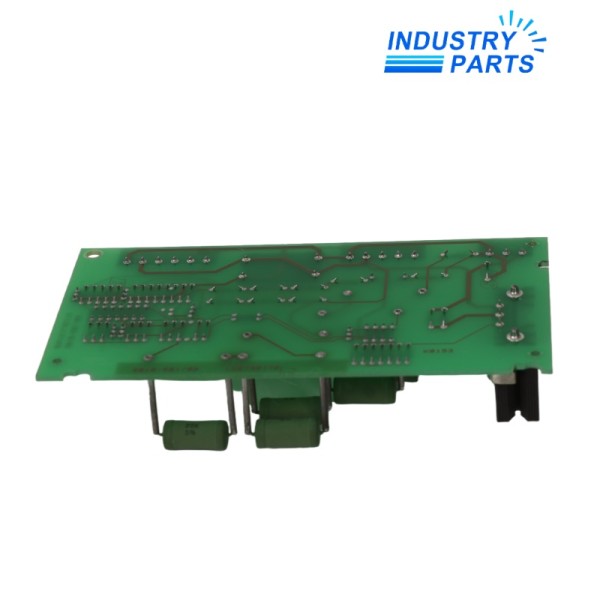

Siemens 6SE7038-6GL84-1JB0 VDU Voltage Divider Module
A compact Siemens VDU service module whose compatibility is governed by the complete converter and board record.
Key Information
6SE7038-6GL84-1JB0 is the Siemens spare-part voltage divider module VDU for the SIMOVERT MASTERDRIVES service environment. The article is a specific electronic assembly, not a generic voltage-divider board.
Siemens records the product as cancelled and points legacy equipment toward migration to low-voltage SINAMICS. No standalone converter voltage or power rating is assigned by the public product record.
A controlled replacement therefore requires the complete converter MLFB, installed board labels, connector population and service documentation. Ratings from nearby 6SE7038 articles must not be transferred to this execution.
Functions
Voltage-divider service role
Provides the documented VDU assembly within its approved converter context.
Board-level traceability
Maintains the complete 6SE article through repair and receiving.
Legacy compatibility control
Requires host and connector evidence before a spare is accepted.
Migration planning
Supports an interim service decision while the lifecycle path to newer drive technology is assessed.
Specifications
- Manufacturer
- Siemens
- Exact model
- 6SE7038-6GL84-1JB0
- Manufacturer description
- Voltage divider module VDU
- Product class
- Made-to-order engineered spare
- Packaging dimensions
- 8.50 × 15.50 × 3.50 cm
- Country of origin
- Germany
- UPC
- 662643431049
- Commodity code
- 85049090
- RoHS status
- Manufacturer record states compliant
- Selection boundary
- Exact board, connector map and host converter
About IndustryParts
https://www.industryparts.com/A cancelled VDU is matched by evidence, not appearance
IndustryParts retains the Siemens article, converter MLFB, board photographs and requested quantity as one controlled enquiry record.
Installation
Capture the installed identity
Photograph both board faces, labels, connectors, position and converter rating plate before removal.
Use electronic handling controls
Protect the VDU from electrostatic discharge and keep the original assembly available for comparison.
Commission in the host system
Restore approved connections and verify diagnostics and converter behavior under the Siemens service procedure.
Lifecycle
Cancelled-product record
Maintain a qualified spare and host-specific interchangeability evidence.
Migration decision
Assess the Siemens low-voltage SINAMICS migration path separately from immediate board replacement.
Failure evidence
Retain fault codes, supply observations and photographs for repair analysis.
Related Models
FAQ
What host information is required for 6SE7038-6GL84-1JB0?
Provide the complete converter MLFB, rating plate, installed VDU photographs, connector map and hardware release.
Can a similar-looking 6SE7038 board replace 6SE7038-6GL84-1JB0?
No. Function, connector population, release and host approval must be verified for the exact article.
Why are no converter voltage or power ratings assigned to 6SE7038-6GL84-1JB0 here?
Siemens identifies the VDU spare but does not publish standalone host ratings for this board record.
How should the cancelled status of 6SE7038-6GL84-1JB0 be handled?
Keep a verified spare strategy and evaluate the migration path without assuming a newer drive is a drop-in board replacement.
What closes a 6SE7038-6GL84-1JB0 repair?
Exact label confirmation, correct connector restoration, stable diagnostics and supervised converter testing complete the record.
