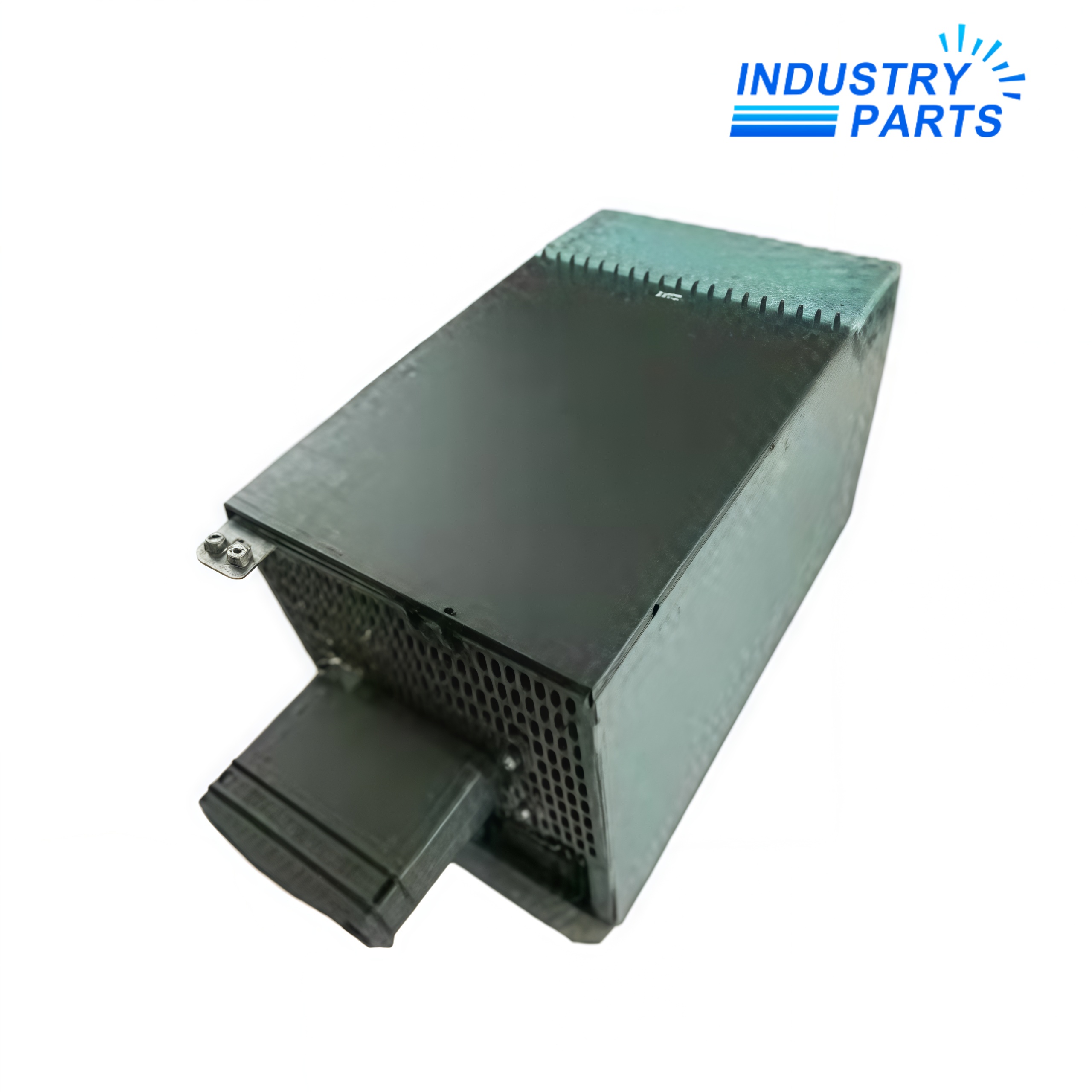

Siemens 6SL3120-1TE28-5AA3 SINAMICS S120 85 A Single Motor Module
Active 85 A internal-air-cooled module with 141 A maximum current in a 200 mm housing.
01Product Profile
Siemens 6SL3120-1TE28-5AA3 is the active 85 A Single Motor Module in the SINAMICS S120 booksize range. It delivers 68 A base-load current, 110 A S6 current and 141 A maximum current. The 200 mm module uses an M8 motor terminal, a 1,880 µF DC-link capacitance and 0.044 m³/s internal cooling airflow. Its engineering data is specific to the 85 A article and must not be scaled from the 60 A or 132 A modules.
02Technical Data
| Manufacturer | Siemens |
|---|---|
| Article Number | 6SL3120-1TE28-5AA3 |
| Product Family | SINAMICS S120 |
| Construction | Booksize, internal air cooling |
| DC Link / Electronics Supply | 510 to 720 V DC / 24 V DC |
| Rated / Base-Load Current | 85.0 A / 68.0 A |
| S6 / Maximum Current | 110.0 A / 141.0 A |
| Type Rating at IN / IH | 46.0 kW / 37.0 kW |
| DC-Link Current / Capacitance | 102.0 A / 1,880 µF |
| Motor Connection | M8 bolt (X1), 2.5 to 95 mm² |
| Motor Cable Length | 100 m shielded; 150 m unshielded |
| Cooling-Air Requirement | 0.044 m³/s |
| Power Loss, Typical / Maximum | 0.77 kW / 0.79 kW |
| Protection / Dimensions | IP20; 200 x 380 x 270 mm |
| Lifecycle | Active product |
03System Role
Drive-System Function
- Provides an 85 A rated output for one high-current S120 axis.
- Supports 110 A S6 current and a 141 A maximum-current value.
- Uses an M8 power terminal for conductors up to 95 mm².
- Carries 1,880 µF of DC-link capacitance.
- Requires 0.044 m³/s cooling air in the 200 mm enclosure.
- Supports extended Safety Integrated functions and DRIVE-CLiQ integration.
Product Identity
- Manufacturer: Siemens
- Model: 6SL3120-1TE28-5AA3
- Product Type: SINAMICS S120 booksize Single Motor Module
- Status: Active product
04Compatibility
- Use only where the motor and duty profile fit 85 A rated, 68 A base-load and 141 A maximum current.
- Provide conductor sizing and terminal hardware appropriate for the M8 X1 connection.
- Confirm 102 A DC-link current in external-connection and shared-bus calculations.
- Check firmware, motor model, encoder, brake control and DRIVE-CLiQ topology.
- Maintain 0.044 m³/s airflow and account for 0.79 kW maximum loss.
- Complete Safety Integrated acceptance testing after power-section replacement.
05Applications
Engineering Use
- High-current motor axes requiring the documented 85 A continuous rating.
- Axes whose S6 duty reaches up to 110 A within Siemens operating conditions.
- Cabinets engineered for a 200 mm module, M8 power connection and 15 kg component weight.
- Long motor-cable applications within the 100 m shielded limit.
- Multi-axis S120 systems with DC-link current and thermal capacity sized for this module.
06FAQ
Which maximum-current value belongs to the 85 A AA3 module?
The exact Siemens data sheet specifies 141.0 A.
What motor-terminal size is used?
The module uses an M8 bolted X1 connection.
Which conductor range is documented?
Siemens lists 2.5 to 95 mm², corresponding to 14 to -2 AWG in the data sheet.
How much cooling air is required?
The official value is 0.044 m³/s.
What cabinet width must be reserved?
The module is 200 mm wide.
Is 6SL3120-1TE28-5AA3 a current product?
Yes. Siemens lists the 85 A AA3 article as active.
