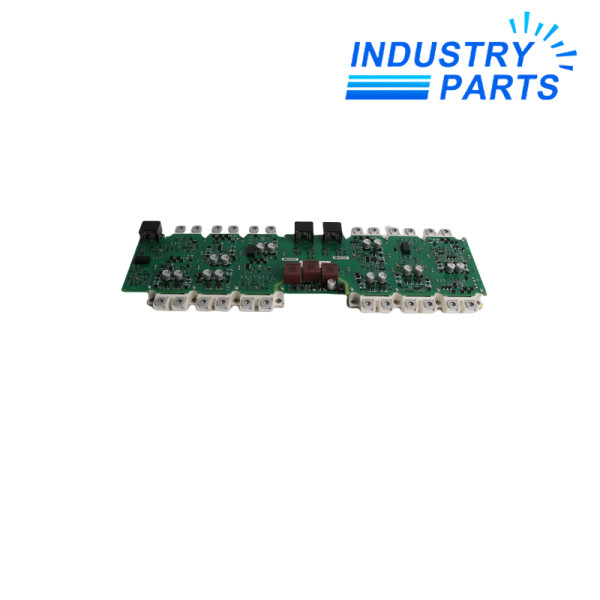

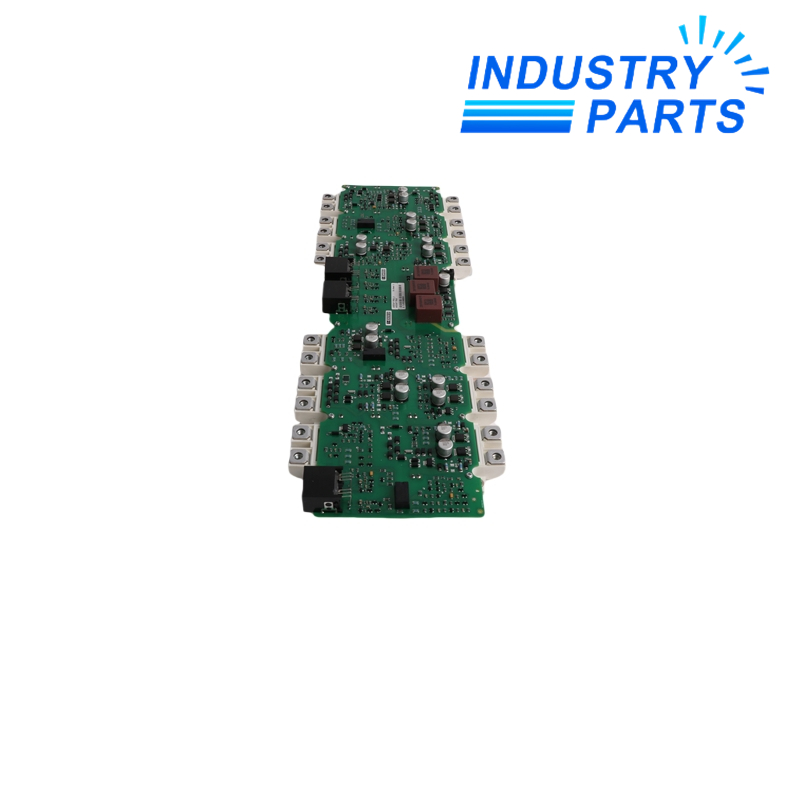

Siemens A5E36717803 Drive Service Material Reference
A Siemens A5E service reference requiring host-drive and hardware-revision confirmation before replacement.
Product Identification
A5E36717803 is a Siemens drive-service material reference. Public manufacturer information does not provide a complete independent specification set for this number, so it must remain tied to the original assembly label and host documentation.
A quotation should distinguish the exact board revision, host power section, connector arrangement and cooling execution rather than applying characteristics from nearby A5E367178xx references.
Engineering Data
| Manufacturer | Siemens |
|---|---|
| Material Reference | A5E36717803 |
| Product Context | Drive service component |
| Primary Selection Key | Original assembly label |
| Host Identification | Drive article, serial number and power-section position |
| Revision Evidence | Hardware index and secondary label codes |
| Electrical Data | Use host nameplate and applicable Siemens service documentation |
| Substitution Status | Requires documented confirmation |
Functions
- Maintains an exact service identity for controlled drive repair.
- Supports revision-aware quotation and replacement planning.
- Separates verified label facts from unsupported family assumptions.
- Requires host-level documentation before any interchange decision.
Applications
- Documented repair of the matching Siemens drive assembly.
- Service replacement where the original label and host records are available.
- Planned spare review for revision-controlled power equipment.
Lifecycle
- Retain high-resolution label photographs and removal records with the machine file.
- Archive the project, parameters, diagnostics and repair report.
- Reconfirm availability and approved substitution through Siemens service channels when the original reference changes.
FAQ
What evidence is essential before sourcing A5E36717803?
Provide the complete host article and serial number plus photographs of every A5E36717803 label, revision mark, connector and mounting point.
Can A5E36717803 be replaced by A5E36717808 because the numbers are close?
No. Neighboring material numbers can identify different board architectures and electrical classes; use only a documented Siemens cross-reference.
Which electrical rating should be entered for A5E36717803?
Use only the rating shown on the installed assembly and applicable Siemens documentation; do not infer it from other A5E references.
What repair records should accompany A5E36717803?
Keep the failure symptoms, diagnostic history, insulation checks, replaced components, test results and final host acceptance record.
Can A5E36717803 be installed without a host-drive backup?
Preserve the complete drive project and parameters before hardware work so commissioning can verify the restored system state.
What must be tested after an A5E36717803 exchange?
Follow the host-specific service process for supplies, communications, interlocks, diagnostics and controlled power-up before machine release.
