Triconex 9662-610 Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameTriconex 9662-610 Module
- Item NO.3462533
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandTriconex
- Creation Time2025-11-26

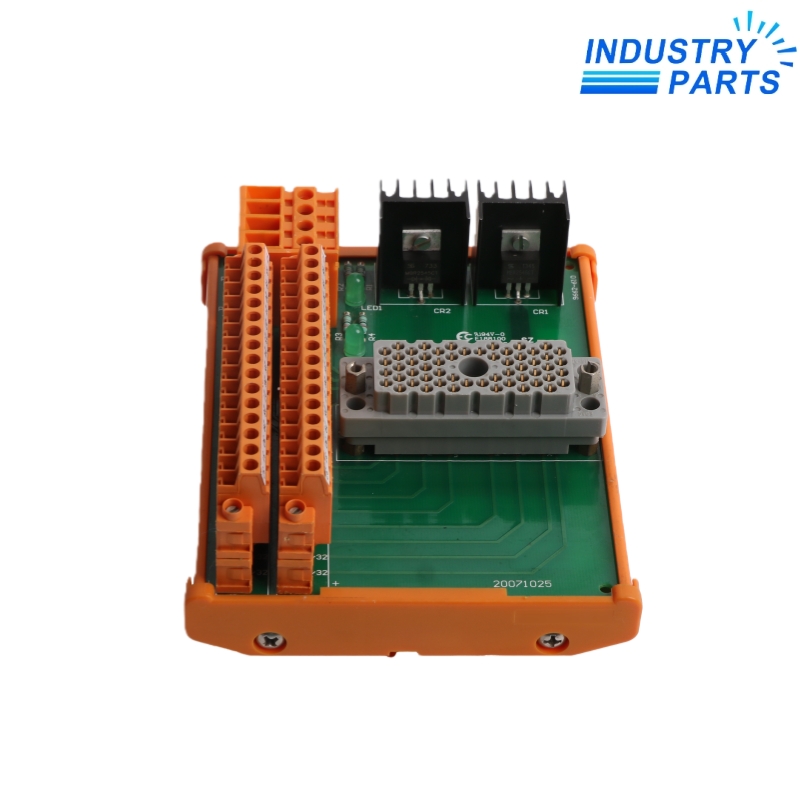

- Triconex 9662-610 16-point 24 VDC commoned digital output termination panel.
9662-610 · 24 VDC Commoned Digital Output Termination Panel
A 16-point commoned field termination panel for supported Triconex 24 VDC digital output modules.
Product Profile
Triconex 9662-610 is a field termination panel for 24 VDC commoned digital outputs. It provides 16 load termination points together with common PWR+ and PWR− connections for supported Tricon output modules.
The official field termination guidance specifies use with self-protected output modules. A 32-point output module uses two 9662-610 panels.
Technical Data
| Parameter | Official specification |
|---|---|
| Model | 9662-610 |
| Panel function | 24 VDC commoned digital output termination |
| Field points | 16 |
| Power connections | Commoned PWR+ and PWR− |
| Maximum total panel current | 16 A |
| Current limit when used with 3625 | 10 A maximum per panel |
| Module requirement | Use with self-protected modules only |
| Panels for a 32-point module | Two |
System Role
The panel separates field wiring from the digital output module connection and distributes the common 24 VDC supply to sixteen output load terminals. Protection and diagnostics remain functions of the selected Tricon output module.
Compatibility
| Supported module | Official description |
|---|---|
| 3624 | 16-point, 24 VDC commoned, supervised, optically isolated, self-protected TMR digital output |
| 3625 | 32-point, 24 VDC commoned, supervised/non-supervised, optically isolated, self-protected TMR digital output |
| 3664 / 3674 | 32-point, 24 VDC commoned, optically isolated, self-protected dual digital output |
For 32-point modules, two termination panels are required. Verify module revision, cable and termination drawing before replacement.
Applications
9662-610 terminates commoned 24 VDC output loads in Tricon safety and critical-control installations where the paired output module and project wiring call for this panel.
FAQ
How many field loads terminate on one panel?
One panel provides 16 load terminals.
Can one panel terminate a 32-point module?
No. Two panels are required.
What total current applies?
The panel rating is 16 A total; with module 3625, each panel is limited to 10 A.
Request Product Support
For model verification, availability and quotation support, contact our product manager.
Manager: Leonia | Email: sales@mvme.cn | Tel: +86 18030175807
